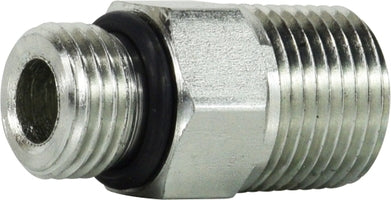

6401106 by Midland | Hydraulic O-Ring to Pipe Adapter | 5/8" Male O-Ring x 3/8" Male Pipe | Steel
If you are interested in this item please fill out the Contact Form below.
Contact Us
How can we help you?
Price, availability, and details—available upon request.
| Technical Info: | |||
|---|---|---|---|
| Crossover Series: | |||
|---|---|---|---|
| 6401 | F5X | 1264R | C3249 |
 |
|||
|---|---|---|---|
| Part Number | Male O-Ring Boss Size |
Male O-Ring Boss Thread (1) |
Male Pipe (2) |
| 640142 | 1/4" | 7/16-20 | 1/8" |
| 640144 (6401-4-4) |
1/4" | 7/16-20 | 1/4" |
| 640152 | 5/16" | 1/2-20 | 1/8" |
| 640164 (6401-6-4) |
3/8" | 9/16-18 | 1/4" |
| 640166 (6401-6-6) |
3/8" | 9/16-18 | 3/8" |
| 640184 | 1/2" | 3/4-16 | 1/4" |
| 640186 (6401-8-6) |
1/2" | 3/4-16 | 3/8" |
| 640188 (6401-8-8) |
1/2" | 3/4-16 | 1/2" |
| 6401812 | 1/2" | 3/4-16 | 3/4" |
| 6401106 | 5/8" | 7/8-14 | 3/8" |
| 6401108 (6401-10-8) |
5/8" | 7/8-14 | 1/2" |
| 6401126 | 3/4" | 1-1/16-12 | 3/8" |
| 6401128 (6401-12-8) |
3/4" | 1-1/16-12 | 1/2" |
| 64011212 (6401-12-12) |
3/4" | 1-1/16-12 | 3/4" |
| 64011612 | 1" | 1-5/16-12 | 3/4" |
| 64011616 (6401-16-16) |
1" | 1-5/16-12 | 1" |
| 64012016 | 1-1/4" | 1-5/8-12 | 1" |
| 64012020 (6401-20-20) |
1-1/4" | 1-5/8-12 | 1-1/4" |
| 6401-24-20 | 1-1/2" | 1-7/8-12 | 1-1/4" |
| 64012424 | 1-1/2" | 1-7/8-12 | 1-1/2" |
