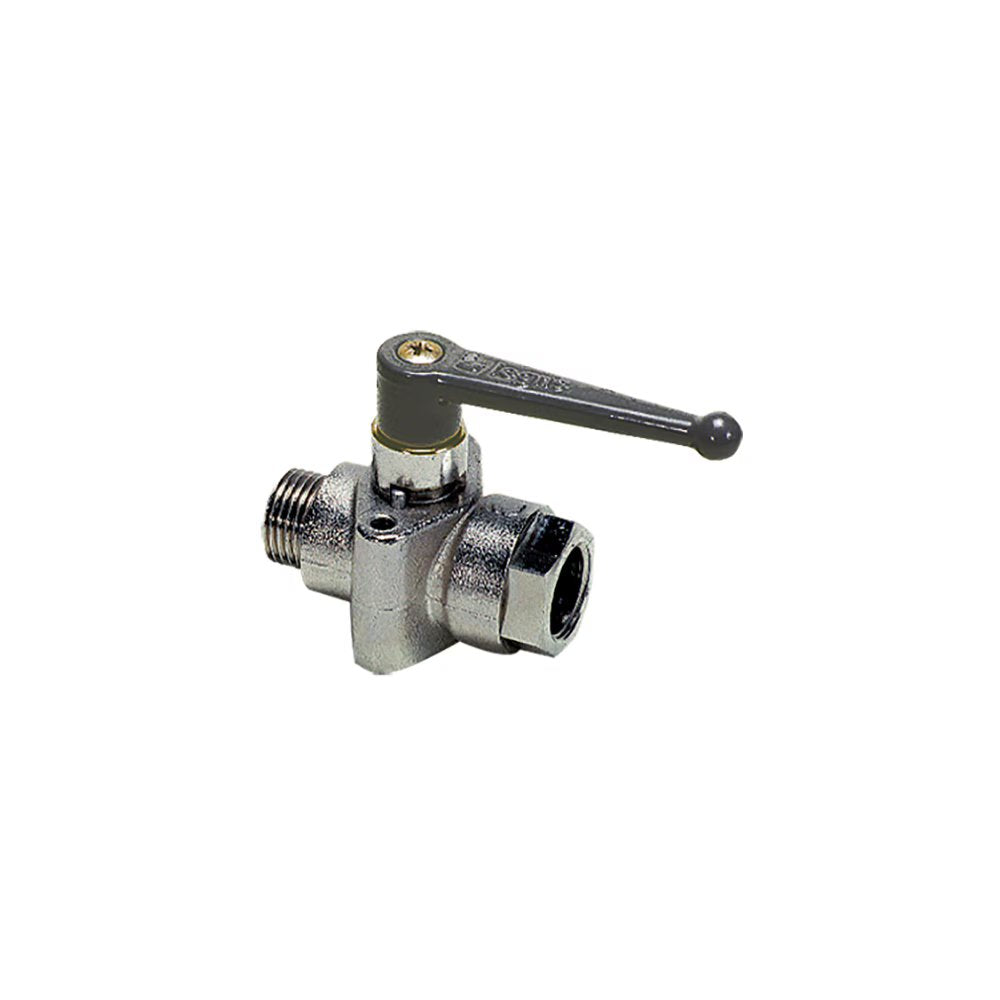

6401 04 10 by Parker | Legris In-Line Ball Valve for Screw Fixing | 1/8" Male BSPP Thread x 1/8" Female BSPP Thread | 14 mm Hex | Straight | Nickel-Plated Brass | Pack of 2

6401 04 10 by Parker | Legris In-Line Ball Valve for Screw Fixing | 1/8" Male BSPP Thread x 1/8" Female BSPP Thread | 14 mm Hex | Straight | Nickel-Plated Brass | Pack of 2

Sale price$193.38

by Parker Hannifin
Universal Series:6401 2/2 In-Line Ball Valve for Screw Fixing, Male/Female BSPP Thread

Package Quantity: 2 Units

Buy More, Save More!
Quantity Price Each
20–29 $181.78
30–59 $164.37
60+ $145.04
Discounts applied in cart/checkout.

Product Data:

Series:
  • 6401 Series
Shape:

Straight

Ends Configuration:
  • 1/8in Male BSPP
  • 1/8in Female BSPP
Technical Characteristics:
  • Compatible Fluids: Compressed air
  • Working Pressure: Vacuum up to 40 bar, depending on the model
  • Working Temperature: -20°C to +80°C
    up to -40°C with no handle operation
Advantages:
  • Automatic seal wear compensation
  • Vacuum resistance
  • Ease of operation
  • Short, repositionable and exchangeable handles
Regulations:
  • RoHS
  • PED
  • REACH
Component Materials:
  • Body: Nickel-plated brass
  • Stem: NBR
  • Stem seal: NBR
  • Seat seal: Graphite-impregnated polyamide
  • Ball: Nickel-Plated Polished Brass
  • Locking Nut: Nickel-plated brass
  • Wear-compensation seal: NBR
  • Lever: Treated Zamak
  • Lever fixing screw: Zinc-Plated Steel
Part Number Diameter Nominal (DN) C E E1 F G H1 H2 L L1 M N T Kg
6401 04 10 4 mm 1/8" 8 mm 7 mm 14 mm 18 mm 18 mm 30 mm 45 mm 25 mm 48 mm 25 mm 470 .127 Kg

Maximum working pressure: 40 bar

Parker Fluid System Connectors Division

Parker Fluid System Connectors Division delivers quality and service from design to delivery. Their engineers leverage advanced technology to create prototypes, refine designs, and improve manufacturing efficiencies, offering tailored solutions. ISO 9001 certified and focused on sustainability, they utilize recyclable materials and a brass chip recycling program to protect the environment and control costs. Flexible assembly, packaging, and shipping systems support diverse needs, including kitting and custom labeling, ensuring high-quality products and outstanding customer support.
