BS064 - #64 Beltservice 3 Ply CP30 Black Steepgrade x FS Conveyor Belt

$10.00 IS FOR A PRODUCT SAMPLE
-or-
REQUEST A FREE BELT ASSEMBLY QUOTE

Use [Add to cart] to purchase a sample piece of belting which will put a $10 credit on your account if you decide to order your belt from BeltSmart. Limit 3 per customer or $30.00 total. Product samples are shipped priority mail.

Use [Request a Laced or Endless Belt Quote] to have our customer service work up a quote with mechanical lace, open-ended, or vulcanized endless. Our team of belt specialists are on hand during regular business hours to answer questions and help with any questions you may have.

If you are unsure what your belting is and would like us to identify it, please send us a sample of the belting to the address given in our [about us] page. Include name, company, phone, address and dimensions to 1/8" for width and length.

Applications:
Incline/Decline Conveying Slider Bed Applications
Features:

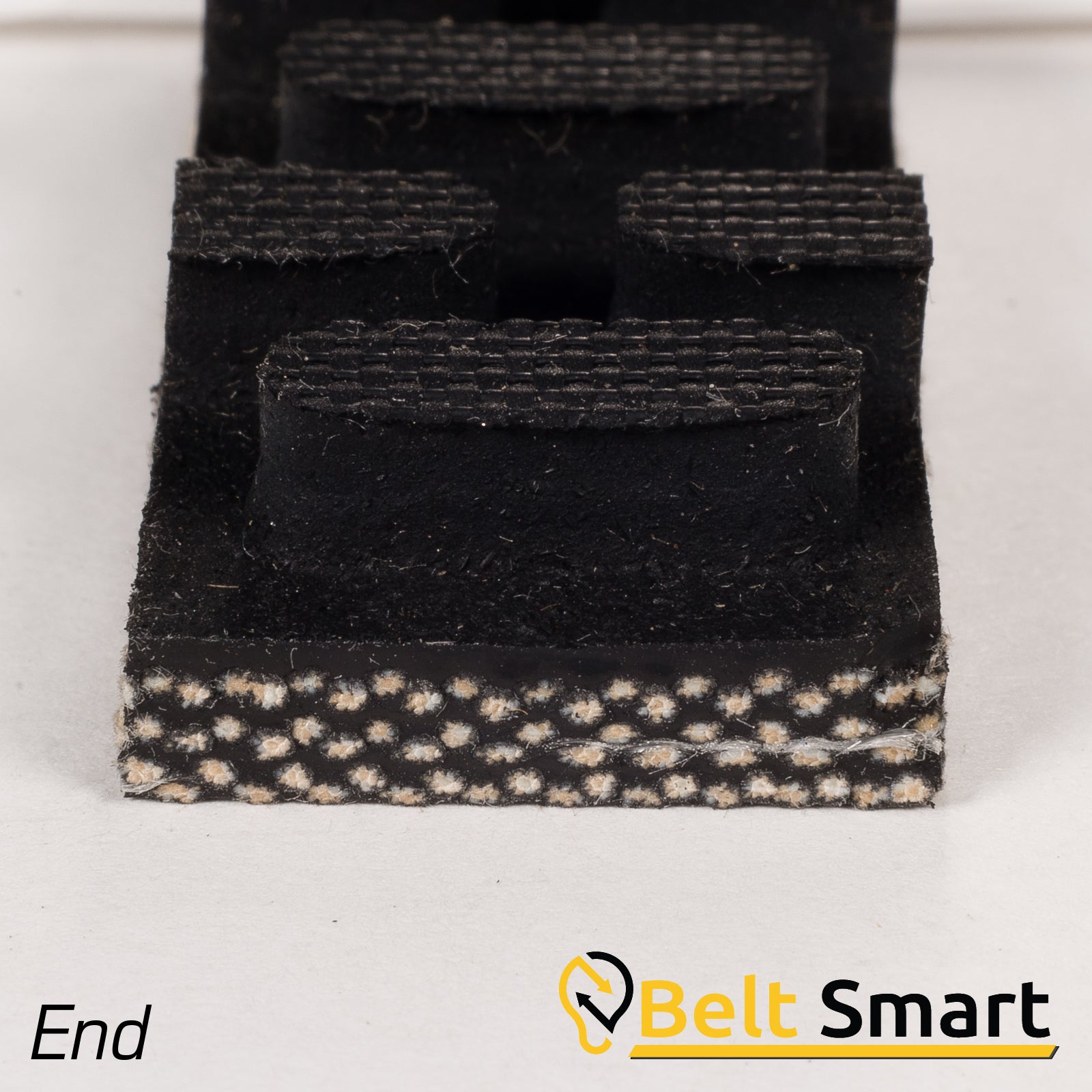

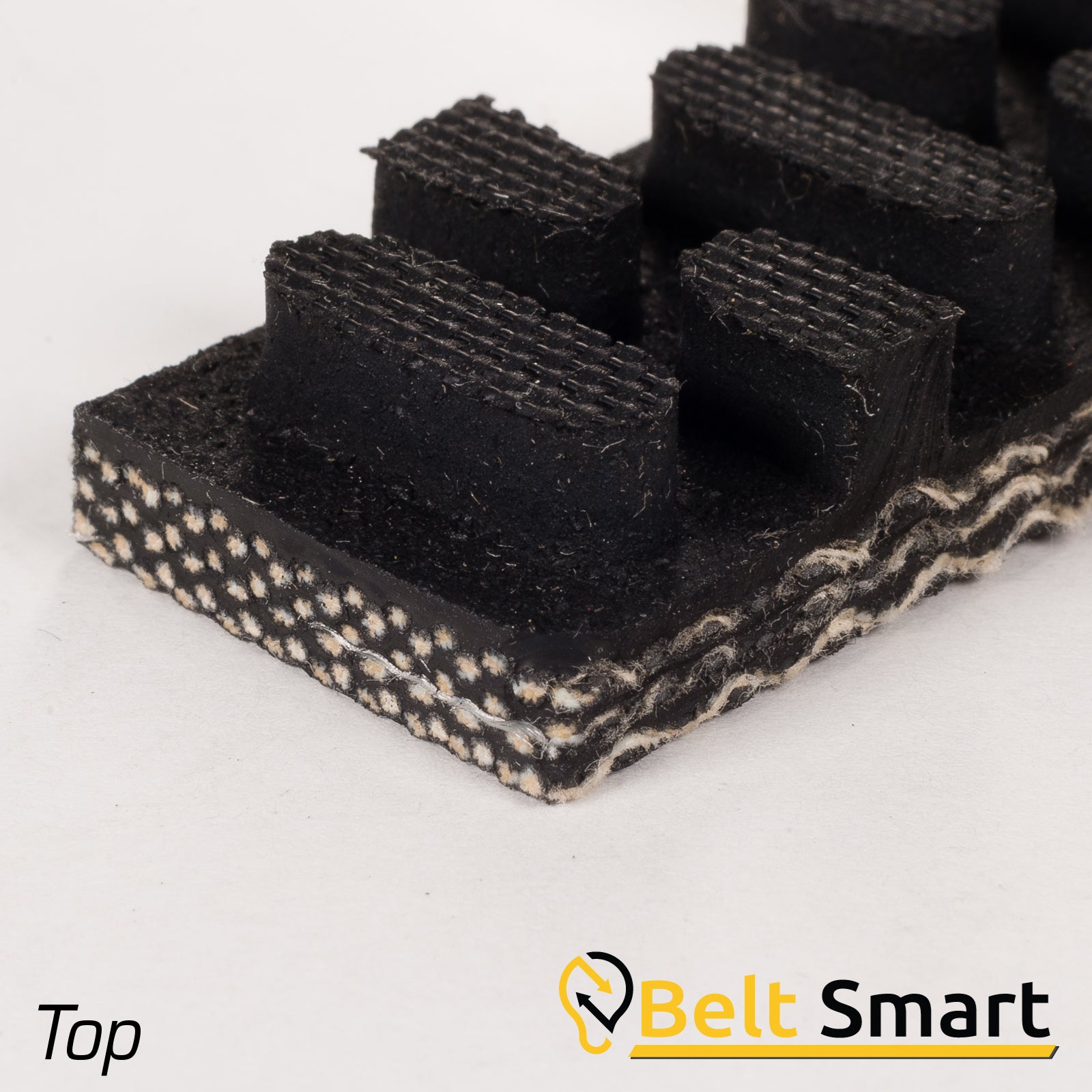

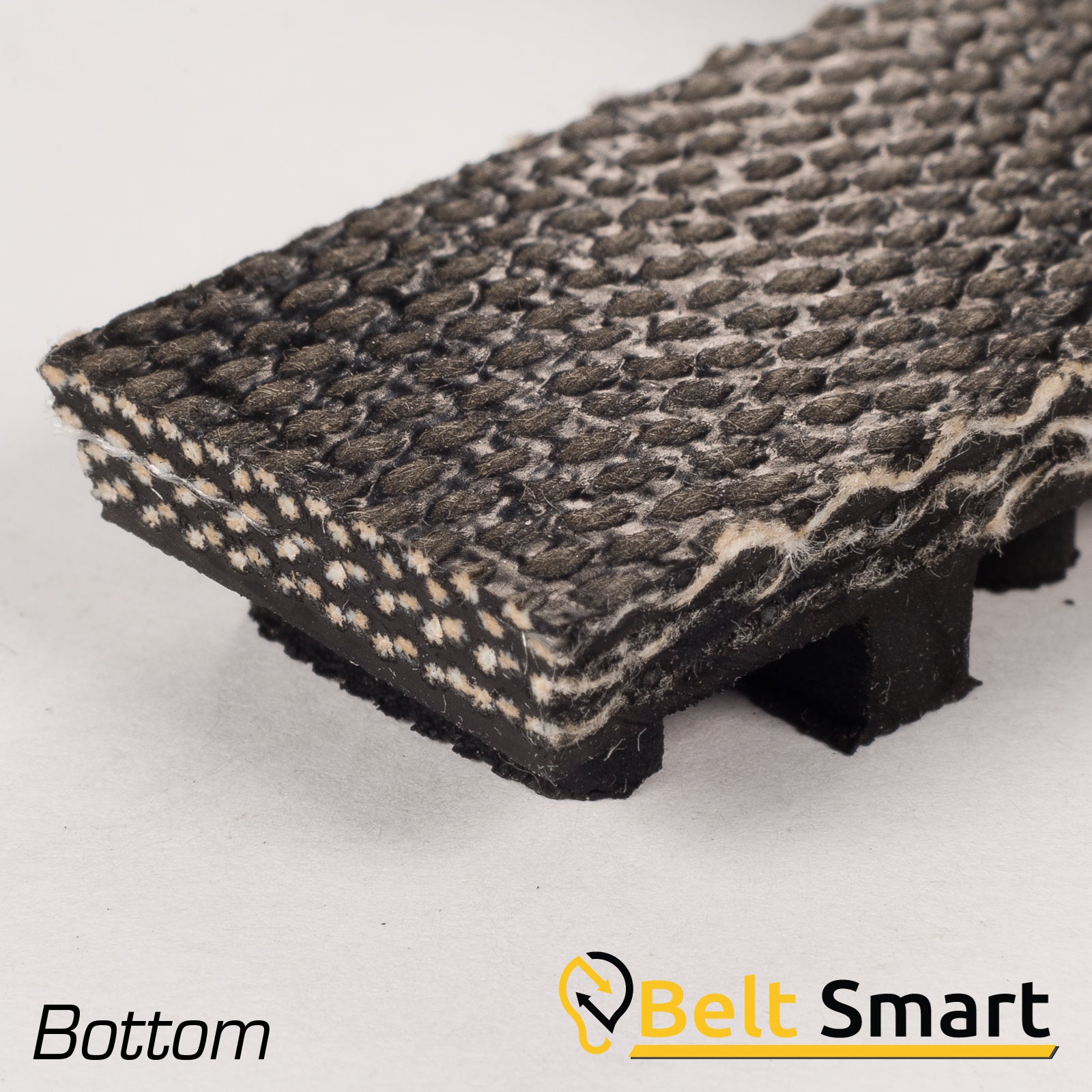

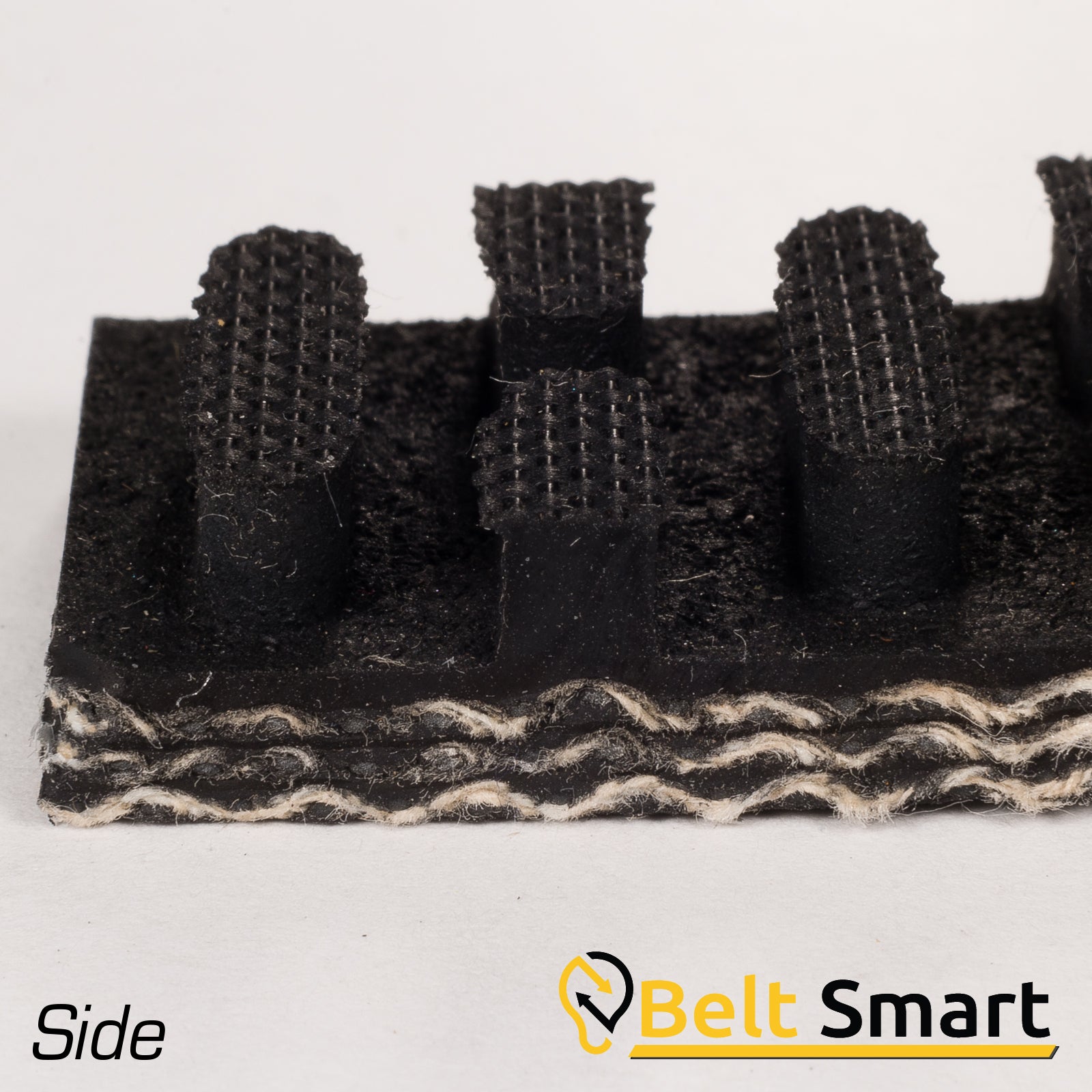

Features soft, oval-shaped nubs for gripping packages and products for very steep inclines. The molded projections prevent slip-back, providing a cushioning, pocketing effect for all sizes and shapes of boxes. No. 65 Tan Genuine Pure Gum is softer durometer for the highest inclines. Both are good for slider bed applications.

	3 Ply CP30 Black Steepgrade x FS Pt No.: 64	3 Ply CP30 Tan Genuine Pure Gum Steepgrade x FS Pt No.: 65
Thickness	5/16"	5/16"
Covers	Oval-Shaped Nubs x Bare	Oval-Shaped Nubs x FS
Carcass	32 oz. CN40	32 oz. CN40
Working Tension per Inch Width	90 lbs.
Approx. Weight Lbs. Per Inch Width	.104 lbs.
Min. Pulley Diameter	3"	2-1/2"
Temperature Range	-40 deg. F / 250 deg. F
Clipper Lace	#1	#1
Alligator Lace	#7	#7
Alligator Staple	#125	#125

FS = Friction Surface
