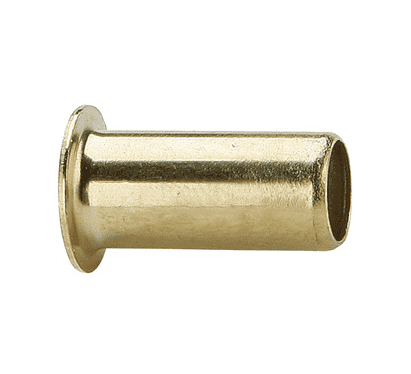

63PT-0325 Dixon Valve Brass Compression Fitting - Brass Insert - 3/16" Tube Size x .025 Wall Thickness
Dixon

63PT-0325 Dixon Valve Brass Compression Fitting - Brass Insert - 3/16" Tube Size x .025 Wall Thickness

Contact for Price

If you are interested in this item please fill out the Contact Form below.

Contact Us

How can we help you?

Price, availability, and details—available upon request.

Advantages:
  • Delrin® sleeves and brass inserts convert standard compression fittings for use with industrial grades of thermoplastic tubing.
  • No flaring, soldering or other preparation of tubing necessary to assemble.
  • Manufactured for low and medium pressure tubing connection work where excessive vibration or tube movement is not involved.
Specifications:
  • Underwriter's Laboratories listed for flammable liquid. Compression fittings meet functional requirements of SAE J-512 and ASA.
Assembly Instructions:
  • Slide nut, then sleeve onto tubing. The thread end of the nut must face out.
  • Insert the tube into the fitting. Be sure the tube is bottomed on the fitting shoulder.
  • Assemble nut to body, and tighten hand-tight. Then follow the number of wrench turns as indicated in the table to the right.
Fitting Size Tube Size Turns Required to Seal from Hand-Tight
60C Series with Soft Metal Tubing 60PT Series with Thermoplastic Tubing
2 1/8" 1-1/4" -
3 3/16" 1-1/4" -
4 1/4" 1-1/4" 2
5 5/16" 1-1/4" 2
6 3/8" 2-1/4" 2
8 1/2" 2-1/4" 2
10 5/8" 2-1/4" 2
12 3/4" 2-1/4" 2
14 7/8 2-1/4" -
f
Part Number Tube Size Wall Thickness Material Weight (Lbs)
63PT-0216 1/8" .016 Brass 0.0010
63PT-0223 1/8" .023 Brass 0.0002
63PT-0232 1/8" .032 Brass 0.0002
63PT-0325 3/16" .025 Brass 0.0006
63PT-0340 3/16" .040 Brass 0.0005
63PT-0440 1/4" .040 304 Stainless Steel 0.0010
63PT-0462 1/4" .062 Brass 0.0025
63PT-0540 5/16" .040 Brass 0.0015
63PT-0562 5/16" .062 Brass 0.0021
63PT-0662 3/8" .062 304 Stainless Steel 0.0100
63PT-0862 1/2" .062304 Stainless Steel 0.0050
63PT-1062 5/8" .062 Brass 0.0050

Dixon Valve & Coupling
