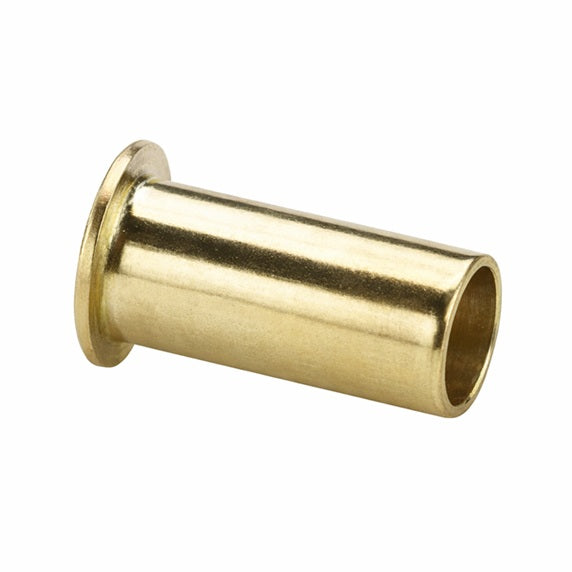

63PT-5-40 by Parker | Compression Fitting | Insert | 5/16" Tube OD x .040 Wall Thickness | .50" Length | Straight | Brass | Pack of 100

63PT-5-40 by Parker | Compression Fitting | Insert | 5/16" Tube OD x .040 Wall Thickness | .50" Length | Straight | Brass | Pack of 100

Sale price$108.80

by Parker Hannifin
Compression Fittings:Brass Insert 63PT

Package Quantity: 100 Units

Buy More, Save More!
Quantity Price Each
5–19 $102.27
20–59 $92.48
60+ $81.60
Discounts applied in cart/checkout.

Product Data:

Series:
  • 63PT Series
Shape:

Straight

Material(s):
  • Brass
Product Features:
  • Meets functional requirements of SAE J-512
  • UL Listed for flammable liquid
  • Brass or acetal sleeve available
  • No tube preparation
  • Forged and extruded shapes
Markets:
  • Industrial
  • Packaging
  • Pneumatic
  • Printing
Applications:
  • Air lines
  • Lubrication Lines
  • Cooling lines
  • Industry
  • Machinery
  • Compressors
  • Fluid transfer
Specification:
Pressure Range: See Chart Below
Temperature Range: -65° to +250° F (- 53.8° to +121.1° C)
Compatible Tubing:
  • Copper
  • Aluminum
  • Thermoplastic tubing
Part Number Tube OD Tube Wall L OD
63PT-2-16 1/8" .016" .46" .080"
63PT-2-23 1/8" .023" .45" .073"
63PT-3-25 3/16" .025" .45" .135"
63PT-3-40 3/16" .040" .52" .095"
63PT-4-62 1/4" .062" .33" .110"
63PT-5-40 5/16" .040" .50" .232"
63PT-5-62 5/16" .062" .53" .187"
63PT-10-62 5/8" .062" .72" .483"

Parker Fluid System Connectors Division

Parker Fluid System Connectors Division delivers quality and service from design to delivery. Their engineers leverage advanced technology to create prototypes, refine designs, and improve manufacturing efficiencies, offering tailored solutions. ISO 9001 certified and focused on sustainability, they utilize recyclable materials and a brass chip recycling program to protect the environment and control costs. Flexible assembly, packaging, and shipping systems support diverse needs, including kitting and custom labeling, ensuring high-quality products and outstanding customer support.
