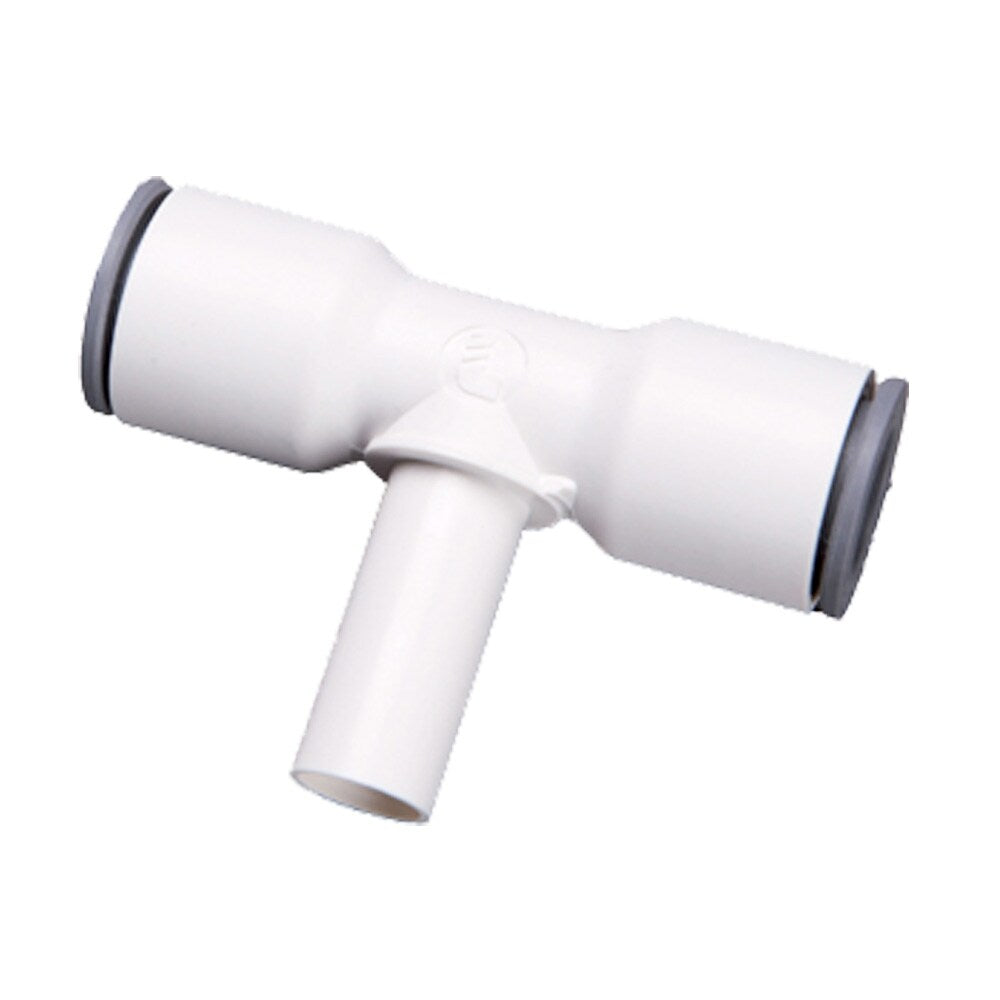

6388 56 00WP2 by Parker | Legris Plug-In Fitting | 1/4" Tube Size x 1/4" Tube Size | 36mm Length | Tee | Polymer | Pack of 10

6388 56 00WP2 by Parker | Legris Plug-In Fitting | 1/4" Tube Size x 1/4" Tube Size | 36mm Length | Tee | Polymer | Pack of 10

Sale price$30.16

by Parker Hannifin
LIQUIfit® Push-In Fittings / Plug-In Fittings:6388 Plug-In Branch Tee

Package Quantity: 10 Units

Buy More, Save More!
Quantity Price Each
20–39 $28.35
40–79 $25.64
80+ $22.62
Discounts applied in cart/checkout.

Product Data:

Brand:
  • LIQUIfit®
Series:
  • 6388 Series
Shape:

Tee
Technical Characteristics:
  • Compatible Fluids: Water, beverages, CO2 (inert use)
  • Working Pressure: Vacuum to 16 bar
  • Working Temperature: -10°C to +95°C
    -20° to +70°C for 16 mm to 10 bar
Advantages:
  • Bio-sourced polymer meeting food process regulations
  • Compliant with FDA, NSF, DM174, KTW, ACS standards
  • Easy-to-clean external surfaces
  • Free of bisphenol and phthalates
Regulations:
  • RoHS
  • REACH
  • FDA: 21 CFR
  • NSF: 51
  • NSF 61 - C HOT
  • 1935/2004
  • DM 174
  • ACS
  • KTW
Component Materials:
  • Body and Adapter: Bio-Based Polymer
  • Grey Release button: Technical Polymer
  • Gripping ring or collet (6501 and 6599): Stainless Steel
  • Seal: EPDM
Pressure and Temperature of the different diameters and related products of the LIQUIfit® Range
Part Number ØD ØD1 G H (mm) H1 (mm) H2 (mm) L/2 (mm) H (in) H1 (in) H2 (in) L/2 (in) Kg
6388 56 00WP2 1/4" 1/4" 11 mm 30.5 mm 11 mm 20 mm 18 mm - - - - .002 Kg
6388 60 00WP2 3/8" 3/4" 16 mm 42 mm 12 mm 25 mm 25 mm - - - - .008 Kg
6388 62 00WP2 1/2" 1/2" - - - - - 2.01" .51" 1.14" 1.26" -

5/32” (4 mm) and 5/16” (8 mm) also available.

For rotary applications, we recommend the use of a special grooved version, available upon request.
