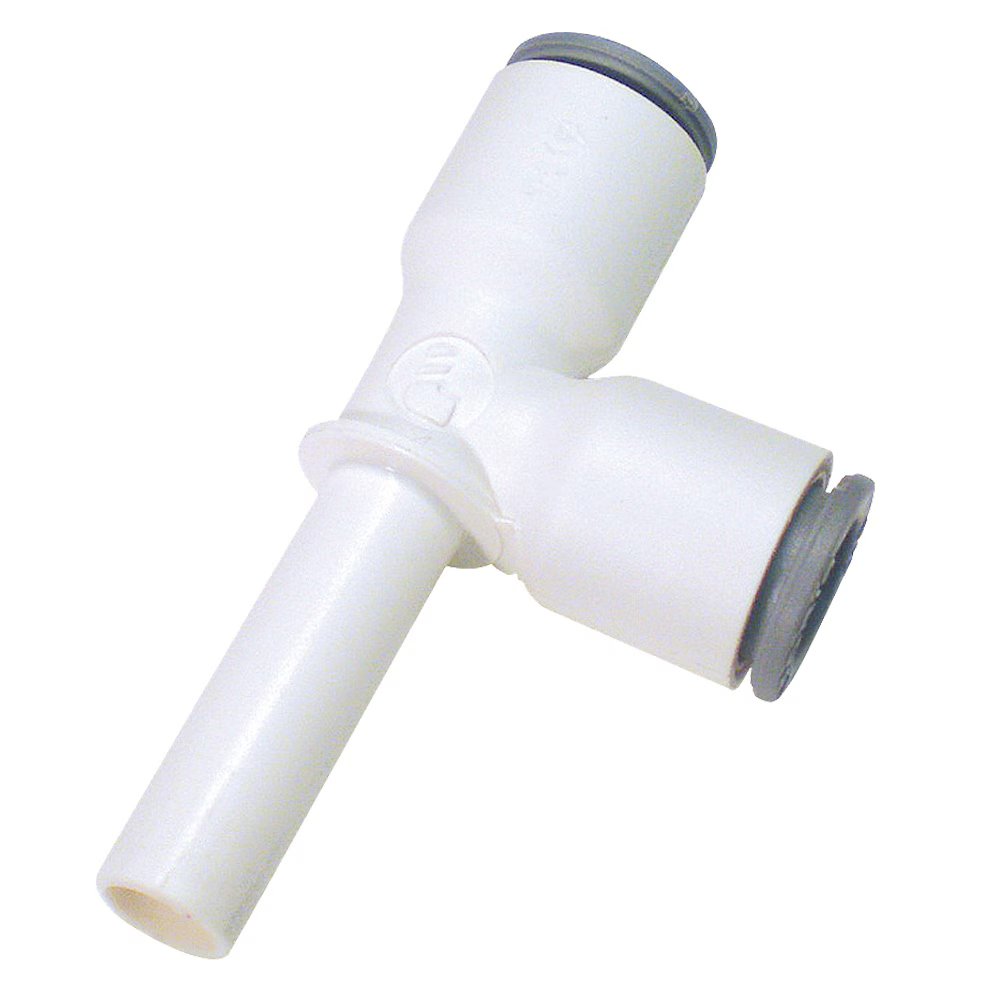

6383 04 00WP2 by Parker | Legris Plug-In Fitting | 4 mm Tube Size x 4 mm Tube Size | 33 mm Length | Tee | Polymer | Pack of 10

6383 04 00WP2 by Parker | Legris Plug-In Fitting | 4 mm Tube Size x 4 mm Tube Size | 33 mm Length | Tee | Polymer | Pack of 10

Sale price$36.65

by Parker Hannifin
LIQUIfit® Push-In Fittings / Plug-In Fittings:6383 Plug-In Equal Run Tee

Package Quantity: 10 Units

Buy More, Save More!
Quantity Price Each
20–39 $34.45
40–79 $31.15
80+ $27.49
Discounts applied in cart/checkout.

Product Data:

Brand:
  • LIQUIfit®
Series:
  • 6383 Series
Shape:

Tee
Technical Characteristics:
  • Compatible Fluids: Water, beverages, CO2 (inert use)
  • Working Pressure: Vacuum to 16 bar
  • Working Temperature: -10°C to +95°C
    -20° to +70°C for 16 mm to 10 bar
Advantages:
  • Bio-sourced polymer meeting food process regulations
  • Compliant with FDA, NSF, DM174, KTW, ACS standards
  • Easy-to-clean external surfaces
  • Free of bisphenol and phthalates
Regulations:
  • RoHS
  • REACH
  • FDA: 21 CFR
  • NSF: 51
  • NSF 61 - C HOT
  • 1935/2004
  • DM 174
  • ACS
  • KTW
Component Materials:
  • Body and Adapter: Bio-Based Polymer
  • Grey Release button: Technical Polymer
  • Gripping ring or collet (6501 and 6599): Stainless Steel
  • Seal: EPDM
Pressure and Temperature of the different diameters and related products of the LIQUIfit® Range
Part Number ØD ØD1 G H H1 H2 L Kg
6383 04 00WP2 4 mm 4 mm 8.5 mm 33 mm 6 mm 15.5 mm 15 mm .002 Kg
6383 06 00WP2 6 mm 6 mm 10.5 mm 38.5 mm 7 mm 17 mm 18 mm .002 Kg
6383 08 00WP2 8 mm 8 mm 13.5 mm 49 mm 8 mm 21.5 mm 23 mm .005 Kg
6383 10 00WP2 10 mm 10 mm 16 mm 57 mm 10.5 mm 25.5 mm 26.5 mm .012 Kg

Parker Fluid System Connectors Division

Parker Fluid System Connectors Division delivers quality and service from design to delivery. Their engineers leverage advanced technology to create prototypes, refine designs, and improve manufacturing efficiencies, offering tailored solutions. ISO 9001 certified and focused on sustainability, they utilize recyclable materials and a brass chip recycling program to protect the environment and control costs. Flexible assembly, packaging, and shipping systems support diverse needs, including kitting and custom labeling, ensuring high-quality products and outstanding customer support.
