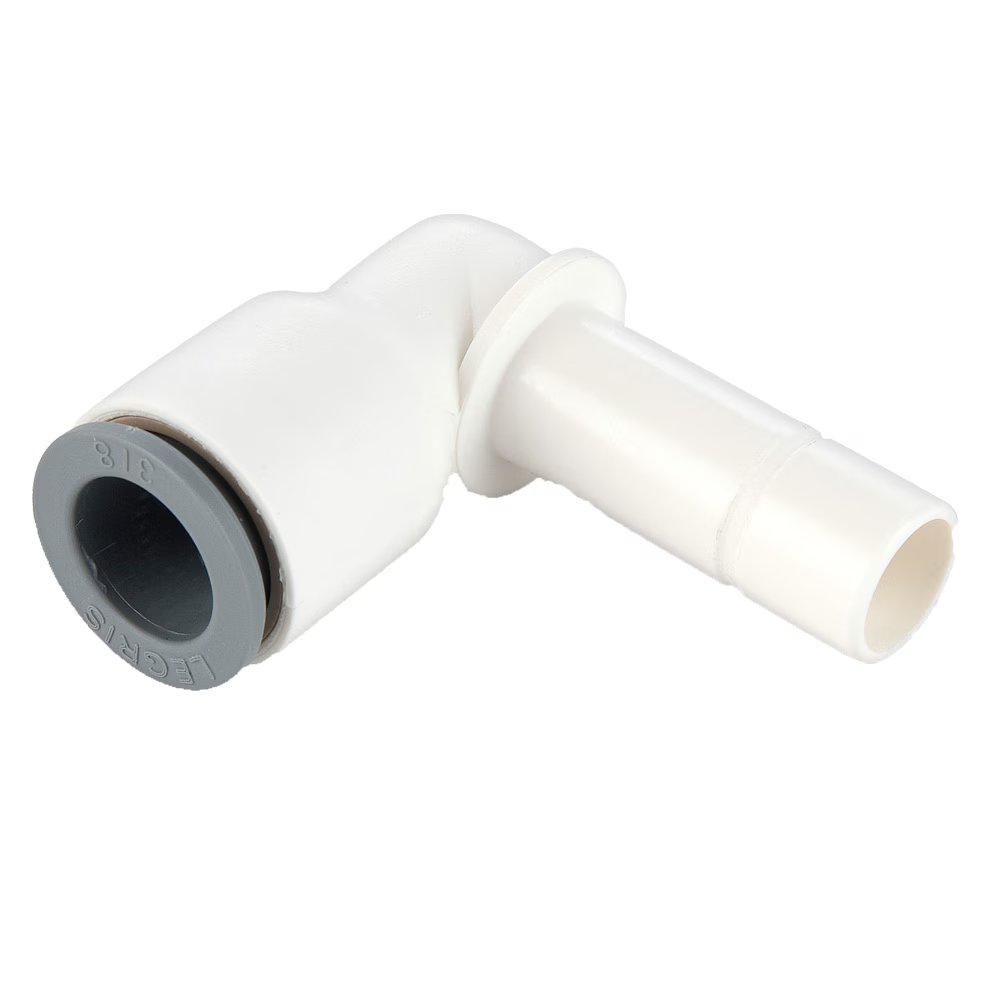

6382 60 00WP2 by Parker | Legris Plug-In Fitting | 3/8" Tube Size x 3/8" Tube Size | 39 mm Length | 90° Elbow | Polymer | Pack of 10

6382 60 00WP2 by Parker | Legris Plug-In Fitting | 3/8" Tube Size x 3/8" Tube Size | 39 mm Length | 90° Elbow | Polymer | Pack of 10

Sale price$34.32

by Parker Hannifin
LIQUIfit® Push-In Fittings / Plug-In Fittings:6382 Equal and Unequal Plug-In Elbow

Package Quantity: 10 Units

Buy More, Save More!
Quantity Price Each
20–39 $32.26
40–79 $29.17
80+ $25.74
Discounts applied in cart/checkout.

Product Data:

Brand:
  • LIQUIfit®
Series:
  • 6382 Series
Shape:

90° Elbow
Technical Characteristics:
  • Compatible Fluids: Water, beverages, CO2 (inert use)
  • Working Pressure: Vacuum to 16 bar
  • Working Temperature: -10°C to +95°C
    -20° to +70°C for 16 mm to 10 bar
Advantages:
  • Bio-sourced polymer meeting food process regulations
  • Compliant with FDA, NSF, DM174, KTW, ACS standards
  • Easy-to-clean external surfaces
  • Free of bisphenol and phthalates
Regulations:
  • RoHS
  • REACH
  • FDA: 21 CFR
  • NSF: 51
  • NSF 61 - C HOT
  • 1935/2004
  • DM 174
  • ACS
  • KTW
Component Materials:
  • Body and Adapter: Bio-Based Polymer
  • Grey Release button: Technical Polymer
  • Gripping ring or collet (6501 and 6599): Stainless Steel
  • Seal: EPDM
Pressure and Temperature of the different diameters and related products of the LIQUIfit® Range
Part Number ØD ØD1 G H (mm) H1 (mm) H2 (mm) L (mm) H (in) H1 (in) H2 (in) L (in) Kg
6382 08 60WP2 5/16" 3/8" 16 mm 39 mm 10 mm 24.5 mm 26 mm - - - - .009 Kg
6382 56 00WP2 1/4" 1/4" 11 mm 30.5 mm 11 mm 18 mm 18 mm - - - - .002 Kg
6382 56 60WP2 1/4" 3/8" 16 mm 39 mm 9 mm 24.5 mm 25.5 mm - - - - .009 Kg
6382 60 00WP2 3/8" 3/8" 16 mm 39 mm 9 mm 24.5 mm 26.5 mm - - - - .005 Kg
6382 60 56WP2 3/8" 1/4" - - - - - 1.26" .43" .71" 1.04" -
6382 62 00WP2 1/2" 1/2" 22 mm 49 mm 13 mm 28.5 mm 36 mm - - - - .004 Kg

Equal plug-in elbow: 5/32” (4 mm) and 5/16” (8 mm) also available

The references in diameter 4mm and 12mm are not grooved in standard version
