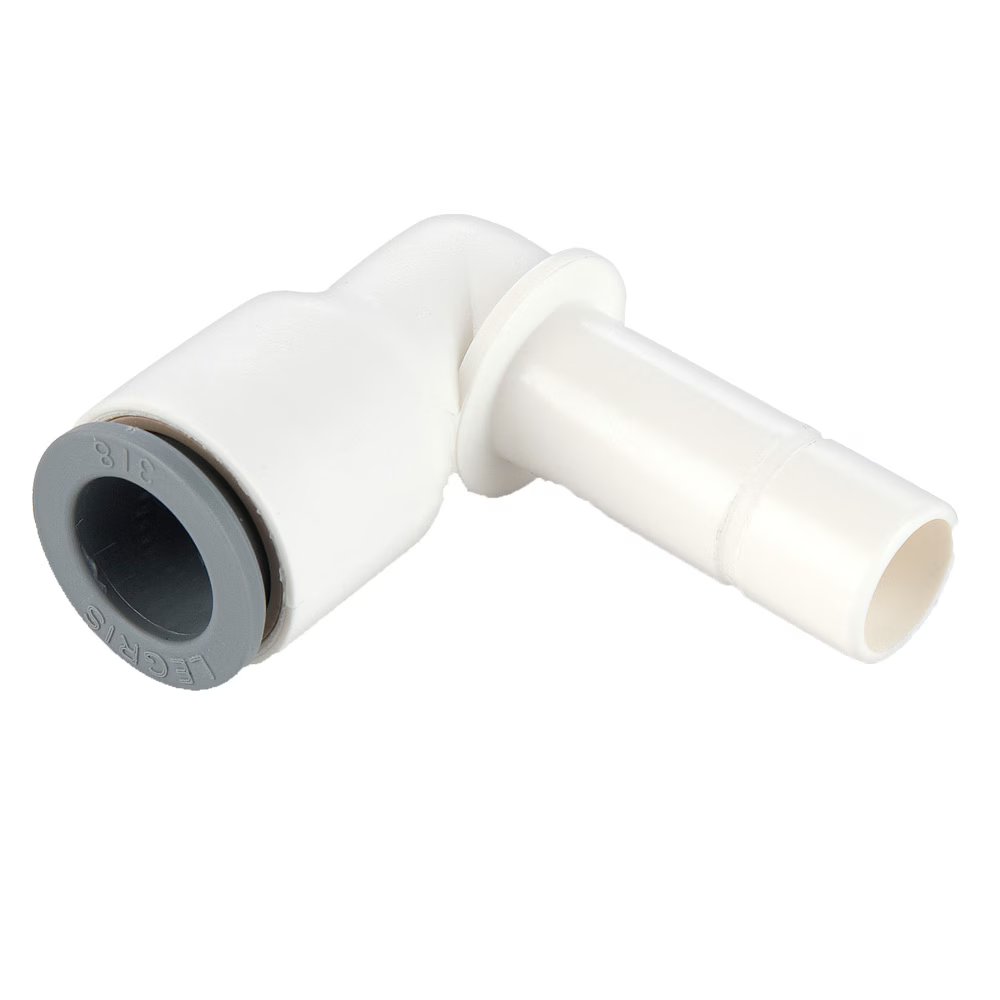

6382 04 06WP2 by Parker | Legris Plug-In Fitting | 4 mm Tube Size x 6 mm Tube Size | 26.5 mm Length | 90° Elbow | Polymer | Pack of 10

6382 04 06WP2 by Parker | Legris Plug-In Fitting | 4 mm Tube Size x 6 mm Tube Size | 26.5 mm Length | 90° Elbow | Polymer | Pack of 10

Sale price$53.64

by Parker Hannifin
LIQUIfit® Push-In Fittings / Plug-In Fittings:6382 Equal and Unequal Plug-In Elbow

Package Quantity: 10 Units

Buy More, Save More!
Quantity Price Each
20–39 $50.42
40–79 $45.59
80+ $40.23
Discounts applied in cart/checkout.

Product Data:

Brand:
  • LIQUIfit®
Series:
  • 6382 Series
Shape:

90° Elbow
Technical Characteristics:
  • Compatible Fluids: Water, beverages, CO2 (inert use)
  • Working Pressure: Vacuum to 16 bar
  • Working Temperature: -10°C to +95°C
    -20° to +70°C for 16 mm to 10 bar
Advantages:
  • Bio-sourced polymer meeting food process regulations
  • Compliant with FDA, NSF, DM174, KTW, ACS standards
  • Easy-to-clean external surfaces
  • Free of bisphenol and phthalates
Regulations:
  • RoHS
  • REACH
  • FDA: 21 CFR
  • NSF: 51
  • NSF 61 - C HOT
  • 1935/2004
  • DM 174
  • ACS
  • KTW
Component Materials:
  • Body and Adapter: Bio-Based Polymer
  • Grey Release button: Technical Polymer
  • Gripping ring or collet (6501 and 6599): Stainless Steel
  • Seal: EPDM
Pressure and Temperature of the different diameters and related products of the LIQUIfit® Range
Part Number ØD ØD1 G H H1 H2 L Kg
6382 04 00WP2 4 mm 4 mm 8.5 mm 23 mm 6 mm 15.5 mm 15 mm .003 Kg
6382 04 06WP2 4 mm 6 mm 10.5 mm 26.5 mm 7 mm 17 mm 16.5 mm .002 Kg
6382 06 00WP2 6 mm 6 mm 10.5 mm 26.5 mm 7 mm 17 mm 17 mm .003 Kg
6382 06 04WP2 6 mm 4 mm 10.5 mm 25 mm 7 mm 15.5 mm 17 mm .001 Kg
6382 06 08WP2 6 mm 8 mm 13.5 mm 33.5 mm 8 mm 21.5 mm 22 mm .004 Kg
6382 08 00WP2 8 mm 8 mm 13.5 mm 33.5 mm 8 mm 21.5 mm 22.5 mm .004 Kg
6382 08 10WP2 8 mm 10 mm 16 mm 39 mm 9.5 mm 24.5 mm 26 mm .007 Kg
6382 10 00WP2 10 mm 10 mm 16 mm 39 mm 9.5 mm 24.5 mm 26.5 mm .004 Kg
6382 12 00WP2 12 mm 12 mm 19 mm 44.5 mm 10 mm 27 mm 31 mm .012 Kg

The references in diameter 4mm and 12mm are not grooved in standard version
