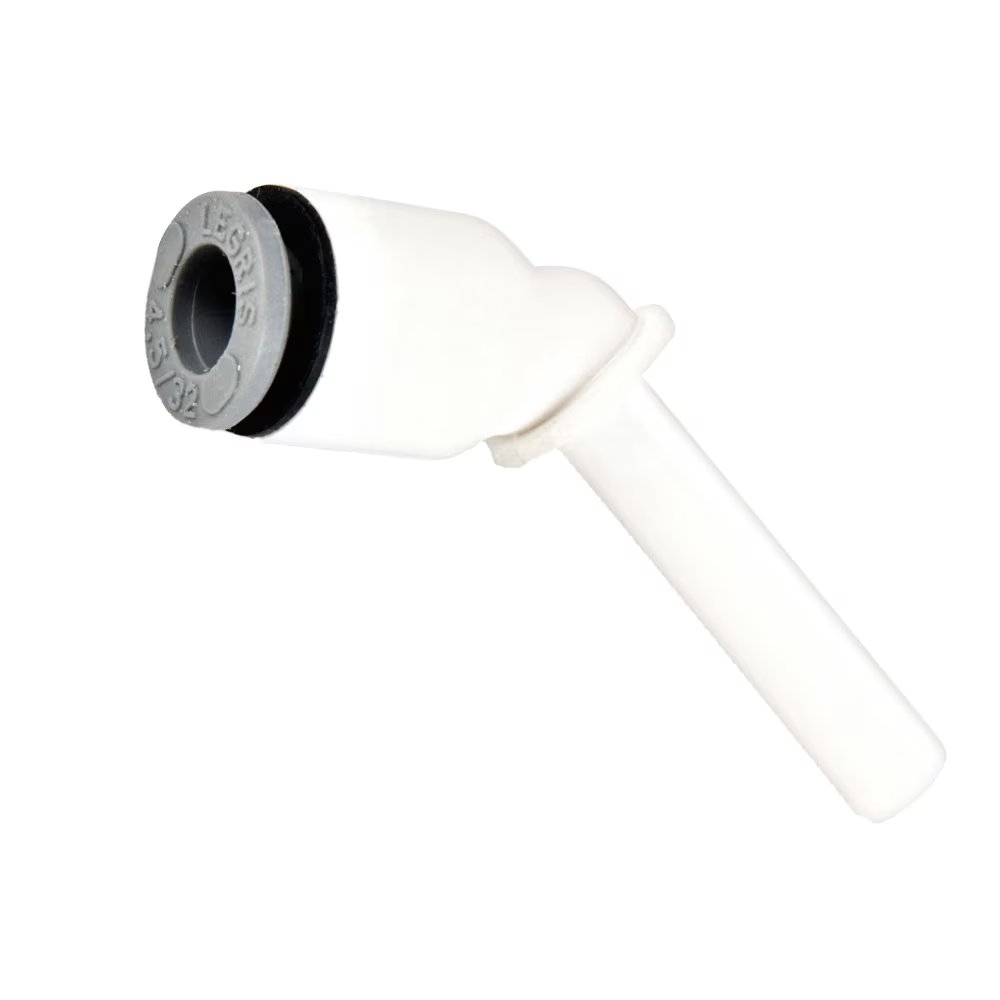

6380 10 00WP2 by Parker | Legris Plug-In Fitting | 10 mm Tube Size x 10 mm Tube Size | 53 mm Length | 45° Elbow | Polymer | Pack of 10

6380 10 00WP2 by Parker | Legris Plug-In Fitting | 10 mm Tube Size x 10 mm Tube Size | 53 mm Length | 45° Elbow | Polymer | Pack of 10

Sale price$35.65

by Parker Hannifin
LIQUIfit® Push-In Fittings / Plug-In Fittings:6380 Plug-In 45° Equal Elbow

Package Quantity: 10 Units

Buy More, Save More!
Quantity Price Each
20–39 $33.51
40–79 $30.30
80+ $26.74
Discounts applied in cart/checkout.

Product Data:

Brand:
  • LIQUIfit®
Series:
  • 6380 Series
Shape:

45° Elbow
Technical Characteristics:
  • Compatible Fluids: Water, beverages, CO2 (inert use)
  • Working Pressure: Vacuum to 16 bar
  • Working Temperature: -10°C to +95°C
    -20° to +70°C for 16 mm to 10 bar
Advantages:
  • Bio-sourced polymer meeting food process regulations
  • Compliant with FDA, NSF, DM174, KTW, ACS standards
  • Easy-to-clean external surfaces
  • Free of bisphenol and phthalates
Regulations:
  • RoHS
  • REACH
  • FDA: 21 CFR
  • NSF: 51
  • NSF 61 - C HOT
  • 1935/2004
  • DM 174
  • ACS
  • KTW
Component Materials:
  • Body and Adapter: Bio-Based Polymer
  • Grey Release button: Technical Polymer
  • Gripping ring or collet (6501 and 6599): Stainless Steel
  • Seal: EPDM
Pressure and Temperature of the different diameters and related products of the LIQUIfit® Range
Part Number ØD ØD1 G H H1 H2 L Kg
6380 04 00WP2 4 mm 4 mm 8.5 mm 33.5 mm 19 mm 21 mm 13 mm .001 Kg
6380 06 00WP2 6 mm 6 mm 11 mm 39 mm 21 mm 25 mm 14.5 mm .002 Kg
6380 08 00WP2 8 mm 8 mm 13.5 mm 44 mm 21.5 mm 25.5 mm 19.5 mm .006 Kg
6380 10 00WP2 10 mm 10 mm 16 mm 53 mm 27 mm 32.5 mm 23 mm .004 Kg
6380 12 00WP2 12 mm 12 mm 19 mm 58 mm 27 mm 34 mm 26 mm .012 Kg
