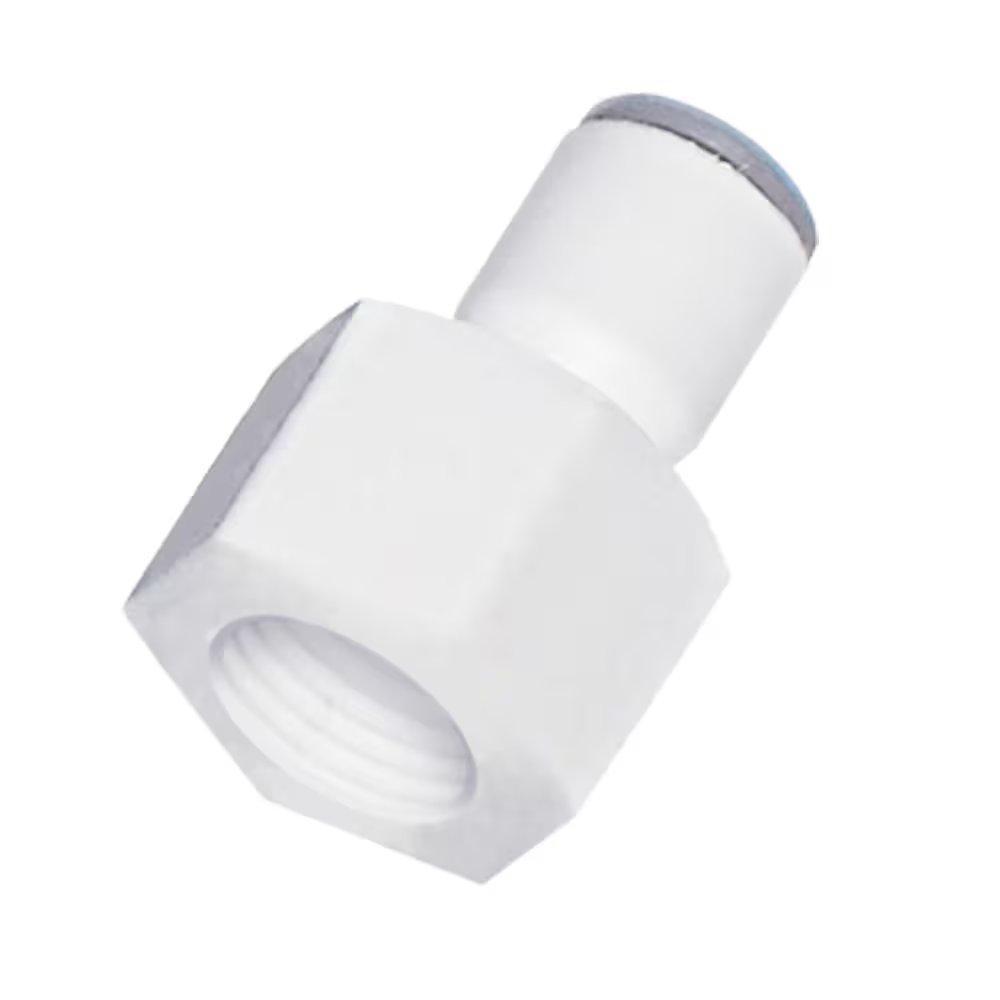

6352 60 17WP2 by Parker | Legris Stud Fitting | 3/8" Tube Size x 3/8" Female BSPP Thread | 36 mm Length | Straight | Polymer | Pack of 10

6352 60 17WP2 by Parker | Legris Stud Fitting | 3/8" Tube Size x 3/8" Female BSPP Thread | 36 mm Length | Straight | Polymer | Pack of 10

Sale price$47.81

by Parker Hannifin
LIQUIfit® Push-In Fittings / Stud Fittings:6352 Stud Fitting Flat Type, Female BSPP Thread

Package Quantity: 10 Units

Buy More, Save More!
Quantity Price Each
20–39 $44.94
40–79 $40.64
80+ $35.86
Discounts applied in cart/checkout.

Product Data:

Brand:
  • LIQUIfit®
Series:
  • 6352 Series
Shape:

Straight
Technical Characteristics:
  • Compatible Fluids: Water, beverages, CO2 (inert use)
  • Working Pressure: Vacuum to 16 bar
  • Working Temperature: -10°C to +95°C
    -20° to +70°C for 16 mm to 10 bar
Advantages:
  • Bio-sourced polymer meeting food process regulations
  • Compliant with FDA, NSF, DM174, KTW, ACS standards
  • Easy-to-clean external surfaces
  • Free of bisphenol and phthalates
Regulations:
  • RoHS
  • REACH
  • FDA: 21 CFR
  • NSF: 51
  • NSF 61 - C HOT
  • 1935/2004
  • DM 174
  • ACS
  • KTW
Component Materials:
  • Body and Adapter: Bio-Based Polymer
  • Grey Release button: Technical Polymer
  • Gripping ring or collet (6501 and 6599): Stainless Steel
  • Seal: EPDM
Pressure and Temperature of the different diameters and related products of the LIQUIfit® Range
Part Number ØD C E F H Kg
6352 60 17WP2 3/8" 3/8" 12 mm 22 mm 36 mm .008 Kg

Parker Fluid System Connectors Division

Parker Fluid System Connectors Division delivers quality and service from design to delivery. Their engineers leverage advanced technology to create prototypes, refine designs, and improve manufacturing efficiencies, offering tailored solutions. ISO 9001 certified and focused on sustainability, they utilize recyclable materials and a brass chip recycling program to protect the environment and control costs. Flexible assembly, packaging, and shipping systems support diverse needs, including kitting and custom labeling, ensuring high-quality products and outstanding customer support.
