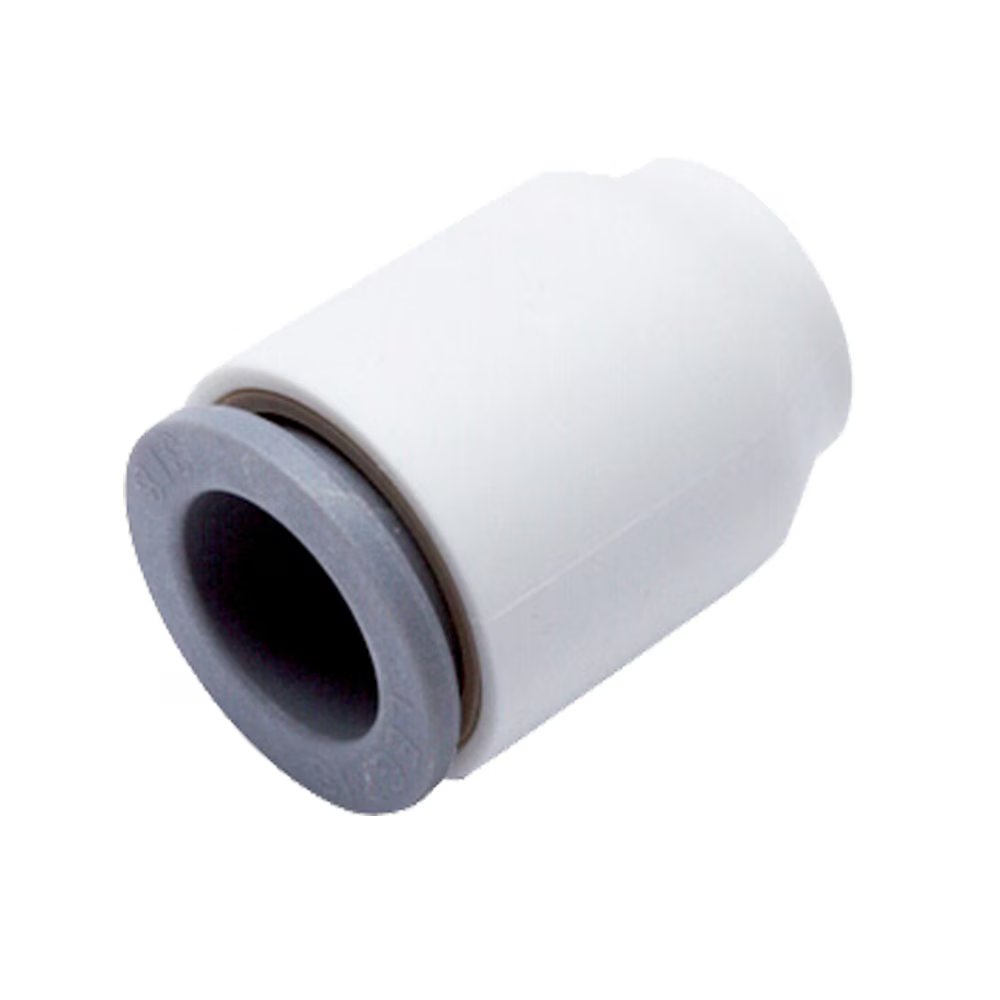

6351 08 00WP2 by Parker | Legris End Cap | 8 mm Cap | 21.5 mm Length | Polymer | Pack of 10

6351 08 00WP2 by Parker | Legris End Cap | 8 mm Cap | 21.5 mm Length | Polymer | Pack of 10

Sale price$29.82

by Parker Hannifin
LIQUIfit® Push-In Fittings / Plug-In Accessories:6351 End Cap

Package Quantity: 10 Units

Buy More, Save More!
Quantity Price Each
20–39 $28.03
40–79 $25.35
80+ $22.37
Discounts applied in cart/checkout.

Product Data:

Brand:
  • LIQUIfit®
Series:
  • 6351 Series
Shape:

No Orientation
Technical Characteristics:
  • Compatible Fluids: Water, beverages, CO2 (inert use)
  • Working Pressure: Vacuum to 16 bar
  • Working Temperature: -10°C to +95°C
    -20° to +70°C for 16 mm to 10 bar
Advantages:
  • Bio-sourced polymer meeting food process regulations
  • Compliant with FDA, NSF, DM174, KTW, ACS standards
  • Easy-to-clean external surfaces
  • Free of bisphenol and phthalates
Regulations:
  • RoHS
  • REACH
  • FDA: 21 CFR
  • NSF: 51
  • NSF 61 - C HOT
  • 1935/2004
  • DM 174
  • ACS
  • KTW
Component Materials:
  • Body and Adapter: Bio-Based Polymer
  • Grey Release button: Technical Polymer
  • Gripping ring or collet (6501 and 6599): Stainless Steel
  • Seal: EPDM
Pressure and Temperature of the different diameters and related products of the LIQUIfit® Range
Part Number ØD G H Kg
6351 04 00WP2 4 mm 8.5 mm 15 mm .001 Kg
6351 06 00WP2 66 mm 10.5 mm 17 mm .002 Kg
6351 08 00WP2 8 mm 13.5 mm 21.5 mm .003 Kg
6351 10 00WP2 10 mm 16 mm 22 mm .003 Kg
6351 12 00WP2 12 mm 19 mm 27.5 mm .006 Kg

Parker Fluid System Connectors Division

Parker Fluid System Connectors Division delivers quality and service from design to delivery. Their engineers leverage advanced technology to create prototypes, refine designs, and improve manufacturing efficiencies, offering tailored solutions. ISO 9001 certified and focused on sustainability, they utilize recyclable materials and a brass chip recycling program to protect the environment and control costs. Flexible assembly, packaging, and shipping systems support diverse needs, including kitting and custom labeling, ensuring high-quality products and outstanding customer support.
