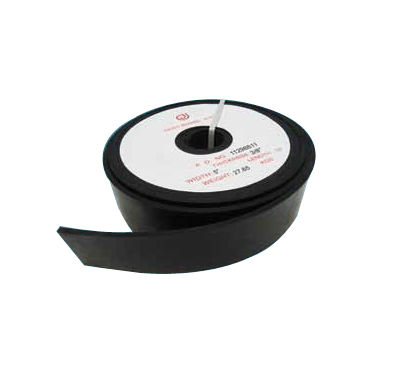

6341-1602 Jason Industrial 6341 SBR Skirtboard Rubber - Square Edge - 1/2" Gauge - 2" Width - 50ft
Jason Industrial Inc

6341-1602 Jason Industrial 6341 SBR Skirtboard Rubber - Square Edge - 1/2" Gauge - 2" Width - 50ft

Minimum Order Quantity: 5 Units

Sale price$502.44
Jason Industrial Inc. Skirtboard Rubber - 6341 SBR Skirtboard Rubber - Square Edge

Package Quantity: 50 FT

Product Data:

Series:
  • 6341 Series
Applications:
  • Use with conveyor belt or as chute lining
Features:
  • Abrasion and Weather Resistant
  • 55-60 Durometer
  • 1,000 PSI Tensile Strength, 300% Elongation
  • Cut Widths (Not Extruded)
  • Temperature Range: -20 deg. F (-29 deg. C) to +180 deg. F (+83 deg. C)
Part Number Gauge Width Roll Length Weight per 50ft Roll
in. mm in. mm ft m lbs.
6341-0802 1/4" 6.35mm 2" 50.80mm 50ft. 15.24m 16 lbs.
6341-0803 1/4" 6.35mm 3" 76.20mm 50ft. 15.24m 24 lbs.
6341-0804 1/4" 6.35mm 4" 101.60mm 50ft. 15.24m 31 lbs.
6341-0805 1/4" 6.35mm 5" 127.00mm 50ft. 15.24m 38 lbs.
6341-0806 1/4" 6.35mm 6" 152.40mm 50ft. 15.24m 47 lbs.
6341-0807 1/4" 6.35mm 7" 177.80mm 50ft. 15.24m 56 lbs.
6341-0808 1/4" 6.35mm 8" 203.20mm 50ft. 15.24m 65 lbs.
6341-0810 1/4" 6.35mm 10" 254.00mm 50ft. 15.24m 78 lbs.
6341-0812 1/4" 6.35mm 12" 304.80mm 50ft. 15.24m 97 lbs.
6341-0848 1/4" 6.35mm 48" 1219.20mm 50ft. 15.24m 390 lbs.
6341-1202 3/8" 9.53mm 2" 50.80mm 50ft. 15.24m 21 lbs.
6341-1203 3/8" 9.53mm 3" 76.20mm 50ft. 15.24m 32 lbs.
6341-1204 3/8" 9.53mm 4" 101.60mm 50ft. 15.24m 42 lbs.
6341-1205 3/8" 9.53mm 5" 127.00mm 50ft. 15.24m 53 lbs.
6341-1206 3/8" 9.53mm 6" 125.40mm 50ft. 15.24m 63 lbs.
6341-1207 3/8" 9.53mm 7" 177.80mm 50ft. 15.24m 76 lbs.
6341-1208 3/8" 9.53mm 8" 203.20mm 50ft. 15.24m 90 lbs.
6341-1210 3/8" 9.53mm 10" 254.00mm 50ft. 15.24m 108 lbs.
6341-1212 3/8" 9.53mm 12" 304.80mm 50ft. 15.24m 128 lbs.
6341-1248 3/8" 9.53mm 48" 1217.20mm 50ft. 15.24m 520 lbs.
6341-1602 1/2" 12.70mm 2" 50.80mm 50ft. 15.24m 30 lbs.
6341-1603 1/2" 12.70mm 3" 76.20mm 50ft. 15.24m 45 lbs.
6341-1604 1/2" 12.70mm 4" 101.60mm 50ft. 15.24m 60 lbs.
6341-1605 1/2" 12.70mm 5" 127.00mm 50ft. 15.24m 74 lbs.
6341-1606 1/2" 12.70mm 6" 152.40mm 50ft. 15.24m 89 lbs.
6341-1607 1/2" 12.70mm 7" 177.80mm 50ft. 15.24m 104 lbs.
6341-1608 1/2" 12.70mm 8" 203.20mm 50ft. 15.24m 121 lbs.
6341-1610 1/2" 12.70mm 10" 254.00mm 50ft. 15.24m 150 lbs.
6341-1612 1/2" 12.70mm 12" 304.80mm 50ft. 15.24m 181 lbs.
6341-1648 1/2" 12.70mm 48" 1219.20mm 50ft. 15.24m 726 lbs.
6341-2402 3/4" 19.05mm 2" 50.80mm 50ft. 15.24m 60 lbs.
6341-2403 3/4" 19.05mm 3" 76.20mm 50ft. 15.24m 68 lbs.
6341-2404 3/4" 19.05mm 4" 101.60mm 50ft. 15.24m 91 lbs.
6341-2405 3/4" 19.05mm 5" 127.00mm 50ft. 15.24m 112 lbs.
6341-2406 3/4" 19.05mm 6" 152.40mm 50ft. 15.24m 133 lbs.
6341-2407 3/4" 19.05mm 7" 177.80mm 50ft. 15.24m 157 lbs.
6341-2408 3/4" 19.05mm 8" 203.20mm 50ft. 15.24m 182 lbs.
6341-2410 3/4" 19.05mm 10" 254.00mm 50ft. 15.24m 226 lbs.
6341-2412 3/4" 19.05mm 12" 304.80mm 50ft. 15.24m 270 lbs.
6341-2448 3/4" 19.05mm 48" 1219.20mm 50ft. 15.24m 1120 lbs.
6341-3202 1" 25.40mm 2" 50.80mm 50ft. 15.24m 77 lbs.
6341-3203 1" 25.40mm 3" 76.20mm 50ft. 15.24m 95 lbs.
6341-3204 1" 25.40mm 4" 101.60mm 50ft. 15.24m 116 lbs.
6341-3205 1" 25.40mm 5" 127.00mm 50ft. 15.24m 114 lbs.
6341-3206 1" 25.40mm 6" 152.40mm 50ft. 15.24m 173 lbs.
6341-3207 1" 25.40mm 7" 177.80mm 50ft. 15.24m 199 lbs.
6341-3208 1" 25.40mm 8" 203.20mm 50ft. 15.24m 228 lbs.
6341-3210 1" 25.40mm 10" 254.00mm 50ft. 15.24m 289 lbs.
6341-3212 1" 25.40mm 12" 304.80mm 50ft. 15.24m 345 lbs.
6341-3248 1" 25.40mm 48" 1219.20mm 50ft. 15.24m 1420 lbs.

Jason Industrial

Founded in 1958 in Fairfield, NJ, Jason Industrial quickly gained a solid reputation as a go to source for both industrial hose and power transmission belts. Jason Industrial offers a comprehensive portfolio of industrial hose, couplings and accessories along with hydraulic hose, fittings and crimping equipment.
