6340-1206 Jason Industrial 6340 SBR Skirtboard Rubber - Beveled Edge - 3/8" Gauge - 6" Width - 50ft
Jason Industrial Inc

6340-1206 Jason Industrial 6340 SBR Skirtboard Rubber - Beveled Edge - 3/8" Gauge - 6" Width - 50ft

Sale price$332.31

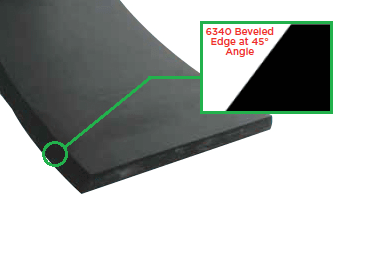

Jason Industrial Inc. Skirtboard Rubber - 6340 SBR Skirtboard Rubber - Beveled Edge (45 deg. Angle)

Package Quantity: 50 FT

Product Data:

Series:
  • 6340 Series
Applications:
  • Use with conveyor belt for fine material
Features:
  • Abrasion and Weather Resistant
  • 55-60 Durometer
  • 1,000 PSI Tensile Strength, 300% Elongation
  • Cut Widths (Not Extruded)
  • Temperature Range: -20 deg. F (-29 deg. C) to +180 deg. F (+83 deg. C)
Part Number Gauge Width Roll Length Weight per 50ft Roll
in. mm in. mm ft m lbs.
6340-1204 3/8" 9.53mm 4" 101.60mm 50ft. 15.24m 46 lbs.
6340-1205 3/8" 9.53mm 5" 127.00mm 50ft. 15.24m 58 lbs.
6340-1206 3/8" 9.53mm 6" 152.40mm 50ft. 15.24m 73 lbs.
6340-1208 3/8" 9.53mm 8" 203.20mm 50ft. 15.24m 82 lbs.
6340-1604 1/2" 12.70mm 4" 101.60mm 50ft. 15.24m 60 lbs.
6340-1605 1/2" 12.70mm 5" 127.00mm 50ft. 15.24m 75 lbs.
6340-1606 1/2" 12.70mm 6" 152.40mm 50ft. 15.24m 97 lbs.
6340-1608 1/2" 12.70mm 8" 203.20mm 50ft. 15.24m 109 lbs.
6340-1610 1/2" 12.70mm 10" 254.00mm 50ft. 15.24m 150 lbs.

Jason Industrial

Founded in 1958 in Fairfield, NJ, Jason Industrial quickly gained a solid reputation as a go to source for both industrial hose and power transmission belts. Jason Industrial offers a comprehensive portfolio of industrial hose, couplings and accessories along with hydraulic hose, fittings and crimping equipment.
