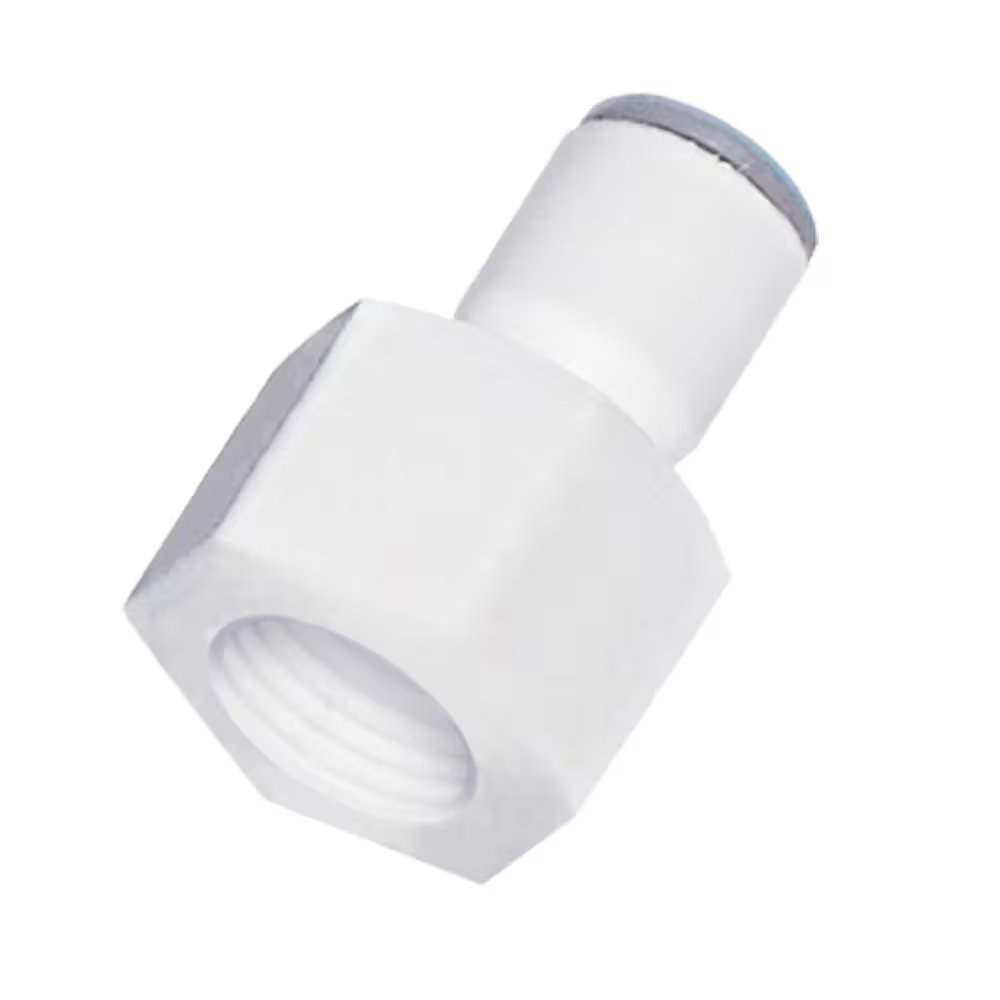

6325 56 133WP2 by Parker | Legris Stud Fitting | 1/4" Tube Size x UNS7/16-24 Female BSPP Thread | 36 mm Length | Straight | Polymer | Pack of 10

6325 56 133WP2 by Parker | Legris Stud Fitting | 1/4" Tube Size x UNS7/16-24 Female BSPP Thread | 36 mm Length | Straight | Polymer | Pack of 10

Sale price$31.74

Package Quantity: 10 Units

Buy more, save moreDiscounts applied in cart/checkout.
Technical Characteristics:
  • Compatible Fluids: Water, beverages, CO2 (inert use)
  • Working Pressure: Vacuum to 16 bar
  • Working Temperature: -10°C to +95°C
    -20° to +70°C for 16 mm to 10 bar
Advantages:
  • Bio-sourced polymer meeting food process regulations
  • Compliant with FDA, NSF, DM174, KTW, ACS standards
  • Easy-to-clean external surfaces
  • Free of bisphenol and phthalates
Regulations:
  • RoHS
  • REACH
  • FDA: 21 CFR
  • NSF: 51
  • NSF 61 - C HOT
  • 1935/2004
  • DM 174
  • ACS
  • KTW
Component Materials:
  • Body and Adapter: Bio-Based Polymer
  • Grey Release button: Technical Polymer
  • Gripping ring or collet (6501 and 6599): Stainless Steel
  • Seal: EPDM
Pressure and Temperature of the different diameters and related products of the LIQUIfit® Range
Part Number ØD C E F H (mm) H (in) Kg
6325 56 133WP2 1/4" UNS7/16-24 7 mm 9/16" 31 mm - .002 Kg
6325 60 133WP2 3/8" 7/16-24 7 mm 9/16" - 1.26" -

Additional Product Data:

Brand:
  • LIQUIfit®
Series:
  • 6325 Series
Shape:

Straight
