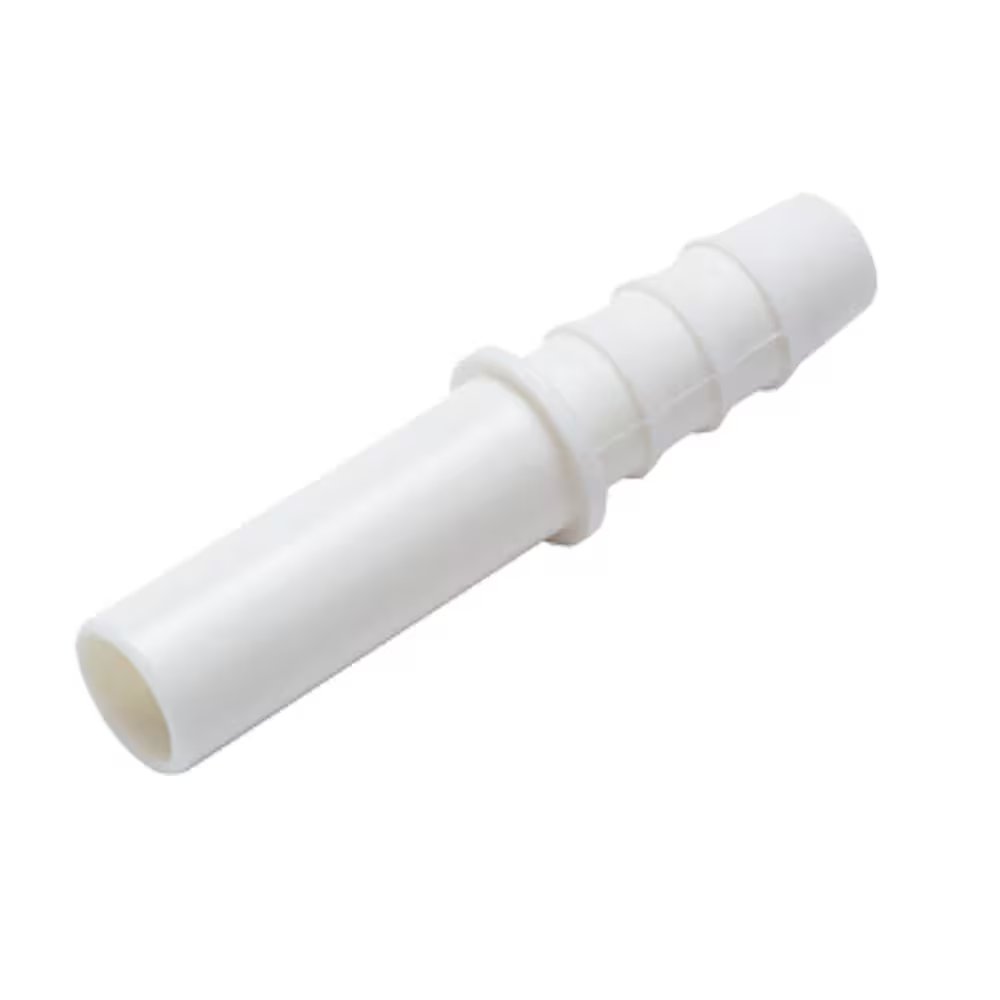

6322 10 07WP2 by Parker | Legris Plug-In Barb | 10mm Tube Stem x 7mm Barb | 50mm Length | Straight | Polymer | Pack of 10

6322 10 07WP2 by Parker | Legris Plug-In Barb | 10mm Tube Stem x 7mm Barb | 50mm Length | Straight | Polymer | Pack of 10

Sale price$27.66

by Parker Hannifin
LIQUIfit® Push-In Fittings / Plug-In Accessories:6322 Plug-In Barb Connector

Package Quantity: 10 Units

Buy More, Save More!
Quantity Price Each
20–39 $26.00
40–79 $23.51
80+ $20.75
Discounts applied in cart/checkout.

Product Data:

Brand:
  • LIQUIfit®
Series:
  • 6322 Series
Shape:

Straight
Technical Characteristics:
  • Compatible Fluids: Water, beverages, CO2 (inert use)
  • Working Pressure: Vacuum to 16 bar
  • Working Temperature: -10°C to +95°C
    -20° to +70°C for 16 mm to 10 bar
Advantages:
  • Bio-sourced polymer meeting food process regulations
  • Compliant with FDA, NSF, DM174, KTW, ACS standards
  • Easy-to-clean external surfaces
  • Free of bisphenol and phthalates
Regulations:
  • RoHS
  • REACH
  • FDA: 21 CFR
  • NSF: 51
  • NSF 61 - C HOT
  • 1935/2004
  • DM 174
  • ACS
  • KTW
Component Materials:
  • Body and Adapter: Bio-Based Polymer
  • Grey Release button: Technical Polymer
  • Gripping ring or collet (6501 and 6599): Stainless Steel
  • Seal: EPDM
Pressure and Temperature of the different diameters and related products of the LIQUIfit® Range
Part Number ØD ØD1 L L1 L2 Kg
6322 06 04WP2 6 mm 4 mm 39 mm 25 mm 17 mm .004 Kg
6322 08 06WP2 8 mm 5.75 mm 43 mm 25 mm 17 mm .005 Kg
6322 10 07WP2 10 mm 7 mm 50 mm 29.5 mm 22 mm .006 Kg
