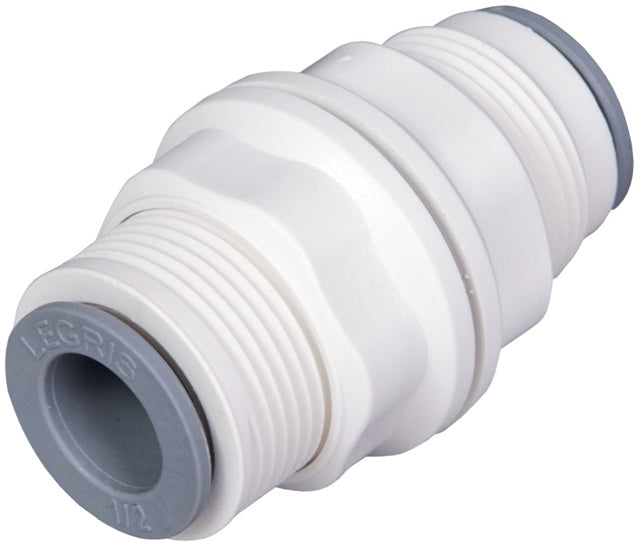

63166000WP2 by Dixon Valve | LIQUIfit™ Fitting | Bulkhead Union | 3/8" Tube OD x 3/8" Tube OD | Nylon

63166000WP2 by Dixon Valve | LIQUIfit™ Fitting | Bulkhead Union | 3/8" Tube OD x 3/8" Tube OD | Nylon

Sale price$12.48

Dixon Valve
LIQUIfit™ Fitting | Bulkhead Union

Suitable for water, potable liquids, and neutral gas applications: including water filtration, water coolers, coffee machines, and beverage dispensers.
Buy More, Save More!
Quantity Price Each
10–39 $11.73
40–79 $10.61
80+ $9.98
Discounts applied in cart/checkout.
Features:
  • EPDM seal secures connection with larger surface area than standard O-rings.
  • Engineered polymer allows superior mechanical strength and chemical resistance.
  • Full stainless gripping ring eliminates the need for locking clips.
  • Release button protects and supports tubing.
Material:
  • Nylon
Approvals:
  • FDA compliant
  • Meets California and Vermont <0.25% lead requirements
  • NSF-51 listed for contact with food
  • NSF-61 list C-Hot rated
Specifications:
  • Working Pressure:
  • 1/4"
    • 230 PSI from 35°F to 100°F (1.7°C to 38°C)
    • 150 PSI at 150°F (66°C)
    • 60 PSI at 200°F (93°C)
  • 3/8"
    • 190 PSI from 35°F to 100°F (1.7°C to 38°C)
    • 100 PSI at 150°F (66°C)
    • 60 PSI at 200°F (93°C)
  • 1/2"
    • 160 PSI from 35°F to 100°F (1.7°C to 38°C)
    • 100 PSI at 150°F (66°C)
    • 60 PSI at 200°F (93°C)
  • Maximum torque values for NPTF threads:
    • 1/8" and 1/4" 1.0 ft. lbs. / 1.5Nm
    • 3/8" and 1/2" 2.2 ft. lbs. / 3.0Nm
Part Number Tube O.D.
63165600WP2 1/4"
63166000WP2 3/8"
63166200WP2 1/2"

Product Data:

Brand:
  • LIQUIfit
Series:
  • 6316Series
Shape:

Straight
