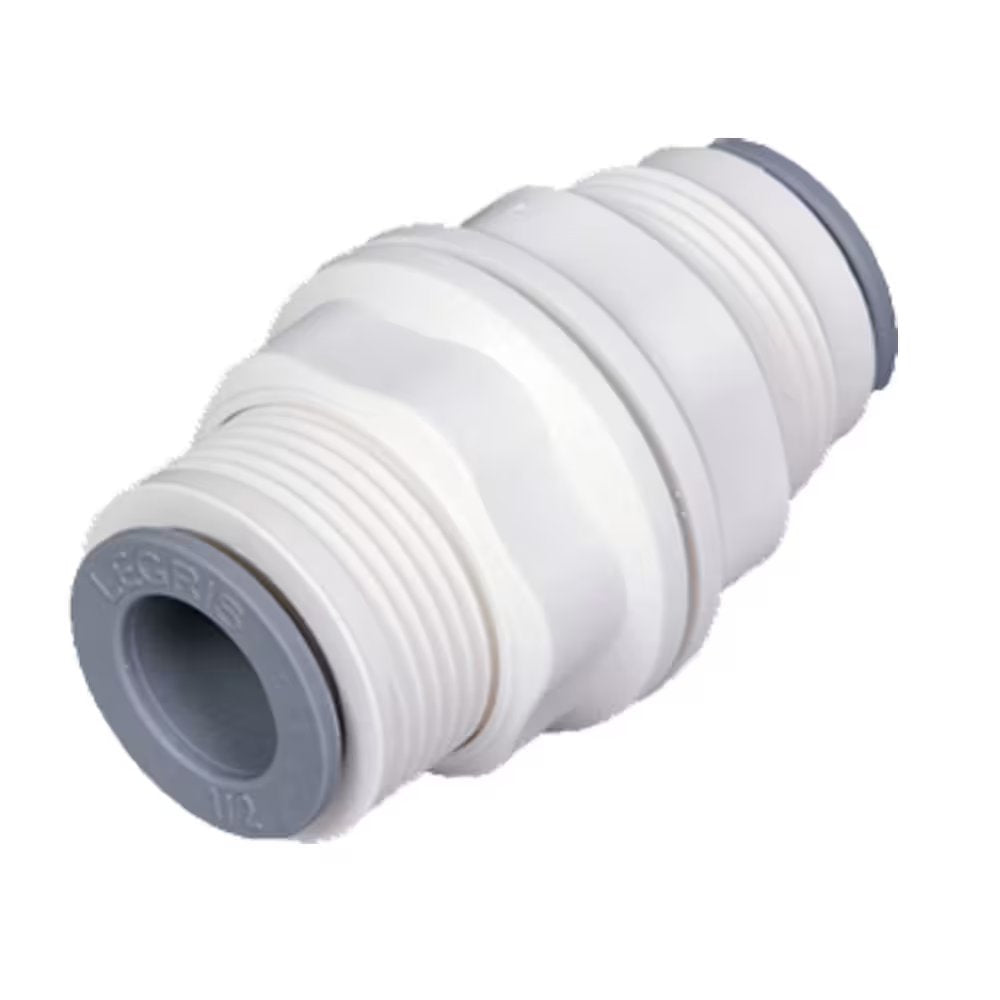

6316 08 00WP2 by Parker | Legris Bulkhead Connectors | 8 mm Tube Size | 37.5 mm Length | Straight | Polymer | Pack of 10

6316 08 00WP2 by Parker | Legris Bulkhead Connectors | 8 mm Tube Size | 37.5 mm Length | Straight | Polymer | Pack of 10

Sale price$47.14

by Parker Hannifin
LIQUIfit® Push-In Fittings / Tube-to-Tube Fittings:6316 Equal Bulkhead Union

Package Quantity: 10 Units

Buy More, Save More!
Quantity Price Each
20–39 $44.31
40–79 $40.07
80+ $35.36
Discounts applied in cart/checkout.

Product Data:

Brand:
  • LIQUIfit®
Series:
  • 6316 Series
Shape:

Straight
Technical Characteristics:
  • Compatible Fluids: Water, beverages, CO2 (inert use)
  • Working Pressure: Vacuum to 16 bar
  • Working Temperature: -10°C to +95°C
    -20° to +70°C for 16 mm to 10 bar
Advantages:
  • Bio-sourced polymer meeting food process regulations
  • Compliant with FDA, NSF, DM174, KTW, ACS standards
  • Easy-to-clean external surfaces
  • Free of bisphenol and phthalates
Regulations:
  • RoHS
  • REACH
  • FDA: 21 CFR
  • NSF: 51
  • NSF 61 - C HOT
  • 1935/2004
  • DM 174
  • ACS
  • KTW
Component Materials:
  • Body and Adapter: Bio-Based Polymer
  • Grey Release button: Technical Polymer
  • Gripping ring or collet (6501 and 6599): Stainless Steel
  • Seal: EPDM
Pressure and Temperature of the different diameters and related products of the LIQUIfit® Range
Part Number ØD F K (Max) L L1 ØT (Min) Kg
6316 04 00WP2 4 mm 13 mm 5.5 mm 15.5 mm 10.5 mm 10.5 mm .018 Kg
6316 06 00WP2 6 mm 15 mm 8.5 mm 20 mm 10 mm 12.5 mm .004 Kg
6316 08 00WP2 8 mm 18 mm 14.5 mm 27 mm 10.5 mm 15.5 mm .007 Kg
6316 10 00WP2 10 mm 22 mm 14.5 mm 30 mm 13 mm 18.5 mm .012 Kg
