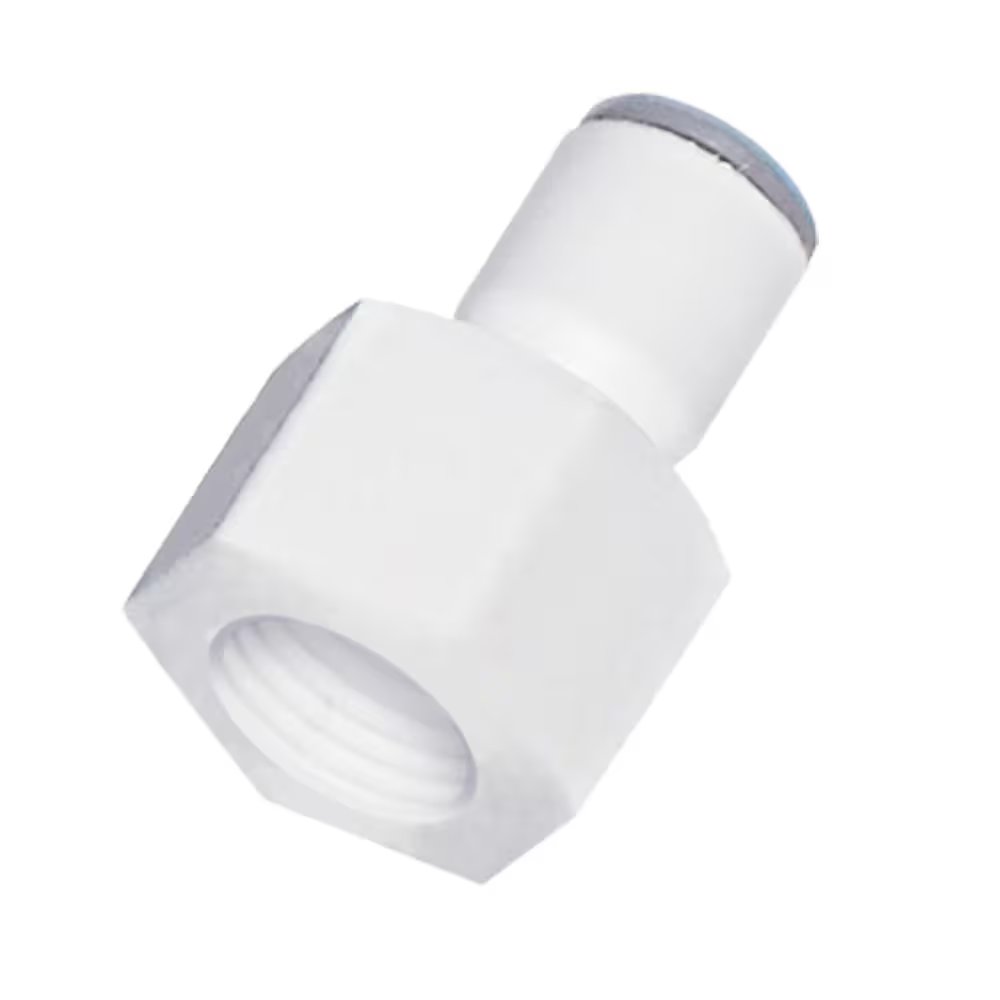

6315 08 13WP2 by Parker | Legris Stud Connector | 8 mm Tube Size x 1/4" Female BSPT Thread | 33.5 mm Length | Straight | Polymer | Pack of 10

6315 08 13WP2 by Parker | Legris Stud Connector | 8 mm Tube Size x 1/4" Female BSPT Thread | 33.5 mm Length | Straight | Polymer | Pack of 10

Sale price$38.65

by Parker Hannifin
LIQUIfit® Push-In Fittings / Stud Fittings:6315 Stud Connector, Female BSPT Thread

Package Quantity: 10 Units

Buy More, Save More!
Quantity Price Each
20–39 $36.33
40–79 $32.85
80+ $28.99
Discounts applied in cart/checkout.

Product Data:

Brand:
  • LIQUIfit®
Series:
  • 6315 Series
Shape:

Straight
Technical Characteristics:
  • Compatible Fluids: Water, beverages, CO2 (inert use)
  • Working Pressure: Vacuum to 16 bar
  • Working Temperature: -10°C to +95°C
    -20° to +70°C for 16 mm to 10 bar
Advantages:
  • Bio-sourced polymer meeting food process regulations
  • Compliant with FDA, NSF, DM174, KTW, ACS standards
  • Easy-to-clean external surfaces
  • Free of bisphenol and phthalates
Regulations:
  • RoHS
  • REACH
  • FDA: 21 CFR
  • NSF: 51
  • NSF 61 - C HOT
  • 1935/2004
  • DM 174
  • ACS
  • KTW
Component Materials:
  • Body and Adapter: Bio-Based Polymer
  • Grey Release button: Technical Polymer
  • Gripping ring or collet (6501 and 6599): Stainless Steel
  • Seal: EPDM
Pressure and Temperature of the different diameters and related products of the LIQUIfit® Range
Part Number ØD C E F H Kg
6315 06 10WP2 6 mm 1/8" 11 mm 13 mm 32 mm .003 Kg
6315 06 13WP2 6 mm 1/4" 14 mm 16 mm 33 mm .004 Kg
6315 08 13WP2 8 mm 1/4" 14 mm 16 mm 33.5 mm .004 Kg
6315 08 17WP2 8 mm 3/8" 14 mm 20 mm 36 mm .009 Kg

WP3 = high volumes (number of parts per bag: 40, 50 or 100, depending on the diameters).
