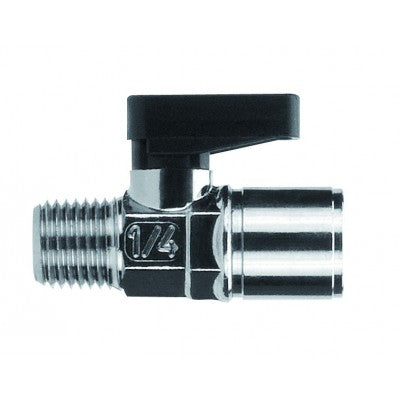

6310-1/8"-1/8 by AIGNEP | Ball Valves Series | Ball Valve | 1/8" Female BSPT x 1/8" Male BSPT

6310-1/8"-1/8 by AIGNEP | Ball Valves Series | Ball Valve | 1/8" Female BSPT x 1/8" Male BSPT

Sale price$11.15
Buy More, Save More!
Quantity Price Each
10–39 $10.48
40–79 $9.48
80+ $8.36
Discounts applied in cart/checkout.

Product Data:

Series:
  • Ball Valves Series
Shape:

Straight

Ends Configuration:
  • 1/8in Female BSPT
  • 1/8in Male BSPT

Male x Female

Pressure Rating: Vacuum - 290 PSI
Temperature Range: 0-176° ° F
Media: Air, oil, water, gas (Consult factory for seal compatibility)
Body: Chrome Plated Brass
Thread Type: BSPT

Product Number A NPTF Color Plate Thread Type F L B NPTF IN Orifice Es C F H
6310-1/8-1/8 1/8" Composite BSPT 0.295" 36 mm 1/8" 5.5 mm 14 mm 19 mm 7.5 mm 21 mm
6310-1/4-1/4 1/4" Composite BSPT 0.433" 43 mm 1/4" 5.5 mm 14 mm 19 mm 11 mm 21 mm
6310-3/8-3/8 3/8" Composite BSPT 0.452" 46 mm 3/8" 8 mm 18 mm 19 mm 11.5 mm 22 mm
6310-1/2-1/2 1/2" Composite BSPT 0.590" 57 mm 1/2" 10 mm 22 mm 26 mm 15 mm 30.5 mm

AIGNEP

For over 40 years, AIGNEP has been a leading manufacturer of compressed air and industrial fluid fittings. Our products are widely known for their high quality and Italian design: pneumatic cylinders and solenoid valves, fluid process control valves “FLUIDITY”, compressed air pipeline “INFINITY”, fittings and quick couplings for every fluid media.
