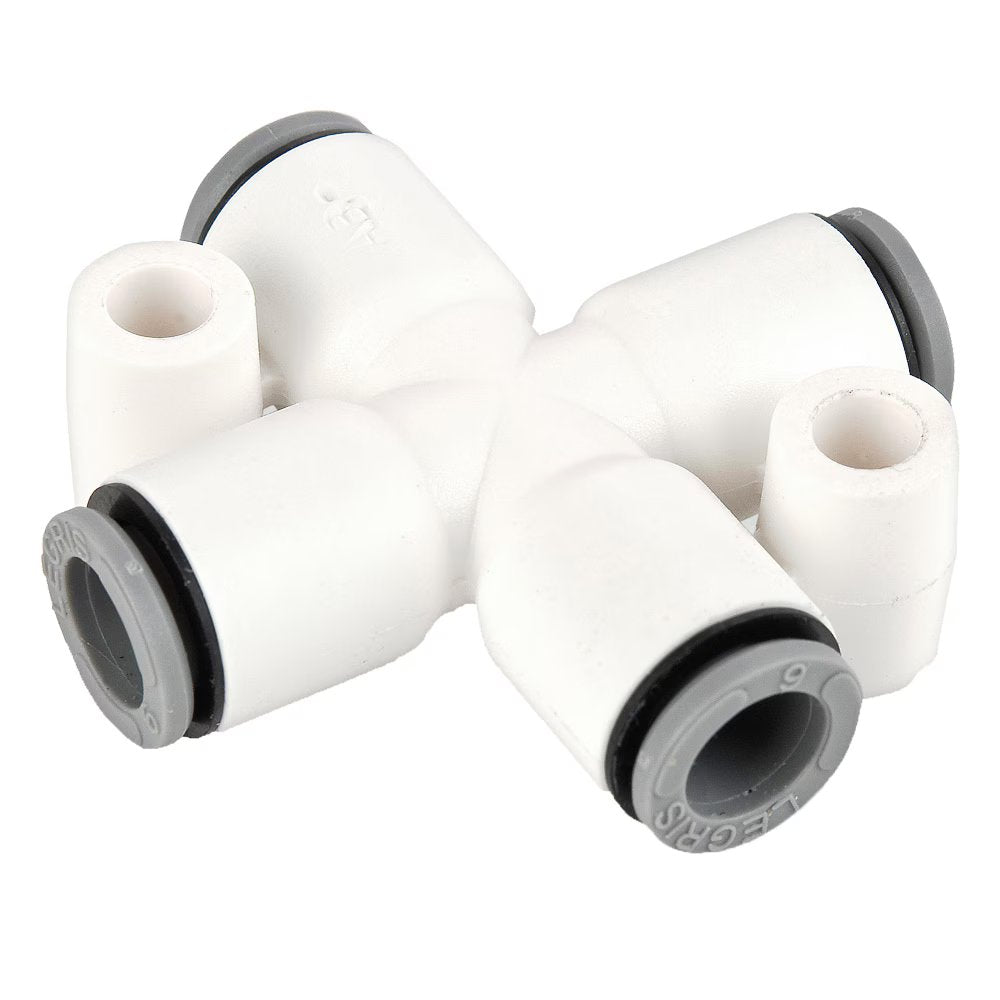

6307 56 00WP2 by Parker | Legris Tube-to-Tube Fitting | 1/4" Tube Size | 45 mm Length | Cross | Polymer | Pack of 10

6307 56 00WP2 by Parker | Legris Tube-to-Tube Fitting | 1/4" Tube Size | 45 mm Length | Cross | Polymer | Pack of 10

Sale price$84.39

by Parker Hannifin
LIQUIfit® Push-In Fittings / Tube-to-Tube Fittings:6307 Equal Cross

Package Quantity: 10 Units

Buy More, Save More!
Quantity Price Each
20–29 $79.33
30–59 $71.73
60+ $63.29
Discounts applied in cart/checkout.

Product Data:

Brand:
  • LIQUIfit®
Series:
  • 6307 Series
Shape:

Cross
Technical Characteristics:
  • Compatible Fluids: Water, beverages, CO2 (inert use)
  • Working Pressure: Vacuum to 16 bar
  • Working Temperature: -10°C to +95°C
    -20° to +70°C for 16 mm to 10 bar
Advantages:
  • Bio-sourced polymer meeting food process regulations
  • Compliant with FDA, NSF, DM174, KTW, ACS standards
  • Easy-to-clean external surfaces
  • Free of bisphenol and phthalates
Regulations:
  • RoHS
  • REACH
  • FDA: 21 CFR
  • NSF: 51
  • NSF 61 - C HOT
  • 1935/2004
  • DM 174
  • ACS
  • KTW
Component Materials:
  • Body and Adapter: Bio-Based Polymer
  • Grey Release button: Technical Polymer
  • Gripping ring or collet (6501 and 6599): Stainless Steel
  • Seal: EPDM
Pressure and Temperature of the different diameters and related products of the LIQUIfit® Range
Part Number ØD G H N ØT Kg
6307 06 00WP2 6 mm 11 mm 36 mm 20 mm 4.2 mm .005 Kg
6307 08 00WP2 8 mm 13.5 mm 45 mm 22.5 mm 4.2 mm .020 Kg
6307 56 00WP2 1/4" mm 11 mm 36 mm 20 mm 4.2 mm .010 Kg
