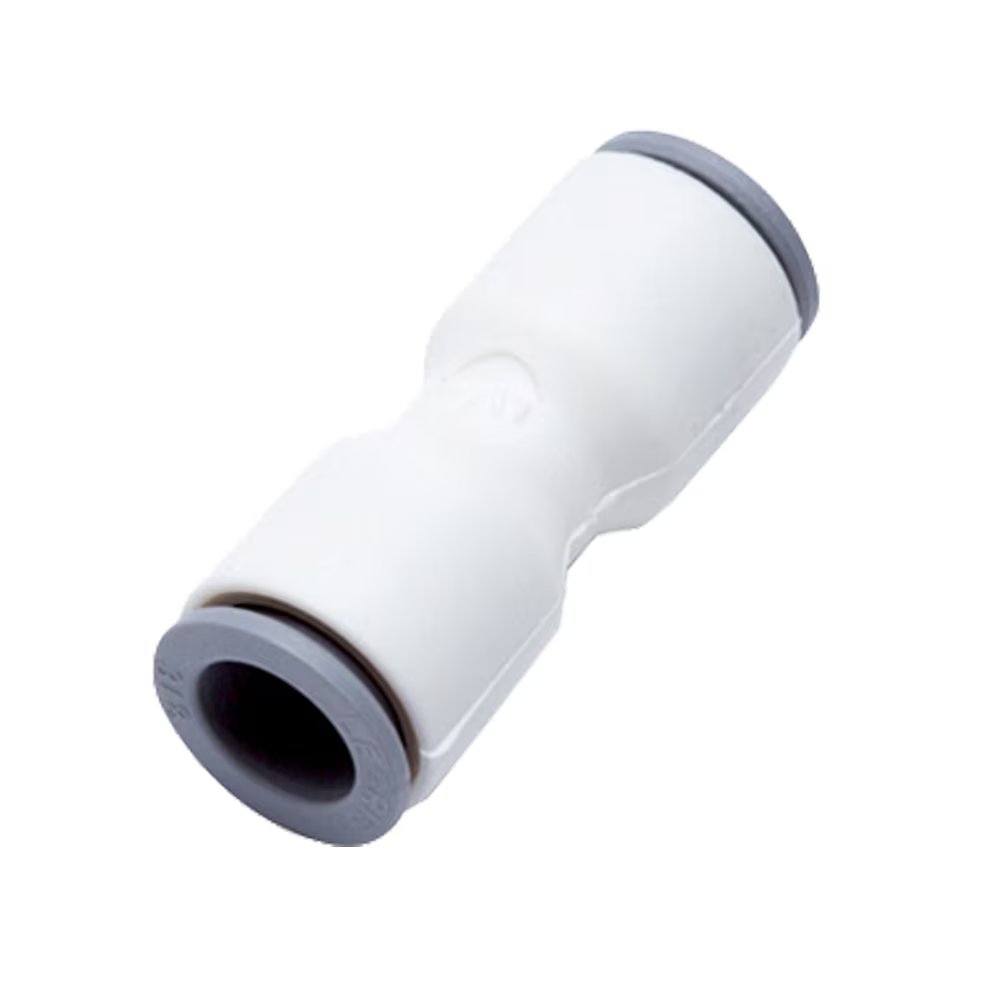

6306 62 00WP2 by Parker | Legris Union Connector | 1/2" Tube Size x 1/2" Tube Size | 56mm Length | Straight | Polymer | Pack of 5
by Parker Hannifin
LIQUIfit® Push-In Fittings / Tube-to-Tube Fittings:6306 Equal and Unequal Union Connector
Package Quantity: 5 Units
| Buy More, Save More! | |
| Quantity | Price Each |
| 20–39 | $16.06 |
| 40–79 | $14.52 |
| 80+ | $12.81 |
Discounts applied in cart/checkout.
Product Data:
Brand:
Series:
Shape:
Straight
Ends Configuration:
Material(s):
Seal Material(s):
Special Properties:
| Technical Characteristics: |
|
||||||||
|---|---|---|---|---|---|---|---|---|---|
| Advantages: |
|
||||||||
| Regulations: |
|
||||||||
| Component Materials: |
|
||||||||
| Pressure and Temperature of the different diameters and related products of the LIQUIfit® Range |
 |
||||||||
 |
|||||||
|---|---|---|---|---|---|---|---|
| Part Number | ØD | ØD1 | G (mm) | G (in) | L (mm) | L (in) | Kg |
| 6306 08 60WP2 | 5/16" | 3/8" | 16 mm | - | 42 mm | - | .008 Kg |
| 6306 08 62WP2 | 5/16" | 1/2" | 22 mm | - | 55 mm | - | .018 Kg |
| 6306 56 00WP2 | 5/16" | 3/8" | 16 mm | - | 42 mm | - | .008 Kg |
| 6306 56 08WP2 | 1/4" | 5/16" | - | .53" | - | 1.46" | - |
| 6306 56 60WP2 | 1/4" | 3/8" | 16 mm | - | 41 mm | - | .007 Kg |
| 6306 60 00WP2 | 3/8" | 3/8" | 16 mm | - | 42 mm | - | .006 Kg |
| 6306 60 62WP2 | 3/8" | `1/2" | 22 mm | - | 56 mm | - | .020 Kg |
| 6306 62 00WP2 | 1/2" | 1/2" | 22 mm | - | 57 mm | - | .016 Kg |
