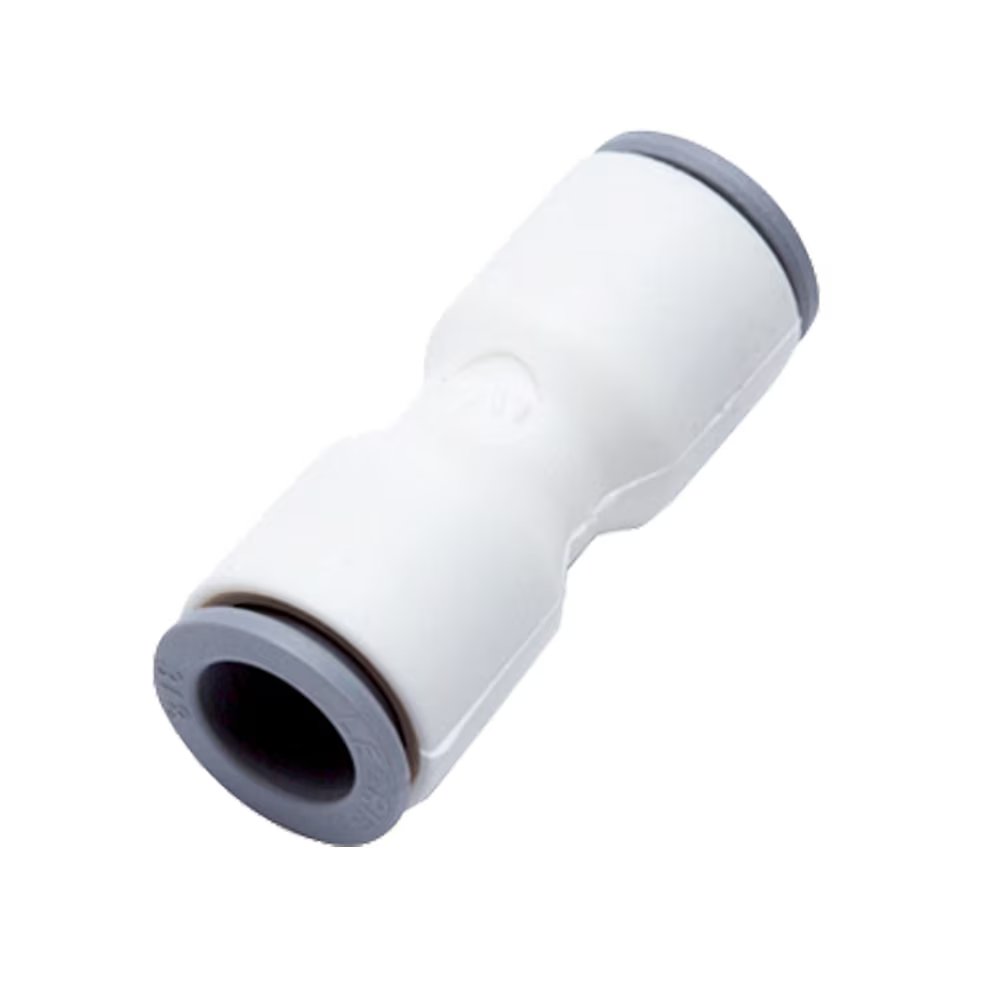

6306 10 12WP2 by Parker | Legris Tube-to-Tube Connector | 10 mm Tube Size x 12 mm Tube Size | 50 mm Length | Straight | Polymer | Pack of 5

6306 10 12WP2 by Parker | Legris Tube-to-Tube Connector | 10 mm Tube Size x 12 mm Tube Size | 50 mm Length | Straight | Polymer | Pack of 5

Sale price$28.99

by Parker Hannifin
LIQUIfit® Push-In Fittings / Tube-to-Tube Fittings:6306 Equal and Unequal Tube-to-Tube Connector

Package Quantity: 5 Units

Buy More, Save More!
Quantity Price Each
20–39 $27.25
40–79 $24.64
80+ $21.74
Discounts applied in cart/checkout.

Product Data:

Brand:
  • LIQUIfit®
Series:
  • 6306 Series
Shape:

Straight
Technical Characteristics:
  • Compatible Fluids: Water, beverages, CO2 (inert use)
  • Working Pressure: Vacuum to 16 bar
  • Working Temperature: -10°C to +95°C
    -20° to +70°C for 16 mm to 10 bar
Advantages:
  • Bio-sourced polymer meeting food process regulations
  • Compliant with FDA, NSF, DM174, KTW, ACS standards
  • Easy-to-clean external surfaces
  • Free of bisphenol and phthalates
Regulations:
  • RoHS
  • REACH
  • FDA: 21 CFR
  • NSF: 51
  • NSF 61 - C HOT
  • 1935/2004
  • DM 174
  • ACS
  • KTW
Component Materials:
  • Body and Adapter: Bio-Based Polymer
  • Grey Release button: Technical Polymer
  • Gripping ring or collet (6501 and 6599): Stainless Steel
  • Seal: EPDM
Pressure and Temperature of the different diameters and related products of the LIQUIfit® Range
Part Number ØD ØD1 G G1 L Kg
6306 04 00WP2 4 mm 4 mm - 8.5 mm 26.5 mm .002 Kg
6306 04 06WP2 4 mm 6 mm - 10.5 mm 29 mm .002 Kg
6306 04 08WP2 4 mm 8 mm - 13.5 mm 37 mm .005 Kg
6306 06 00WP2 6 mm 6 mm - 10.5 mm 30 mm .004 Kg
6306 06 08WP2 6 mm 8 mm 10.6 mm 13.5 mm 34,1 mm .005 Kg
6306 06 10WP2 6 mm 10 mm - 16 mm 42 mm .007 Kg
6306 08 00WP2 8 mm 8 mm - 13.5 mm 37 mm .004 Kg
6306 08 10WP2 8 mm 10 mm - 16 mm 42 mm .007 Kg
6306 08 12WP2 8 mm 12 mm - 19 mm 50 mm .012 Kg
6306 10 00WP2 10 mm 10 mm - 16 mm 42 mm .009 Kg
6306 10 12WP2 10 mm 12 mm - 19 mm 50 mm .013 Kg
6306 12 00WP2 12 mm 12 mm - 19 mm 50.5 mm .009 Kg
