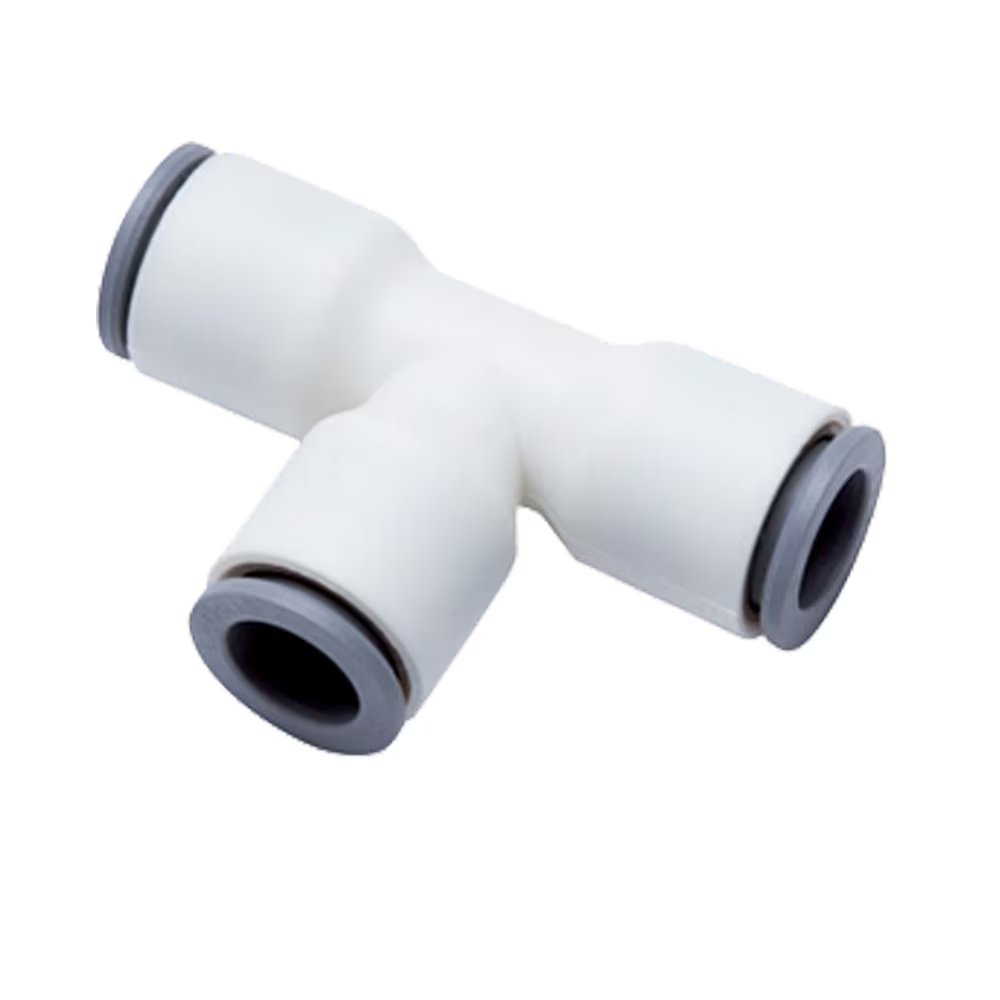

6304 62 00WP2 by Parker | Legris Union Tube-to-Tube Fitting | 1/2" Tube Size x 1/2" Tube Size | 72mm Length | Tee | Polymer | Pack of 5

6304 62 00WP2 by Parker | Legris Union Tube-to-Tube Fitting | 1/2" Tube Size x 1/2" Tube Size | 72mm Length | Tee | Polymer | Pack of 5

Sale price$25.49

by Parker Hannifin
LIQUIfit® Push-In Fittings / Tube-to-Tube Fittings:6304 Equal and Unequal Union Tee

Package Quantity: 5 Units

Buy More, Save More!
Quantity Price Each
20–39 $23.96
40–79 $21.67
80+ $19.12
Discounts applied in cart/checkout.

Product Data:

Brand:
  • LIQUIfit®
Series:
  • 6304 Series
Shape:

Tee
Technical Characteristics:
  • Compatible Fluids: Water, beverages, CO2 (inert use)
  • Working Pressure: Vacuum to 16 bar
  • Working Temperature: -10°C to +95°C
    -20° to +70°C for 16 mm to 10 bar
Advantages:
  • Bio-sourced polymer meeting food process regulations
  • Compliant with FDA, NSF, DM174, KTW, ACS standards
  • Easy-to-clean external surfaces
  • Free of bisphenol and phthalates
Regulations:
  • RoHS
  • REACH
  • FDA: 21 CFR
  • NSF: 51
  • NSF 61 - C HOT
  • 1935/2004
  • DM 174
  • ACS
  • KTW
Component Materials:
  • Body and Adapter: Bio-Based Polymer
  • Grey Release button: Technical Polymer
  • Gripping ring or collet (6501 and 6599): Stainless Steel
  • Seal: EPDM
Pressure and Temperature of the different diameters and related products of the LIQUIfit® Range
Part Number ØD ØD1 G H L/2 Kg
6304 56 00WP2 1/4" 1/4" 11 mm 24 mm 18 mm .002 kg
6304 60 00WP2 3/8" 3/8" 16 mm 34 mm 26 mm .009 kg
6304 60 56WP2 3/8" 1/4" 16 mm 34 mm 26 mm .011 kg
6304 62 00WP2 1/2" 1/2" 22 mm 47 mm 36 mm .027 kg
6304 62 60WP2 1/2" 3/8" 22 mm 47 mm 36 mm .009 kg

5/32” (4mm) and 5/16” (8mm) also available
