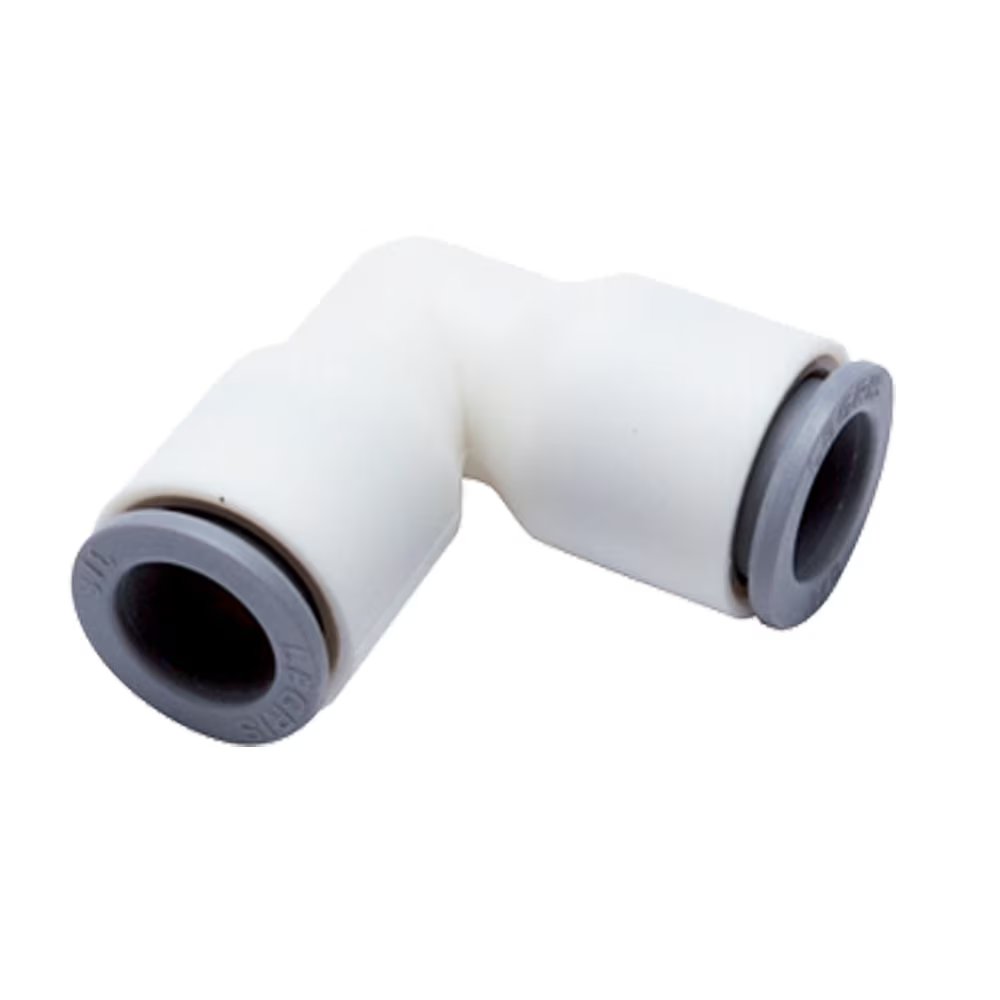

6302 10 12WP2 by Parker | Legris Tube-to-Tube Fitting | 10 mm Tube Size x 12 mm Tube Size | 40.5 mm Length | 90° Elbow | Polymer | Pack of 5

6302 10 12WP2 by Parker | Legris Tube-to-Tube Fitting | 10 mm Tube Size x 12 mm Tube Size | 40.5 mm Length | 90° Elbow | Polymer | Pack of 5

Sale price$29.82

by Parker Hannifin
LIQUIfit® Push-In Fittings / Tube-to-Tube Fittings:6302 Equal and Unequal Elbow

Package Quantity: 5 Units

Buy More, Save More!
Quantity Price Each
20–39 $28.03
40–79 $25.35
80+ $22.37
Discounts applied in cart/checkout.

Product Data:

Brand:
  • LIQUIfit®
Series:
  • 6302 Series
Shape:

90° Elbow
Technical Characteristics:
  • Compatible Fluids: Water, beverages, CO2 (inert use)
  • Working Pressure: Vacuum to 16 bar
  • Working Temperature: -10°C to +95°C
    -20° to +70°C for 16 mm to 10 bar
Advantages:
  • Bio-sourced polymer meeting food process regulations
  • Compliant with FDA, NSF, DM174, KTW, ACS standards
  • Easy-to-clean external surfaces
  • Free of bisphenol and phthalates
Regulations:
  • RoHS
  • REACH
  • FDA: 21 CFR
  • NSF: 51
  • NSF 61 - C HOT
  • 1935/2004
  • DM 174
  • ACS
  • KTW
Component Materials:
  • Body and Adapter: Bio-Based Polymer
  • Grey Release button: Technical Polymer
  • Gripping ring or collet (6501 and 6599): Stainless Steel
  • Seal: EPDM
Pressure and Temperature of the different diameters and related products of the LIQUIfit® Range
Part Number ØD ØD1 G L Kg
6302 04 00WP2 4 mm 4 mm 8.5 mm 19 mm .002 Kg
6302 04 06WP2 4 mm 6 mm 10.5 mm 24 mm .004 Kg
6302 06 00WP2 6 mm 6 mm 10.5 mm 24 mm .004 Kg
6302 06 08WP2 6 mm 8 mm 13.5 mm 29.5 mm .006 Kg
6302 08 00WP2 8 mm 8 mm 13.5 mm 29 mm .004 Kg
6302 08 10WP2 8 mm 10 mm 16 mm 34.5 mm .008 Kg
6302 10 00WP2 10 mm 10 mm 16 mm 24.5 mm .005 Kg
6302 10 12WP2 10 mm 12 mm 19 mm 40.5 mm .013 Kg
6302 12 00WP2 12 mm 12 mm 19 mm 40.5 mm .010 Kg

Parker Fluid System Connectors Division

Parker Fluid System Connectors Division delivers quality and service from design to delivery. Their engineers leverage advanced technology to create prototypes, refine designs, and improve manufacturing efficiencies, offering tailored solutions. ISO 9001 certified and focused on sustainability, they utilize recyclable materials and a brass chip recycling program to protect the environment and control costs. Flexible assembly, packaging, and shipping systems support diverse needs, including kitting and custom labeling, ensuring high-quality products and outstanding customer support.
