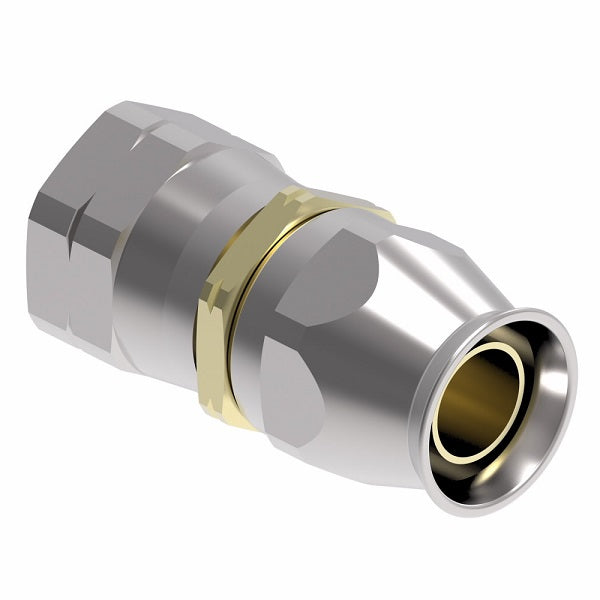

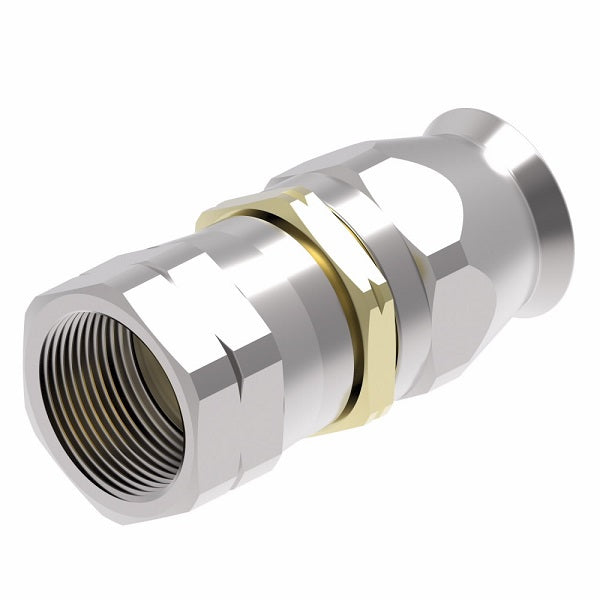

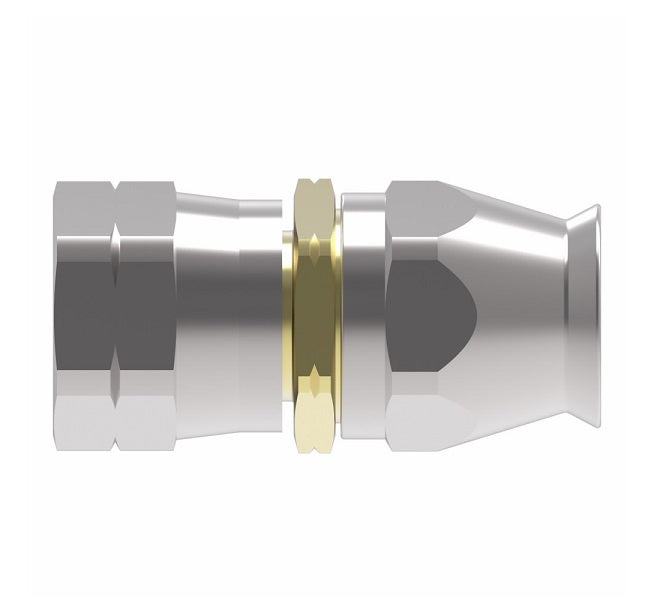

63-190990-5 Aeroquip by Danfoss | Female SAE 45° Swivel Super Gem PTFE Reusable Hose Fitting | -05 Female SAE 45° Swivel x -05 Reusable Hose End | Steel & Brass | Pack of 10
Package Quantity: 10 Units
Buy more, save moreDiscounts applied in cart/checkout.
| Technical Info: | |||
|---|---|---|---|
 |
||||||
|---|---|---|---|---|---|---|
| Steel & Brass Part Number |
Hose Size | Thread | A | D | EØ | Sleeve Brass Part Number |
| 63-190990-4 | -04 | 7/16-20 | 1.58" | 1.12" | 0.16" | - |
| 63-190990-5 | -05 | 1/2-20 | 1.68" | 1.17" | 0.23" | - |
| 63-190990-6 | -06 | 5/8-18 | 1.77" | 1.25" | 0.28" | - |
| 63-190990-8 | -08 | 3/4-16 | 1.98" | 1.36" | 0.38" | - |
| 63-190990-10 | -10 | 7/8-14 | 2.22" | 1.54" | 0.47" | - |
| 63-190990-12 | -12 | 1-1/16-12 | 2.33" | 1.67" | 0.59" | - |
Additional Product Data:
Shape:
Straight
Ends Configuration:
Material(s):
Special Properties:
Compatible Series:
