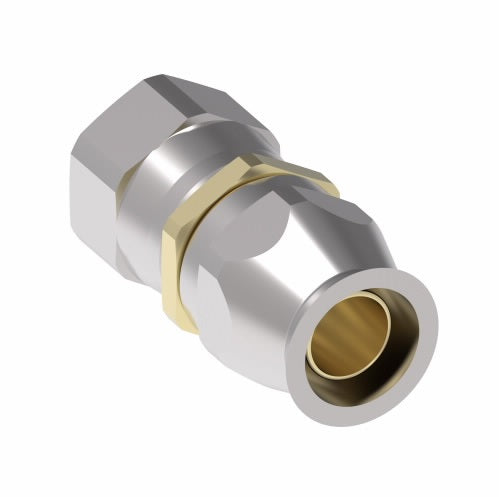

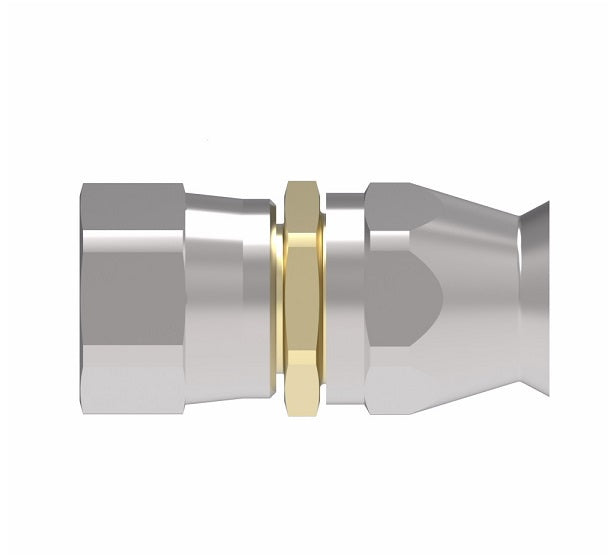

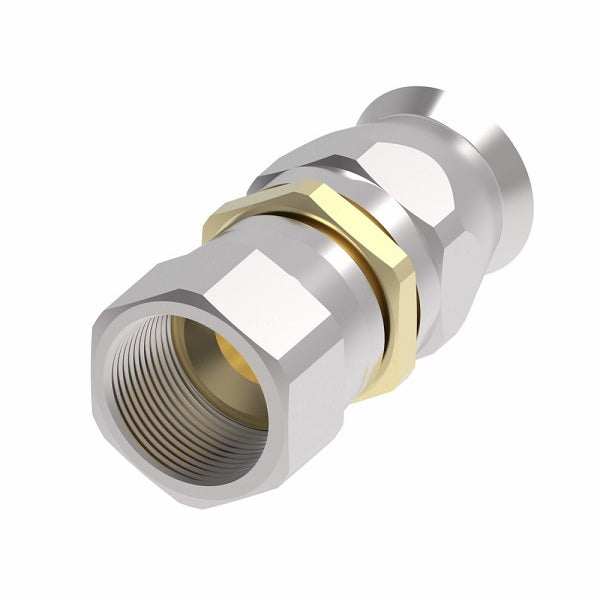

63-190600-6 Aeroquip by Danfoss | Female 37° JIC Swivel Super Gem PTFE Reusable Hose Fitting | -06 Female 37° JIC Swivel x -06 Reusable Hose End | Steel & Brass
Aeroquip® by Danfoss
Super Gem Reusable Hose Fitting for PTFE Hose - Female 37° JIC Swivel - Straight
(Formerly Eaton Aeroquip)
| Buy More, Save More! | |
| Quantity | Price Each |
| 20–39 | $20.72 |
| 40–79 | $18.73 |
| 80+ | $16.53 |
Discounts applied in cart/checkout.
Product Data:
Shape:
Straight
Ends Configuration:
Material(s):
Special Properties:
Compatible Series:
| Technical Info: | |||
|---|---|---|---|
 |
|||||||||
|---|---|---|---|---|---|---|---|---|---|
| Steel & Brass Part Number |
Stainless Steel Part Number |
Steel Part Number |
Hose Size | Thread | A | D | EØ | Sleeve Brass Part Number |
Sleeve Stainless Steel Part Number |
| - | - | 190600-3S | -03 | 3/8-24 | 1.38" | 1.04" | 0.09" | 900568-3B | - |
| 63-190600-4 | 190600-4C | 190600-4S | -04 | 7/16-20 | 1.58" | 1.13" | 0.16" | 900568-4B | 900568-4C |
| 63-190600-5 | 190600-5C | - | -05 | 1/2-20 | 1.68" | 1.17" | 0.23" | 900568-5B | 900568-5C |
| 63-190600-6 | 190600-6C | 190600-6S | -06 | 9/16-18 | 1.74" | 1.22" | 0.26" | 900568-6B | 900568-6C |
| 63-190600-8 | 190600-8C | 190600-8S | -08 | 3/4-16 | 1.98" | 1.35" | 0.38" | 900568-8B | 900568-8C |
| 63-190600-10 | 190600-10C | 190600-10S | -10 | 7/8-14 | 2.22" | 1.54" | 0.47" | 900568-10B | 900568-10C |
| 63-190600-12 | 190600-12C | 190600-12S | -12 | 1-1/16-12 | 2.33" | 1.67" | 0.59" | 900568-12B | 900568-12C |
| 63-190600-16 | 190600-16C | - | -16 | 1-5/16-12 | 2.52" | 1.91" | 0.83" | 900568-16B | 900568-16C |
| 63-190600-20 | - | - | -20 | 1-5/8-12 | 2.92" | 2.27" | 1.06" | 900568-20B | - |
