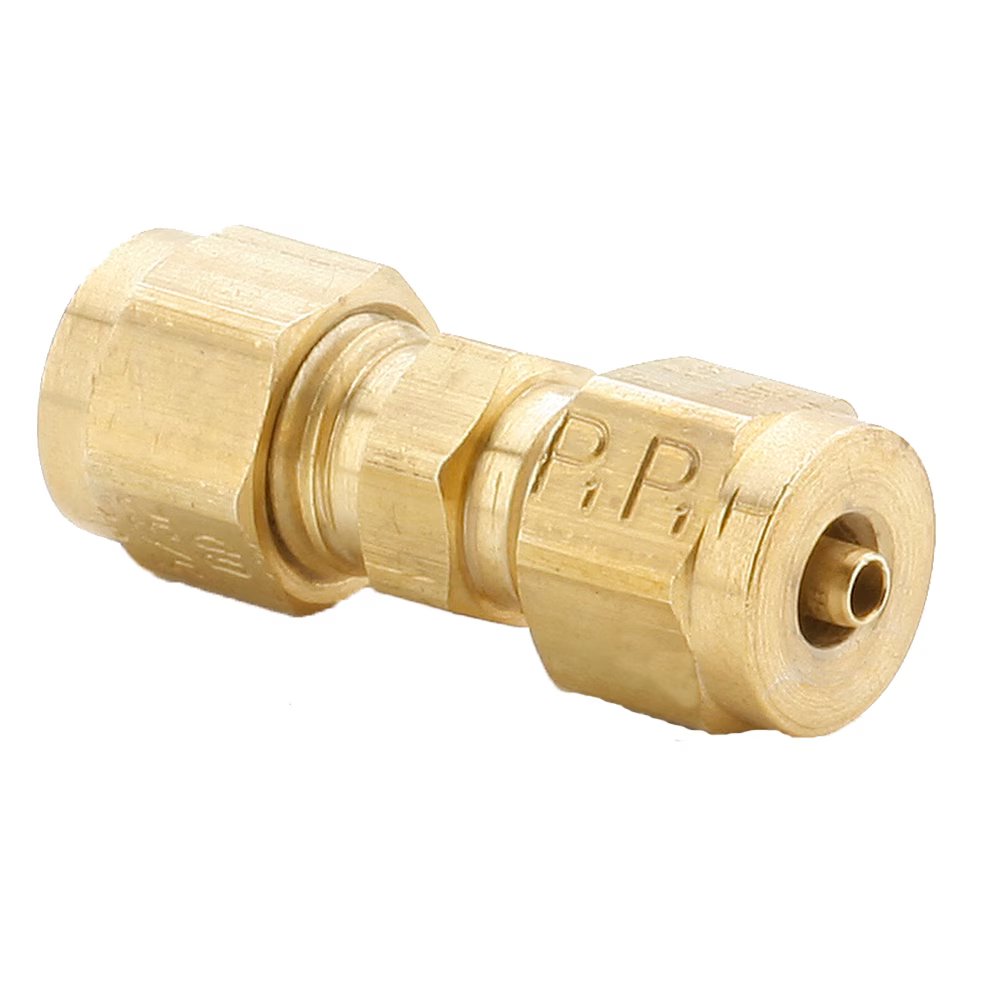

62TF-2 by Parker | Transmission Fitting | 1/8" Tube Size Union x 5/16" Thread | 1.04" Length | Straight | Brass | Pack of 25

62TF-2 by Parker | Transmission Fitting | 1/8" Tube Size Union x 5/16" Thread | 1.04" Length | Straight | Brass | Pack of 25

Sale price$304.59

by Parker Hannifin
Transmission Fittings:Union 62TF

Package Quantity: 25 Units

Buy More, Save More!
Quantity Price Each
5–14 $286.31
15–29 $258.90
30+ $228.44
Discounts applied in cart/checkout.

Product Data:

Series:
  • 62TF Series
Shape:

Straight

Ends Configuration:
  • 1/8in Tube Compression
  • 1/8in Tube Compression
  • Some Ends Match
Product Features:
  • Brass Body
  • D.O.T. Approved with Staked in Tube Support
  • 3/16” & 5/32” Tube sizes
  • Slotted Sleeve
  • Nickel Plated Versions Available for Bio-diesel
Markets:
  • Heavy Duty Truck
Applications:
  • Air Shift Transmissions
  • Seat Controls
  • Dash Controls
Specification:
Pressure Range: Up to 150 PSI (10.3 bar)
Temperature Range: -40° to +200° F (-40° to +93.3° C)
Compatible Tubing:
  • SAE J844 Type A & B nylon tubing
Part Number Tube Size D L Straight Thread M Hex (C) Hex (B)
62TF-2 1/8" .109" 1.04" 5/16"-24 .68" 5/16" 3/8"
62TF-5/32 5/32" .068" 1.04" 5/16"-24 .68" 5/16" 3/8"

Parker Fluid System Connectors Division

Parker Fluid System Connectors Division delivers quality and service from design to delivery. Their engineers leverage advanced technology to create prototypes, refine designs, and improve manufacturing efficiencies, offering tailored solutions. ISO 9001 certified and focused on sustainability, they utilize recyclable materials and a brass chip recycling program to protect the environment and control costs. Flexible assembly, packaging, and shipping systems support diverse needs, including kitting and custom labeling, ensuring high-quality products and outstanding customer support.
