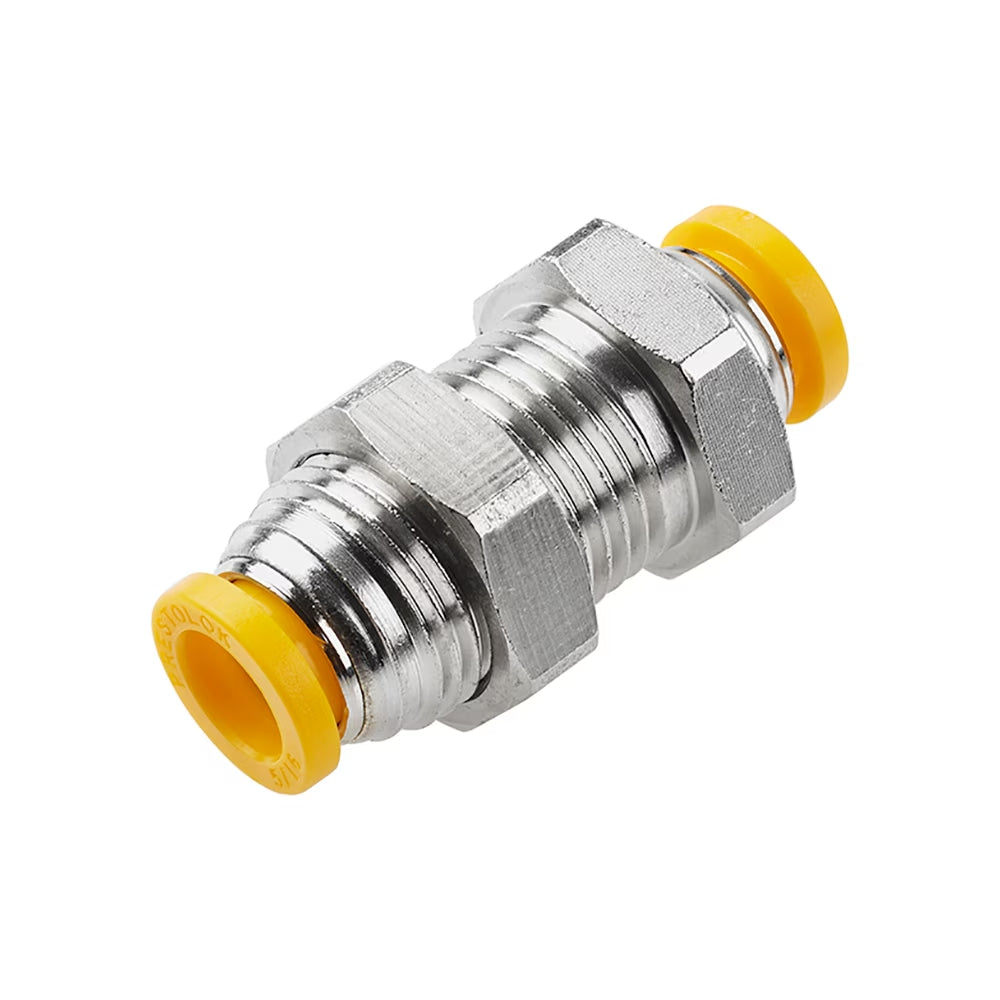

62PLPBH-10M by Parker | Prestolok PLP Push-to-Connect Fittings | Bulkhead Unions | 10mm Bulkhead Union Tube Size | 19mm Bulkhead Hole Dia. | 7/8" Hex | 40.91mm Length | 7.925mm Dia. | Straight | Nickel-Plated Brass | Pack of 10
by Parker Hannifin
Push-to-Connect Fittings:62PLPBH Bulkhead Union – Metric
Package Quantity: 10 Units
| Buy More, Save More! | |
| Quantity | Price Each |
| 5–19 | $130.11 |
| 20–59 | $117.66 |
| 60+ | $103.82 |
Discounts applied in cart/checkout.
Product Data:
Series:
Shape:
Straight
Ends Configuration:
Material(s):
Seal Material(s):
Special Properties:
| Product Features: |
|
|---|---|
| Markets: |
|
| Compatible Media: |
|
| Pressure Range: | Up to 300 PSI (20.6 bar) depending on tubing |
| Temperature Range: | 0° to +200° F (-17.7° to 93.3° C) |
| Vacuum Rating: | 28" Hg |
| Compatible Tubing: |
|
 |
||||||
|---|---|---|---|---|---|---|
| Part Number | Tube Size (mm) | Bulkhead Hole Diameter (B) | Hex (C) | Max. (P) | L | D |
| 62PLPBH-4M | 4 mm | 11 mm | 9/16" | 9.68 mm | 35.49 mm | 3.175 mm |
| 62PLPBH-6M | 6 mm | 14 mm | 11/16" | 7.57 mm | 34.07 mm | 4.775 mm |
| 62PLPBH-8M | 8 mm | 16 mm | 3/4" | 14.67 mm | 41.79 mm | 6.350 mm |
| 62PLPBH-10M | 10 mm | 19 mm | 7/8" | 11.66 mm | 40.91 mm | 7.925 mm |
| 62PLPBH-12M | 12 mm | 22 mm | 1" | 14.99 mm | 50.94 mm | 9.525 mm |
