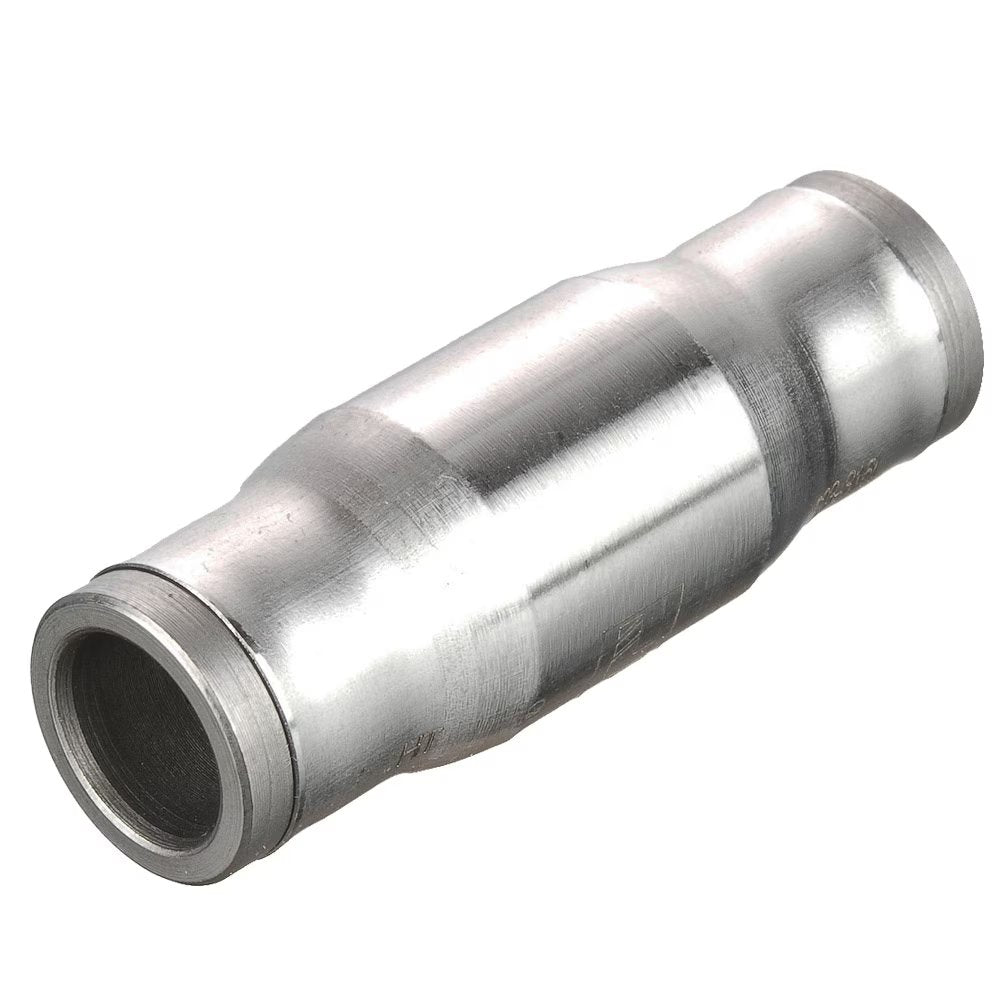

62PLS-12M by Parker | Prestolok PLS Push-to-Connect Fittings | Tube to Tube Fittings | 12 mm Tube Size | 49.50 mm Length | 19.50 mm Height | 19.50 mm Width | Straight | Stainless Steel | Pack of 2

62PLS-12M by Parker | Prestolok PLS Push-to-Connect Fittings | Tube to Tube Fittings | 12 mm Tube Size | 49.50 mm Length | 19.50 mm Height | 19.50 mm Width | Straight | Stainless Steel | Pack of 2

Sale price$207.29

by Parker Hannifin
Prestolok PLS Stainless Steel Push-to-Connect Fittings:62PLS Union - Metric Tube

Package Quantity: 2 Units

Buy More, Save More!
Quantity Price Each
20–29 $194.85
30–59 $176.20
60+ $155.47
Discounts applied in cart/checkout.

Product Data:

Series:
  • 62PLS Series
Shape:

Straight

Ends Configuration:
  • 12mm Push-to-Connect
  • 12mm Push-to-Connect
  • Some Ends Match
Product Features:
  • Stainless steel 316L collet
  • Stainless steel 316L body
  • FKM seal
  • Stainless steel 316L backup washer
  • Chemical, corrosion, and abrasion resistance
  • Hygienic design reduces retention zones for
  • Easy cleaning
  • NPT, BSPT, BSPP, and metric threads
  • Silicone Free
Markets:
  • Petrochemical
  • Life Science
  • Pulp and Paper
  • Food Processing
  • Wash Down
Compatible Media:
  • Food Fluids
  • Chemicals
  • Cleaning Agents
  • Compressed Air
  • Inert Gases
Pressure Range: Up to 435 psi (30 bar)
290 psi (19.9 bar) for 169PLS
Vacuum Rating: 28" Hg
Temperature Range: -13° to +302° F (-25° to +150° C)
Compatible Tubing:
  • Semi-rigid nylon
  • Polyethylene
  • Polyurethane 95 Durometer Shore A
  • Stainless Steel (grooved)
  • Copper (grooved)
  • FEP
Part Number Tube Size G H
62PLS-4M 4 mm 10.00 mm 30.00 mm
62PLS-6M 6 mm 12.00 mm 37.00 mm
62PLS-8M 8 mm 15.00 mm 38.00 mm
62PLS-10M 10 mm 17.00 mm 49.00 mm
62PLS-12M 12 mm 19.50 mm 49.50 mm
