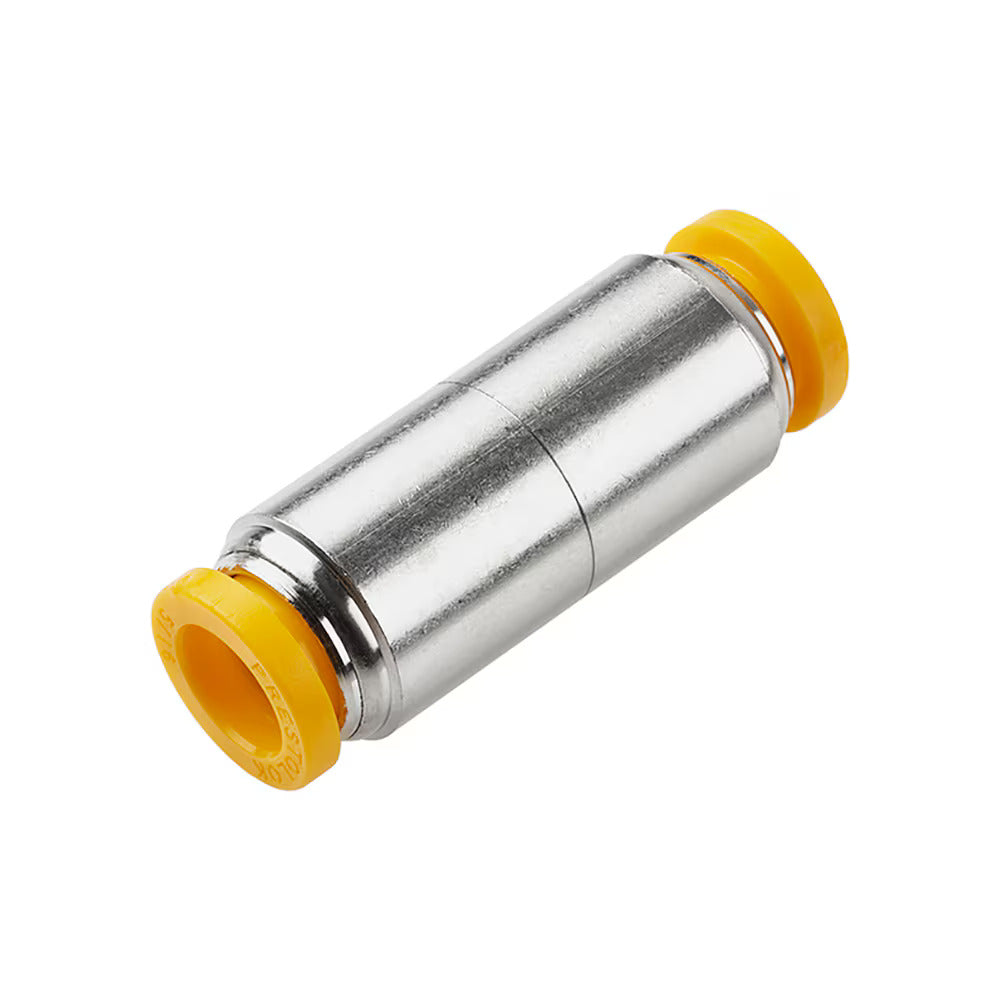

62PLP-8M by Parker | Prestolok PLP Push-to-Connect Fittings | Tube to Tube | 8mm Union Tube Size | 14.27mm O.D | 41.8mm Length | 6.350mm Flow Dia. | Straight | Nickel-Plated Brass | Pack of 10

62PLP-8M by Parker | Prestolok PLP Push-to-Connect Fittings | Tube to Tube | 8mm Union Tube Size | 14.27mm O.D | 41.8mm Length | 6.350mm Flow Dia. | Straight | Nickel-Plated Brass | Pack of 10

Sale price$84.12

by Parker Hannifin
Push-to-Connect Fittings:62PLP Union – Metric

Package Quantity: 10 Units

Buy More, Save More!
Quantity Price Each
5–19 $79.07
20–59 $71.50
60+ $63.09
Discounts applied in cart/checkout.

Product Data:

Series:
  • 62PLP Series
Shape:

Straight

Ends Configuration:
  • 8mm Push-to-Connect
  • 8mm Push-to-Connect
  • Some Ends Match
Product Features:
  • Stainless steel grab ring
  • Nickel-plated brass body
  • Nitrile seal
  • Flame resistant release button
  • Corrosion resistance
  • Inch and metric tube connections
  • NPT, BSPP, BSPT, and metric threads
  • Meets UL94 V-0 Flame Resistance Standard
Markets:
  • Industrial
  • Automotive
  • Climate Control
  • Welding
  • Robotic Welding
Compatible Media:
  • Compressed Air
  • Inert Gases
  • Vacuum
Pressure Range: Up to 300 PSI (20.6 bar) depending on tubing
Temperature Range: 0° to +200° F (-17.7° to 93.3° C)
Vacuum Rating: 28" Hg
Compatible Tubing:
  • 95FR Microweld
  • Polyethylene
  • Polypropylene
  • Semi Rigid Nylon
  • Rigid Nylon
  • Polyurethane 95 Durometer Shore A
Part Number Tube Size O.D. Length (L) Flow Diameter (D)
62PLP-4M 4 mm 9.53 mm 35.5 mm 3.175 mm
62PLP-6M 6 mm 12.70 mm 34.4 mm 4.775 mm
62PLP-8M 8 mm 14.27 mm 41.8 mm 6.350 mm
62PLP-10M 10 mm 17.46 mm 40.9 mm 7.925 mm
62PLP-12M 12 mm 17.05 mm 40.9 mm 9.525 mm

Parker Fluid System Connectors Division

Parker Fluid System Connectors Division delivers quality and service from design to delivery. Their engineers leverage advanced technology to create prototypes, refine designs, and improve manufacturing efficiencies, offering tailored solutions. ISO 9001 certified and focused on sustainability, they utilize recyclable materials and a brass chip recycling program to protect the environment and control costs. Flexible assembly, packaging, and shipping systems support diverse needs, including kitting and custom labeling, ensuring high-quality products and outstanding customer support.
