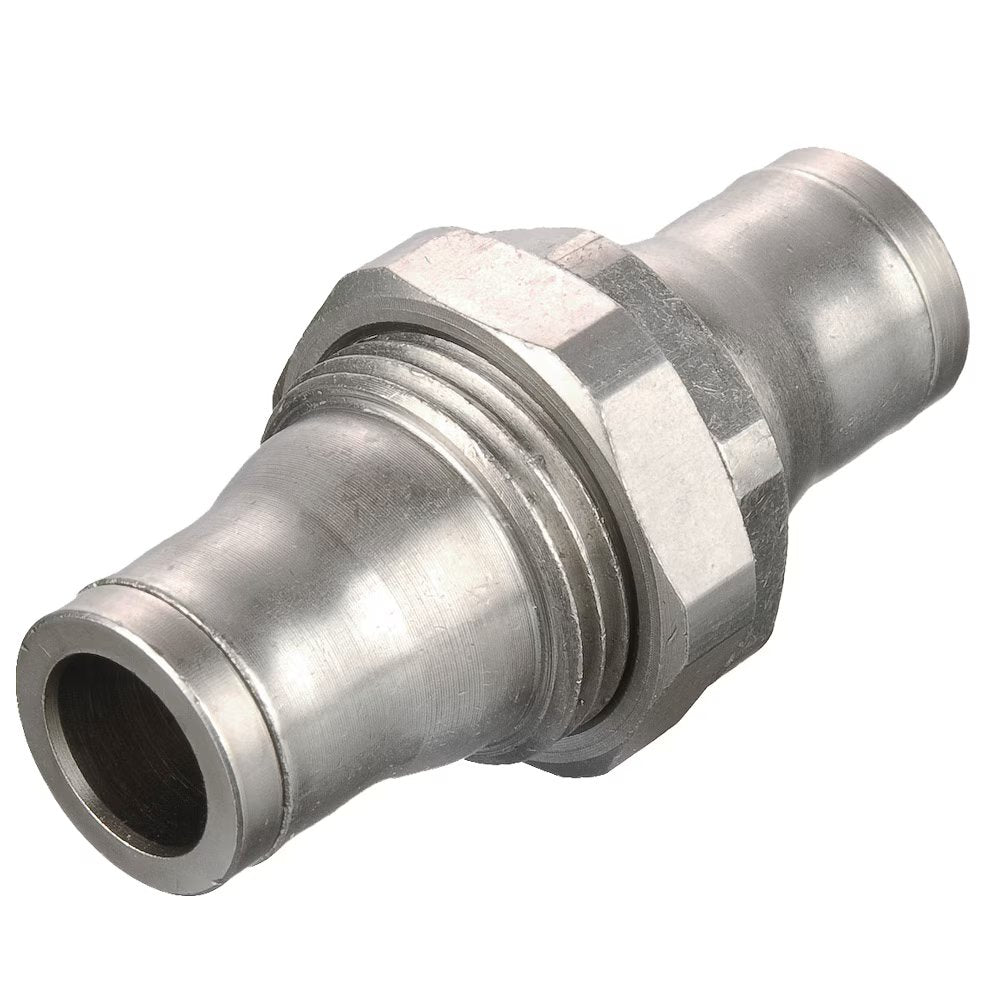

62PLMBH-4M by Parker | Prestolok PLM Metal Push-to-Connect Fittings | Bulkhead | 4 mm Tube Size | 14.00 mm Height | 14.00 mm Width | 34.00 Length | Straight | Electroless Nickel-Plated Brass | Pack of 10

62PLMBH-4M by Parker | Prestolok PLM Metal Push-to-Connect Fittings | Bulkhead | 4 mm Tube Size | 14.00 mm Height | 14.00 mm Width | 34.00 Length | Straight | Electroless Nickel-Plated Brass | Pack of 10

Sale price$134.46

by Parker Hannifin
Prestolok PLM Metal Push-to-Connect Fittings:62PLMBH Bulkhead Connector Metric Tube to Tube

Package Quantity: 10 Units

Buy More, Save More!
Quantity Price Each
5–19 $126.39
20–59 $114.29
60+ $100.85
Discounts applied in cart/checkout.

Product Data:

Series:
  • 62PLMBH Series
Shape:

Straight

Ends Configuration:
  • 4mm Push-to-Connect
  • 4mm Push-to-Connect
  • Some Ends Match
Product Features:
  • High phosphorous, FDA-compliant, chemical resistant, nickel-plated collet and body
  • FKM seal
  • Chemical, corrosion, and abrasion resistance
  • NPT, BSPT, BSPP, and metric threads
  • Silicone Free
Markets:
  • Industrial
  • Chemical
  • Life Science
  • Semi-conductors
  • Automation
  • Food Processing
Compatible Media:
  • Food Fluids
  • Harsh Detergents
  • Cleaning In Cold/Hot Water
  • Steam
  • Oils
  • Compressed Air
  • Inert Gases
Pressure Range: Up to 435 psi (30 bar)
290 psi (19.9 bar) for 169PLM
Vacuum Rating: 28" Hg
Temperature Range: -13° to +302° F (-25° to +150° C)
Compatible Tubing:
  • Polyethylene
  • Polyurethane 95 Durometer Shore A*
  • Nylon
  • FEP
Part Number Tube Size F1 F2 K L1 L2 T
62PLMBH-4M 4 mm 13 mm 14 mm 14.00 mm 14.00 mm 20.00 mm 12.50 mm
62PLMBH-6M 6 mm 16 mm 17 mm 17.50 mm 17.00 mm 22.00 mm 15.00 mm
62PLMBH-8M 8 mm 18 mm 19 mm 19.50 mm 18.50 mm 23.50 mm 17.00 mm
62PLMBH-10M 10 mm 22 mm 27 mm 24.00 mm 21.50 mm 26.50 mm 21.00 mm
62PLMBH-12M 12 mm 24 mm 24 mm 26.00 mm 23.00 mm 27.00 mm 23.50 mm
62PLMBH-14M 14 mm 27 mm 27 mm 29.50 mm 25.50 mm 29.50 mm 25.00 mm
