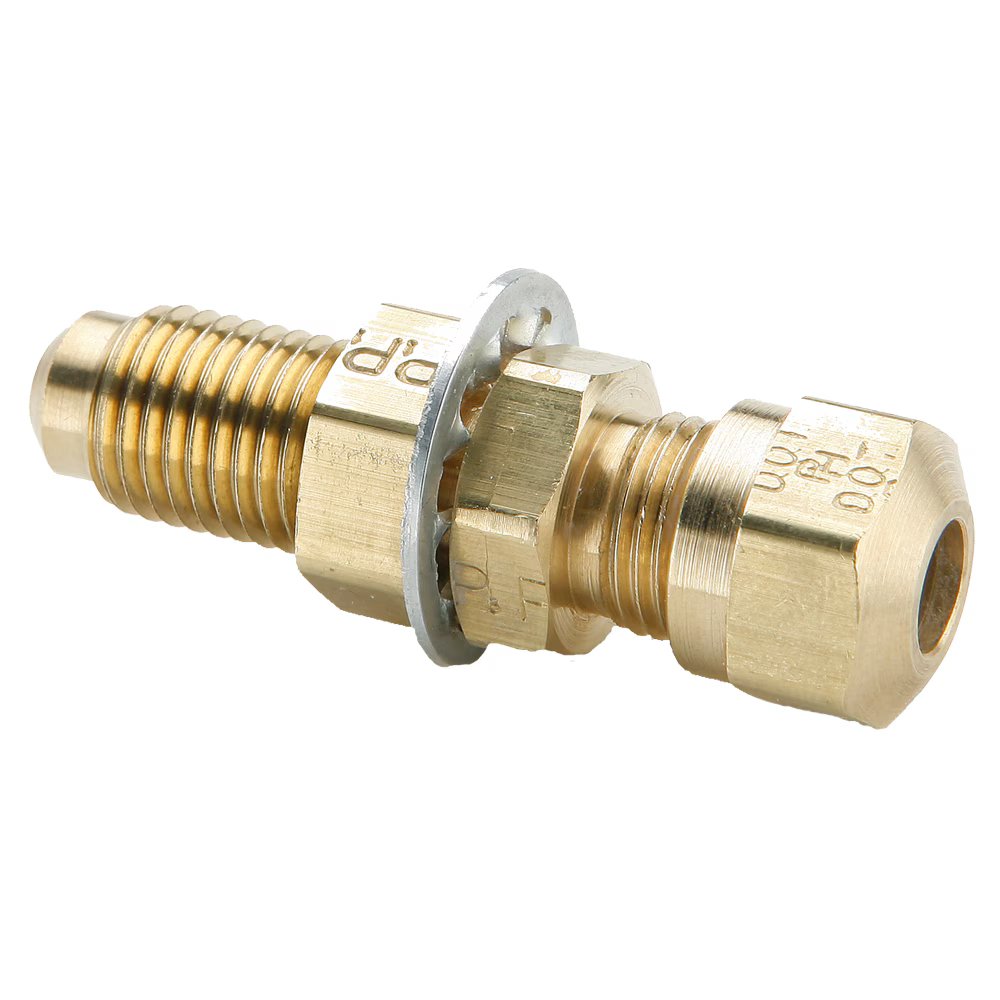

62NFBH-8 by Parker | Air Brake–NTA® Fittings | Bulkhead Union | 1/2" Tube Size x 1/2" Flare Size x 11/16" Thread | 7/8" Hex B | 7/8" Hex C | 2.73" Length | Straight | Brass | Pack of 10
by Parker Hannifin
Air Brake–NTA® Fittings:Bulkhead Union 62NFBH
Package Quantity: 10 Units
| Buy More, Save More! | |
| Quantity | Price Each |
| 5–14 | $265.19 |
| 15–29 | $239.80 |
| 30+ | $211.59 |
Discounts applied in cart/checkout.
Product Data:
Brand:
Series:
Shape:
Straight
Ends Configuration:
Material(s):
| Product Features: |
|
|---|---|
| Markets: |
|
| Applications: |
|
| Specification: | |
| Pressure Range: | Up to 150 PSI (10.3 bar) |
| Temperature Range: | -40° to +200° F (-40° to +93.3° C) |
| Compatible Tubing: |
|
 |
|||||||||
|---|---|---|---|---|---|---|---|---|---|
| Part Number | Tube Size | A | D | L | L | L | L | L | L |
| 62NFBH-4 | 1/4" | 1/4" | 7/16"-24 | 9/16" | 9/16" | 1.86" | 1.53" | .137" | 7/16" |
| 62NFBH-6 | 3/8" | 3/8" | 17/32"-24 | 3/4" | 3/4" | 2.24" | 1.78" | .217" | 5/8" |
| 62NFBH-8 | 1/2" | 1/2" | 11/16"-20 | 7/8" | 7/8" | 2.73" | 2.22" | .338" | 3/4" |
| 62NFBH-10 | 5/8" | 5/8" | 13/16"-18 | 1" | 1" | 2.68" | 2.21" | .398" | 7/8" |
| 62NFBH-10-8 | 5/8" | 1/2" | 13/16"-18 | 7/8" | 7/8" | 2.90" | 2.40" | .398" | 3/4" |
