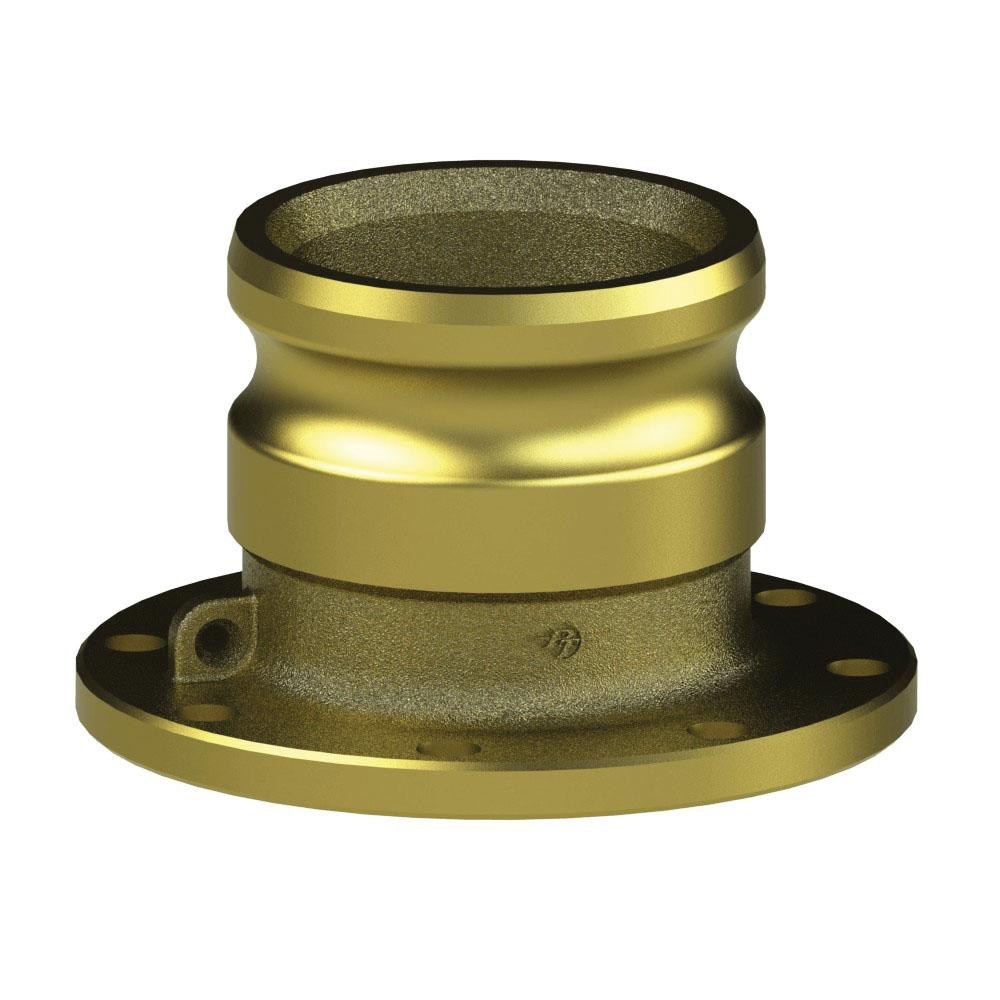

62564000 (TTF40A) by PT-Coupling | Petroleum Handling Cam & Groove Adapter | Type TTFA | 4" Adapter x 4" TTMA Flange | Brass

62564000 (TTF40A) by PT-Coupling | Petroleum Handling Cam & Groove Adapter | Type TTFA | 4" Adapter x 4" TTMA Flange | Brass

Sale price$461.40

PT Coupling
Petroleum Handling Cam & Groove (Camlock) Adapter | Type TTFA | Adapter x TTMA Flange | Brass

PT Coupling’s petroleum handling fittings support all stages of fuel production and transport, from refining to tank trucks. Also compatible with bio-fuel applications.

Made in the USA.
Buy More, Save More!
Quantity Price Each
5–14 $433.72
15–29 $392.19
30+ $346.05
Discounts applied in cart/checkout.

Product Data:

Series:
  • Petroleum Handling
Shape:

Straight

Cam & Groove Type:

Other
Overview:
  • PT Coupling's petroleum handling fittings are used in all phases of petroleum manufacturing, transportation and logistics. They serve important roles in fuel transportation, from refining applications to tank trucks, and much more. They are also suited to work with the emerging bio-fuel industry.
Features & Applications:
  • Tank Truck Flanges conform to (TTMA) Truck Trailer Manufacturers Assoc. standards.
  • Good corrosion resistance, less expensive than stainless steel. Softer and easier to thread than stainless steel and forms tight seals.
  • Ideal for use with water. Can also be used with hydraulic oil, coolants, gasoline, and petroleum products.
  • Made in the USA
Part
Name		 Item # Adapter
Size		 Flange
Size
(TTMA)		 Overall
Length
(C)		 Inside
Diameter
(E)		 Outside
Diameter
(F)		 Bolt Hole
Diameter
(J)		 Number
of Holes
(K)		 Bolt Circle
Diameter
(L)		 Max. Allowable
Working Press.
(PSI)*
TTF25A 62562500 2-1/2" 2-1/2" - - - - - - 200 PSI
TTF30A 62563000 3" 3" 3.38" 2.80" 5.63" 0.44" 8 4.88" 200 PSI
TTF40A 62564000 4" 4" 3.35" 3.78" 6.63" 0.44" 8 5.88" 150 PSI

* Above maximum allowable working pressures are based on operating temperatures less than 100°F.
