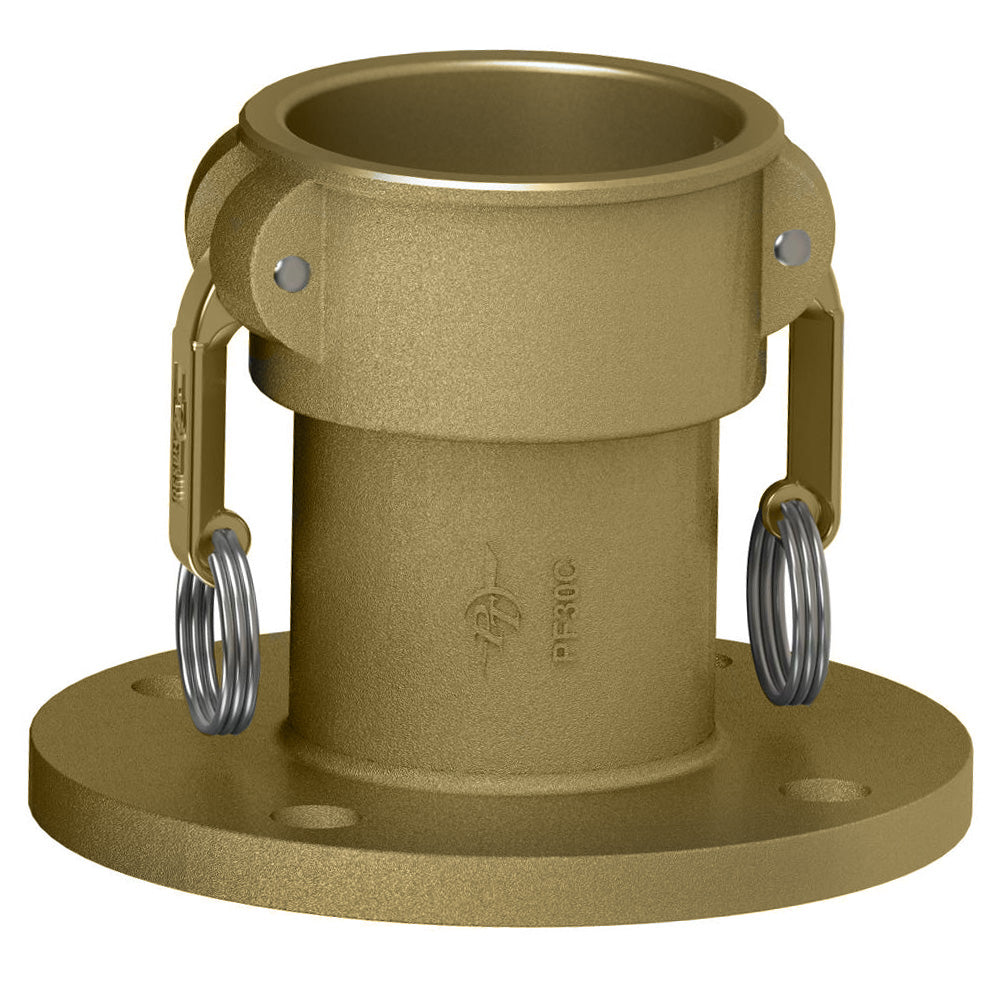

62544000 (PF40C) by PT-Coupling | Cam & Groove Adapter | Type PFC | 4" Coupler x 4" 150# Pipe Flange | Brass

62544000 (PF40C) by PT-Coupling | Cam & Groove Adapter | Type PFC | 4" Coupler x 4" 150# Pipe Flange | Brass

Sale price$786.87

PT Coupling
Cam & Groove (Camlock) Adapter | Type PFC | Coupler x 150# Pipe Flange | Brass

Use with water, hydraulic oil, coolants, gasoline, and petroleum products.

Made in the USA
Buy More, Save More!
Quantity Price Each
5–14 $739.66
15–29 $668.84
30+ $590.15
Discounts applied in cart/checkout.

Product Data:

Shape:

Straight

Cam & Groove Type:

Other

Ends Configuration:
  • 4in Female Cam & Groove
  • 4in 150# Flange
Features & Applications:
  • Good corrosion resistance, less expensive than stainless steel. Softer and easier to thread than stainless steel and forms tight seals.
  • Ideal for use with water. Can also be used with hydraulic oil, coolants, gasoline, and petroleum products.
  • Pipe Flange bolt pattern conforms to ANSI B16.5 Class 150.
  • Stainless Steel and Carbon Steel Flanges are raised face. Other materials are supplied with flat face flanges.
  • Made in the USA
Part
Name		 Item # Coupler
Size		 Flange
Size		 O. D. with
Cam Arms
Extended
(A)		 Overall
Length
(C)		 Inside
Diameter
(E)		 Outside
Diameter
(F)		 Bolt Hole
Diameter
(J)		 Number
of Holes
(K)		 Bolt Circle
Diameter
(L)		 Max. Allowable
Working Press.
(PSI)*
PF30C 62543000 3" 3" 9.56" 5.82" 2.90" 7.50" 0.75" 4 6.00" 200 PSI
PF40C 62544000 4" 4" 10.66" 5.39" 3.60" 9.00" 0.75" 8 7.50" 150 PSI

*Above maximum allowable working pressures are based on operating temperatures less than 100°F.
