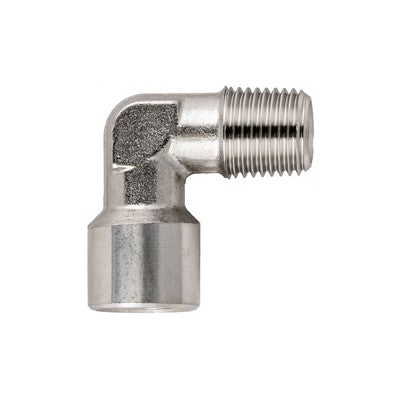

62520-1/8 by AIGNEP | 60/62 Series | 1/8" BSPP Female x 1/8" BSPT Male | 90° Elbow
62520-1/8 by AIGNEP | 60/62 Series | 1/8" BSPP Female x 1/8" BSPT Male | 90° Elbow

62520-1/8 by AIGNEP | 60/62 Series | 1/8" BSPP Female x 1/8" BSPT Male | 90° Elbow

Sale price$29.08
Buy more, save moreDiscounts applied in cart/checkout.

Male x Female Elbow - BSPP x BSPT

Pressure Rating: Vacuum-250 PSI
Temperature Range: -166 ? F - 572 ? F
Media: Compressed Air Fluid for food and Chemical Industry compatible with component specifications
Body: Stainless Steel

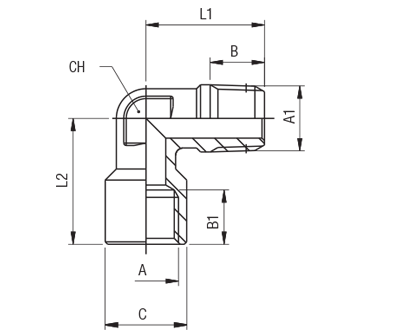

Product Number A BSPP A1 BSPT B B1 C L1 L2 CH
62520-1/8 1/8" 1/8" 7.5 mm 8.5 mm 21 mm 18 mm 21 mm 10 mm
62520-1/4 1/4" 1/4" 11 mm 11 mm 25.5 mm 24 mm 25.5 mm 12 mm
62520-3/8 3/8" 3/8" 11.5 mm 12 mm 28 mm 27 mm 28 mm 15 mm
62520-1/2 1/2" 1/2" 14 mm 15 mm 32 mm 29.5 mm 32 mm 20 mm

Additional Product Data:

Series:
  • 60/62 Series
Shape:

90 Degree

Ends Configuration:
  • 1/8in Female BSPP
  • 1/8in Male BSPT

AIGNEP

For over 40 years, AIGNEP has been a leading manufacturer of compressed air and industrial fluid fittings. Our products are widely known for their high quality and Italian design: pneumatic cylinders and solenoid valves, fluid process control valves “FLUIDITY”, compressed air pipeline “INFINITY”, fittings and quick couplings for every fluid media.
