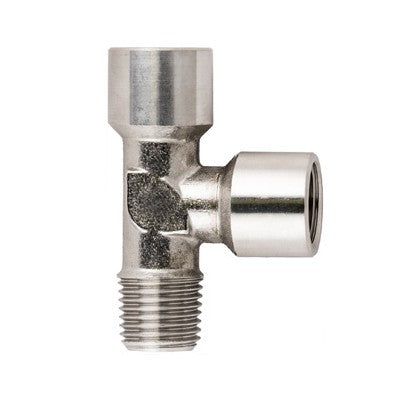

62450-1/4 by AIGNEP | 60/62 Series | Female Run | 2x Female BSPP x 1 Male BSPT 1/4" | Tee | Stainless Steel
62450-1/4 by AIGNEP | 60/62 Series | Female Run | 2x Female BSPP x 1 Male BSPT 1/4" | Tee | Stainless Steel

62450-1/4 by AIGNEP | 60/62 Series | Female Run | 2x Female BSPP x 1 Male BSPT 1/4" | Tee | Stainless Steel

Sale price$47.86
Buy More, Save More!
Quantity Price Each
10–39 $44.99
40–79 $40.68
80+ $35.90
Discounts applied in cart/checkout.

Product Data:

Series:
  • 60/62 Series
Shape:

Tee

Ends Configuration:
  • 1/4in Female BSPT
  • 1/4in Male BSPT
  • 1/4in Female BSPT
  • Some Ends Match

Female Run Tee - BSPP x BSPT

Pressure Rating: Vacuum-250 PSI
Temperature Range: -166 ° F - 572 ° F
Media: Compressed Air Fluid for food and Chemical Industry compatible with component specifications
Body: Stainless Steel

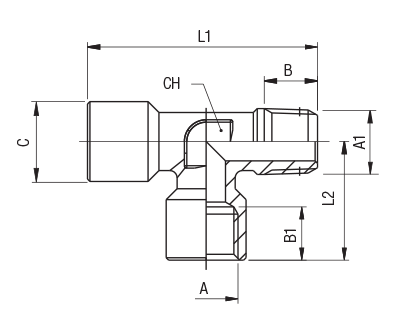

Product Number A BSPP A1 BSPT B B1 C L1 L2 CH
62450-1/8 1/8" 1/8" 7.5 mm 8.5 mm 18.5 mm 36 mm 18.5 mm 12 mm
62450-1/4 1/4" 1/4" 11 mm 11 mm 24.5 mm 47.5 mm 24.5 mm 12 mm
62450-3/8 3/8" 3/8" 11.5 mm 12 mm 27 mm 52.5 mm 27 mm 15 mm
62450-1/2 1/2" 1/2" 14 mm 15 mm 32 mm 61.5 mm 32 mm 20 mm

AIGNEP

For over 40 years, AIGNEP has been a leading manufacturer of compressed air and industrial fluid fittings. Our products are widely known for their high quality and Italian design: pneumatic cylinders and solenoid valves, fluid process control valves “FLUIDITY”, compressed air pipeline “INFINITY”, fittings and quick couplings for every fluid media.
