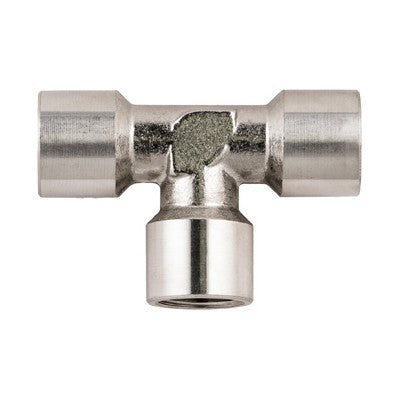

62400-1/4 by AIGNEP | 60/62 Series | Female | 1/4" BSPP Female | Tee | Stainless Steel
62400-1/4 by AIGNEP | 60/62 Series | Female | 1/4" BSPP Female | Tee | Stainless Steel

62400-1/4 by AIGNEP | 60/62 Series | Female | 1/4" BSPP Female | Tee | Stainless Steel

Sale price$40.49
Buy More, Save More!
Quantity Price Each
10–39 $38.06
40–79 $34.42
80+ $30.37
Discounts applied in cart/checkout.

Product Data:

Series:
  • 60/62 Series
Shape:

Tee

Ends Configuration:
  • 1/4in Female BSPP
  • 1/4in Female BSPP
  • 1/4in Female BSPP
  • Some Ends Match

Female Tee - BSPP

Pressure Rating: Vacuum-250 PSI
Temperature Range: -166 ° F - 572 ° F
Media: Compressed Air Fluid for food and Chemical Industry compatible with component specifications
Body: Stainless Steel

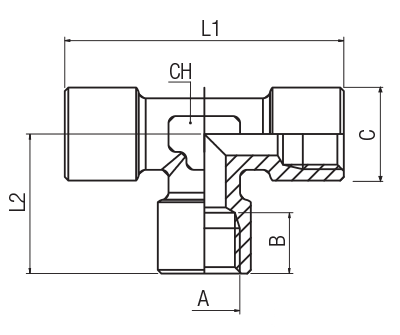

Product Number A BSPP B C L1 L2 CH
62400-1/8 1/8" 8.5 mm 13 mm 37 mm 18.5 mm 12 mm
62400-1/4 1/4" 11 mm 16.5 mm 49 mm 24.5 mm 12 mm
62400-3/8 3/8" 12 mm 20.5 mm 54 mm 27 mm 15 mm
62400-1/2 1/2" 15 mm 25.5 mm 64 mm 32 mm 20 mm

AIGNEP

For over 40 years, AIGNEP has been a leading manufacturer of compressed air and industrial fluid fittings. Our products are widely known for their high quality and Italian design: pneumatic cylinders and solenoid valves, fluid process control valves “FLUIDITY”, compressed air pipeline “INFINITY”, fittings and quick couplings for every fluid media.
