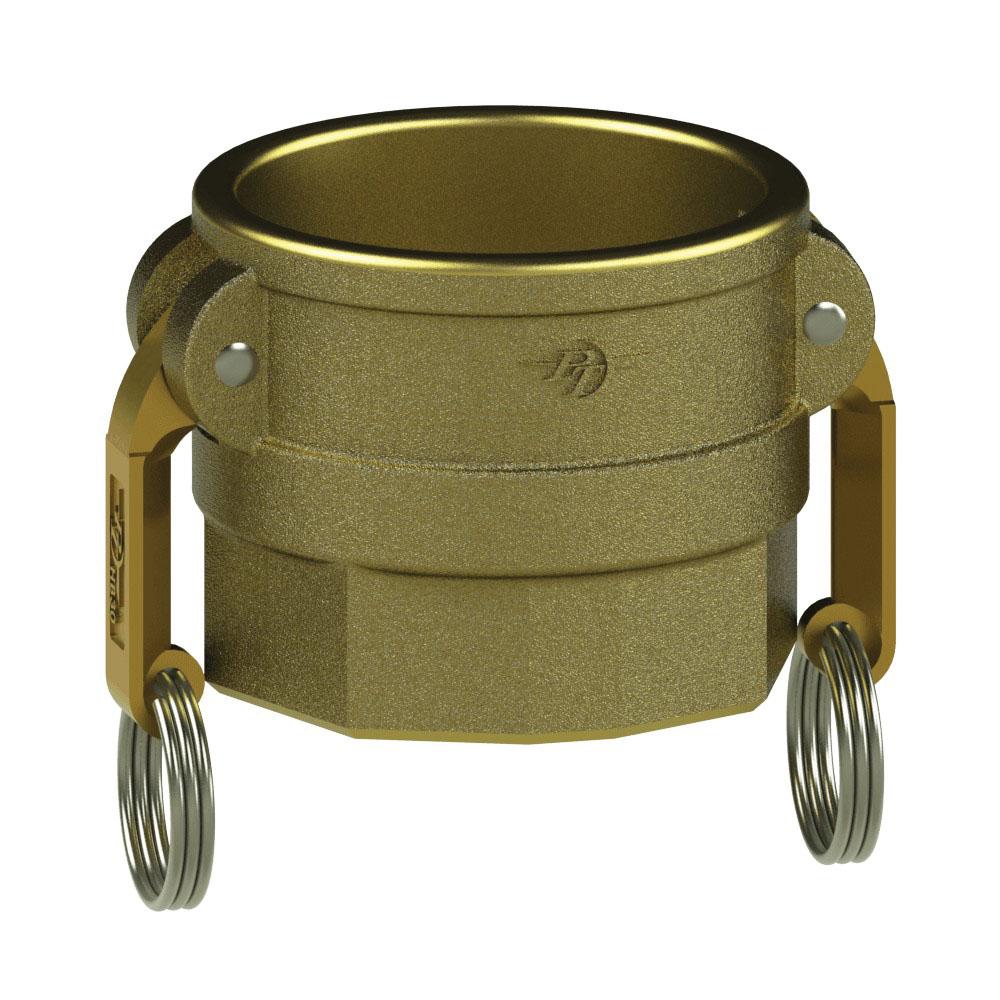

62392500 (25DFH) by PT-Coupling | Cam & Groove Adapter | Type DFH | 2-1/2" Coupler x 2-1/2" Female Fire Hose (NH) Thread | Brass | EPDM & Buna-N Seals

62392500 (25DFH) by PT-Coupling | Cam & Groove Adapter | Type DFH | 2-1/2" Coupler x 2-1/2" Female Fire Hose (NH) Thread | Brass | EPDM & Buna-N Seals

Sale price$211.21

PT Coupling
Cam & Groove (Camlock) Adapter | Type DFH | Coupler x Female Fire Hose (NH) Thread | Brass | EPDM & Buna-N Seals

Use with water, hydraulic oil, coolants, gasoline, and petroleum products.

Made in the USA
Buy More, Save More!
Quantity Price Each
5–19 $198.54
20–59 $179.53
60+ $158.41
Discounts applied in cart/checkout.

Product Data:

Shape:

Straight

Cam & Groove Type:

Type B

Ends Configuration:
  • 2-1/2in Female Cam & Groove
  • 2-1/2in Female NST
Features & Applications:
  • Good corrosion resistance, less expensive than stainless steel. Softer and easier to thread than stainless steel and forms tight seals.
  • Ideal for use with water. Can also be used with hydraulic oil, coolants, gasoline, and petroleum products.
  • Comes standard with EPDM NH Thread Gasket and Buna-N cam gasket.
  • Made in the USA
Part
Name		 Item # Coupler
Size		 Female Fire Hose
Thread (NH)
Size		 O. D. with
Cam Arms
Extended
(A)		 Outside
Diameter
(B)		 Overall
Length
(C)		 Inside
Diameter
(E)		 Max. Allowable
Working Press.
(PSI)*
25DFH 62392500 2-1/2" 2-1/2" 8.03" 4.43" 3.40" 2.38" 200 PSI

*Above maximum allowable working pressures are based on operating temperatures less than 100°F.

PT-Coupling

PT Coupling is a renowned manufacturer of Cam & Groove fittings, Punch-Lok banding, and clamps for industrial hoses. Established in 1951, the company offers a range of products made from different materials and is known for their innovative proprietary Punch-Lok design. PT Coupling's products are trusted by customers worldwide in various industries, such as agriculture, construction, and mining. With a commitment to quality and customer service, PT Coupling continues to be a leading producer of industrial hose fittings.
