62360-3/8 by AIGNEP | 60/62 Series | Bulkhead Connector | 3/8" Female BSPP x 1.043" Male BSPP
| Buy More, Save More! | |
| Quantity | Price Each |
| 10–39 | $40.81 |
| 40–79 | $36.91 |
| 80+ | $32.57 |
Discounts applied in cart/checkout.
Product Data:
Series:
Shape:
Straight
Ends Configuration:
Material(s):
Bulkhead Connector - BSPP
Pressure Rating: Vacuum-250 PSI
Temperature Range: -166 ? F - 572 ? F
Media: Compressed Air Fluid for food and Chemical Industry compatible with component specifications
Body: Stainless Steel
Temperature Range: -166 ? F - 572 ? F
Media: Compressed Air Fluid for food and Chemical Industry compatible with component specifications
Body: Stainless Steel

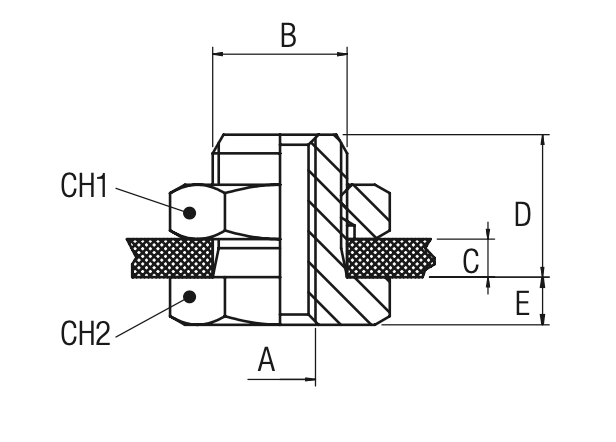

| Product Number | A | B | C | CH1 | CH2 | D | E |
|---|---|---|---|---|---|---|---|
| 62360-1/8 | 1/8" | 16.5 mm | 9 mm | 19 mm | 22 mm | 14 mm | 4 mm |
| 62360-1/4 | 1/4" | 20.5 mm | 15 mm | 24 mm | 27 mm | 21 mm | 4 mm |
| 62360-3/8 | 3/8" | 26.5 mm | 14 mm | 30 mm | 32 mm | 21 mm | 5 mm |
| 62360-1/2 | 1/2" | 28.5 mm | 20 mm | 32 mm | 36 mm | 27 mm | 6 mm |
| 62360-3/4 | 3/4" | 34 mm | 22.5 mm | 41 mm | 41 mm | 30 mm | 6 mm |
| 62360-1 | 1" | 42.5 mm | 24.5 mm | 46 mm | 50 mm | 34 mm | 8 mm |
