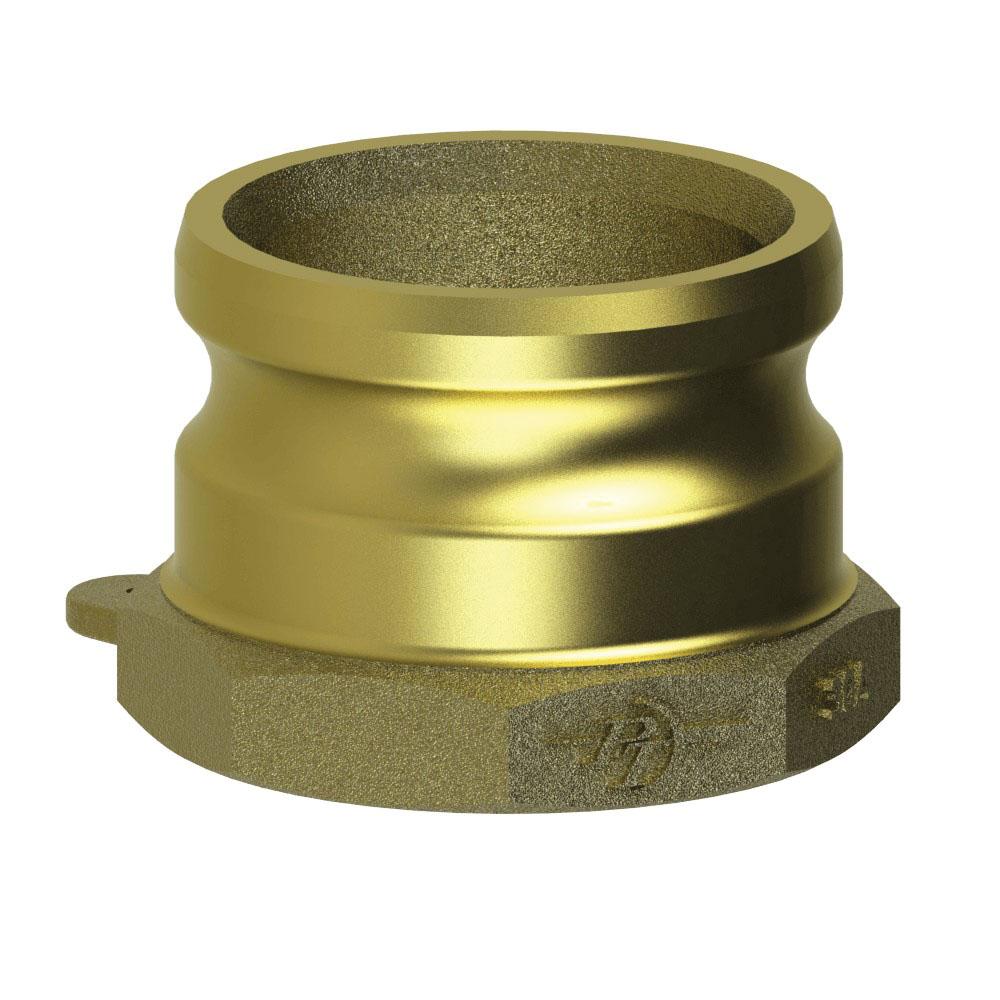

62341500 (15AS) by PT-Coupling | Cam & Groove Adapter | Type AS | 1-1/2" Adapter x 1-1/2" Female NPSH | Brass | Buna Fuel Resistant Seal

62341500 (15AS) by PT-Coupling | Cam & Groove Adapter | Type AS | 1-1/2" Adapter x 1-1/2" Female NPSH | Brass | Buna Fuel Resistant Seal

Sale price$74.51

PT Coupling
Cam & Groove (Camlock) Adapter | Type AS | Adapter x Female NPSH | Brass | Buna Fuel Resistant Seal

Use with water, hydraulic oil, coolants, gasoline, and petroleum products.

Made in the USA
Buy More, Save More!
Quantity Price Each
10–39 $70.04
40–79 $63.33
80+ $55.88
Discounts applied in cart/checkout.

Product Data:

Shape:

Straight

Cam & Groove Type:

Type A

Ends Configuration:
  • 1-1/2in Male Cam & Groove
  • 1-1/2in Female NPSH
Features & Applications:
  • Female straight pipe threads are compatible with male NPSH, NPSM and NPT threads.
  • Comes standard with a Buna Fuel Resistant straight thread gasket.
  • Good corrosion resistance, less expensive than stainless steel. Softer and easier to thread than stainless steel and forms tight seals.
  • Ideal for use with water. Can also be used with hydraulic oil, coolants, gasoline, and petroleum products.
  • Made in the USA
Part
Name		 Item # Adapter
Size		 Female NPSH
Thread		 Overall
Length
(C)		 Inside
Diameter
(E)		 Across
Corners
(F)		 Chain Lug
Extension
(G)		 Max. Allowable
Working Press.
(PSI)*
15AS 62341500 1-1/2" 1-1/2" 2.29" 1.35" 2.44" 0.33" 250 PSI
30AS 62343000 3" 3" 2.84" 2.80" 4.22" 0.44" 200 PSI

*Above maximum allowable working pressures are based on operating temperatures less than 100°F.

PT-Coupling

PT Coupling is a renowned manufacturer of Cam & Groove fittings, Punch-Lok banding, and clamps for industrial hoses. Established in 1951, the company offers a range of products made from different materials and is known for their innovative proprietary Punch-Lok design. PT Coupling's products are trusted by customers worldwide in various industries, such as agriculture, construction, and mining. With a commitment to quality and customer service, PT Coupling continues to be a leading producer of industrial hose fittings.
