62340-14-1/2 by AIGNEP | 60/62 Series | Male Hose Barb Adapter | 14mm x 1/2" BSPT Male
| Buy More, Save More! | |
| Quantity | Price Each |
| 10–39 | $18.56 |
| 40–79 | $16.78 |
| 80+ | $14.81 |
Discounts applied in cart/checkout.
Product Data:
Series:
Shape:
Straight
Ends Configuration:
Material(s):
Male Hose Adapter - BSPT
Pressure Rating: Vacuum-250 PSI
Temperature Range: -166 ° F - 572 ° F
Media: Compressed Air Fluid for food and Chemical Industry compatible with component specifications
Body: Stainless Steel
Temperature Range: -166 ° F - 572 ° F
Media: Compressed Air Fluid for food and Chemical Industry compatible with component specifications
Body: Stainless Steel

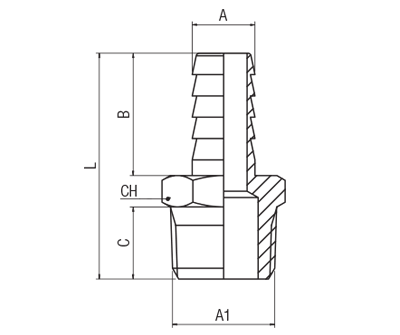

| Product Number | A1 BSPT | A | B | C | L | CH |
|---|---|---|---|---|---|---|
| 62340-6-1/8 | 1/8" | 6 mm | 19.5 mm | 7.5 mm | 32 mm | 11 mm |
| 62340-7-1/8 | 1/8" | 7 mm | 19.5 mm | 7.5 mm | 32 mm | 11 mm |
| 62340-7-1/4 | 1/4" | 7 mm | 19.5 mm | 11 mm | 35.5 mm | 14 mm |
| 62340-8-1/4 | 1/4" | 8 mm | 19.5 mm | 11 mm | 35.5 mm | 14 mm |
| 62340-9-1/4 | 1/4" | 9 mm | 19.5 mm | 11 mm | 35.5 mm | 14 mm |
| 62340-9-3/8 | 3/8" | 9 mm | 19.5 mm | 11.5 mm | 36 mm | 17 mm |
| 62340-10-1/4 | 1/4" | 10 mm | 19.5 mm | 11 mm | 35.5 mm | 14 mm |
| 62340-10-3/8 | 3/8" | 10 mm | 19.5 mm | 11.5 mm | 36 mm | 17 mm |
| 62340-10-1/2 | 1/2" | 10 mm | 19.5 mm | 14 mm | 39 mm | 22 mm |
| 62340-12-1/4 | 1/4" | 12 mm | 19.5 mm | 11 mm | 35.5 mm | 14 mm |
| 62340-12-3/8 | 3/8" | 12 mm | 19.5 mm | 11.5 mm | 36 mm | 17 mm |
| 62340-12-1/2 | 1/2" | 12 mm | 19.5 mm | 14 mm | 39 mm | 22 mm |
| 62340-14-3/8 | 3/8" | 14 mm | 19.5 mm | 11.5 mm | 36 mm | 17 mm |
| 62340-14-1/2 | 1/2" | 14 mm | 19.5 mm | 14 mm | 39 mm | 22 mm |
| 62340-16-1/2 | 1/2" | 16 mm | 19.5 mm | 14 mm | 39 mm | 22 mm |
| 62340-18-1/2 | 1/2" | 18 mm | 19.5 mm | 14 mm | 39 mm | 22 mm |
| 62340-18-3/4 | 3/4" | 18 mm | 19.5 mm | 16.5 mm | 43.5 mm | 27 mm |
| 62340-20-1/2 | 1/2" | 20 mm | 19.5 mm | 14 mm | 39 mm | 22 mm |
| 62340-20-3/4 | 3/4" | 20 mm | 19.5 mm | 13.5 mm | 40 mm | 27 mm |
