62325-1/2 by AIGNEP | 60/62 Series | Male Plug | Internal Hex | DIN 906 | 1/2" BSPT | Stainless Steel
62325-1/2 by AIGNEP | 60/62 Series | Male Plug | Internal Hex | DIN 906 | 1/2" BSPT | Stainless Steel

62325-1/2 by AIGNEP | 60/62 Series | Male Plug | Internal Hex | DIN 906 | 1/2" BSPT | Stainless Steel

Sale price$17.32
Buy More, Save More!
Quantity Price Each
10–39 $16.28
40–79 $14.72
80+ $12.99
Discounts applied in cart/checkout.

Product Data:

Series:
  • 60/62 Series
Ends Configuration:
  • 1/2in Male BSPT
Material(s):
  • Stainless Steel

Male Plug - DIN 906

Pressure Rating: Vacuum-250 PSI
Temperature Range: -166 ° F - 572 ° F
Media: Compressed Air Fluid for food and Chemical Industry compatible with component specifications
Body: Stainless Steel

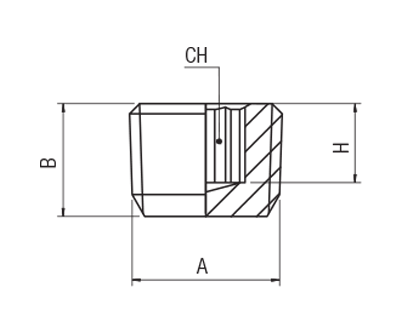

Product Number A BSPT B H CH
62325-1/8 1/8" 7.5 mm 5 mm 5 mm
62325-1/4 1/4" 10 mm 7 mm 6 mm
62325-3/8 3/8" 11 mm 7 mm 8 mm
62325-1/2 1/2" 13 mm 8 mm 10 mm

AIGNEP

For over 40 years, AIGNEP has been a leading manufacturer of compressed air and industrial fluid fittings. Our products are widely known for their high quality and Italian design: pneumatic cylinders and solenoid valves, fluid process control valves “FLUIDITY”, compressed air pipeline “INFINITY”, fittings and quick couplings for every fluid media.
