62315-3/8 by AIGNEP | 60/62 Series | Male Plug (Internal Hex) | 3/8" Male BSPP with FKM O-Ring
62315-3/8 by AIGNEP | 60/62 Series | Male Plug (Internal Hex) | 3/8" Male BSPP with FKM O-Ring

62315-3/8 by AIGNEP | 60/62 Series | Male Plug (Internal Hex) | 3/8" Male BSPP with FKM O-Ring

Sale price$23.98
Buy more, save moreDiscounts applied in cart/checkout.

Male Plug with Internal Hex - BSPP

Pressure Rating: Vacuum-250 PSI
Temperature Range: -166 ? F - 572 ? F
Media: Compressed Air Fluid for food and Chemical Industry compatible with component specifications
Body: Stainless Steel
Thread Seal: FKM

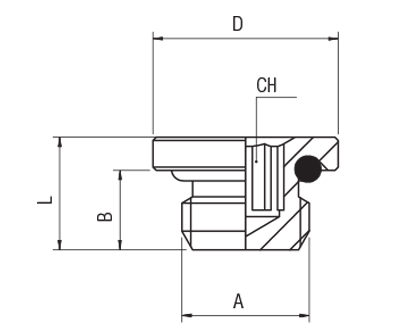

Product Number D A BSPP B L CH
62315-M5 8 mm M5 4 mm 6 mm 2 mm
62315-1/8 14 mm 1/8" 6 mm 8.5 mm 5 mm
62315-1/4 18 mm 1/4" 8 mm 11 mm 6 mm
62315-3/8 20 mm 3/8" 9 mm 12.5 mm 8 mm
62315-1/2 25 mm 1/2" 10 mm 13.5 mm 10 mm

Additional Product Data:

Series:
  • 60/62 Series
Shape:

Straight

Ends Configuration:
  • 3/8in Male BSPP

AIGNEP

For over 40 years, AIGNEP has been a leading manufacturer of compressed air and industrial fluid fittings. Our products are widely known for their high quality and Italian design: pneumatic cylinders and solenoid valves, fluid process control valves “FLUIDITY”, compressed air pipeline “INFINITY”, fittings and quick couplings for every fluid media.
