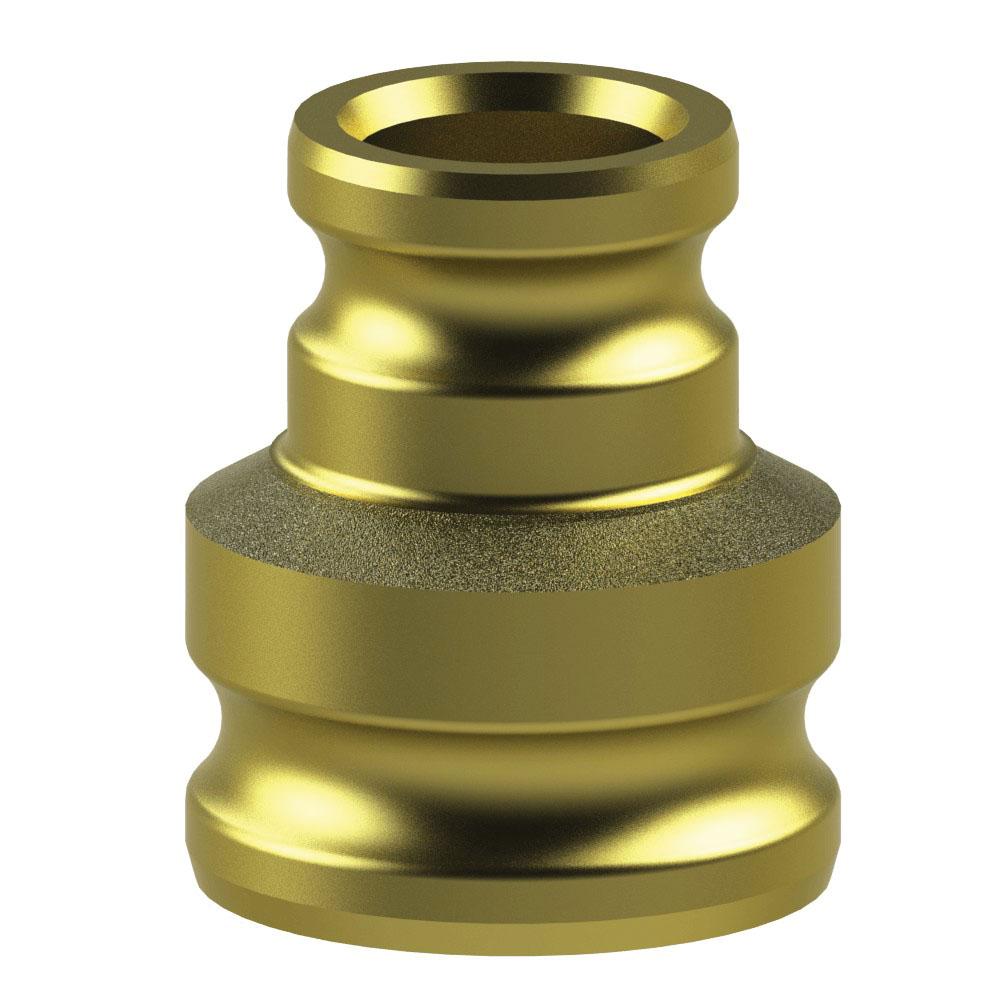

62283040 (SA30X40) by PT-Coupling | Reducing Cam & Groove Adapter | Spool Adapter | Type SA | 3" Adapter x 4" Adapter | Brass
PT Coupling
Cam & Groove (Camlock) Adapter | Spool Adapter | Type SA | Adapter x Adapter | Brass
Use with water, hydraulic oil, coolants, gasoline, and petroleum products.
Made in the USA
| Buy More, Save More! | |
| Quantity | Price Each |
| 5–14 | $288.93 |
| 15–29 | $261.26 |
| 30+ | $230.53 |
Discounts applied in cart/checkout.
Product Data:
Shape:
Straight
Cam & Groove Type:
Other
Ends Configuration:
Material(s):
| Features & Applications: | |||
|---|---|---|---|
|
| Part Name |
Item # | Adapter Size |
Adapter Size |
Max. Allowable Working Press. (PSI)* |
|---|---|---|---|---|
| SA10X10 | 62281010 | 1" | 1" | 250 PSI |
| SA15X15 | 62281515 | 1-1/2" | 1-1/2" | 250 PSI |
| SA20X20 | 62282020 | 2" | 2" | 250 PSI |
| SA20X30 | 62282030 | 2" | 3" | 200 PSI |
| SA25X25 | 62282525 | 2-1/2" | 2-1/2" | 200 PSI |
| SA30X30 | 62283030 | 3" | 3" | 200 PSI |
| SA30X40 | 62283040 | 3" | 4" | 150 PSI |
| SA40X40 | 62284040 | 4" | 4" | 150 PSI |
*Above maximum allowable working pressures are based on operating temperatures less than 100°F.
