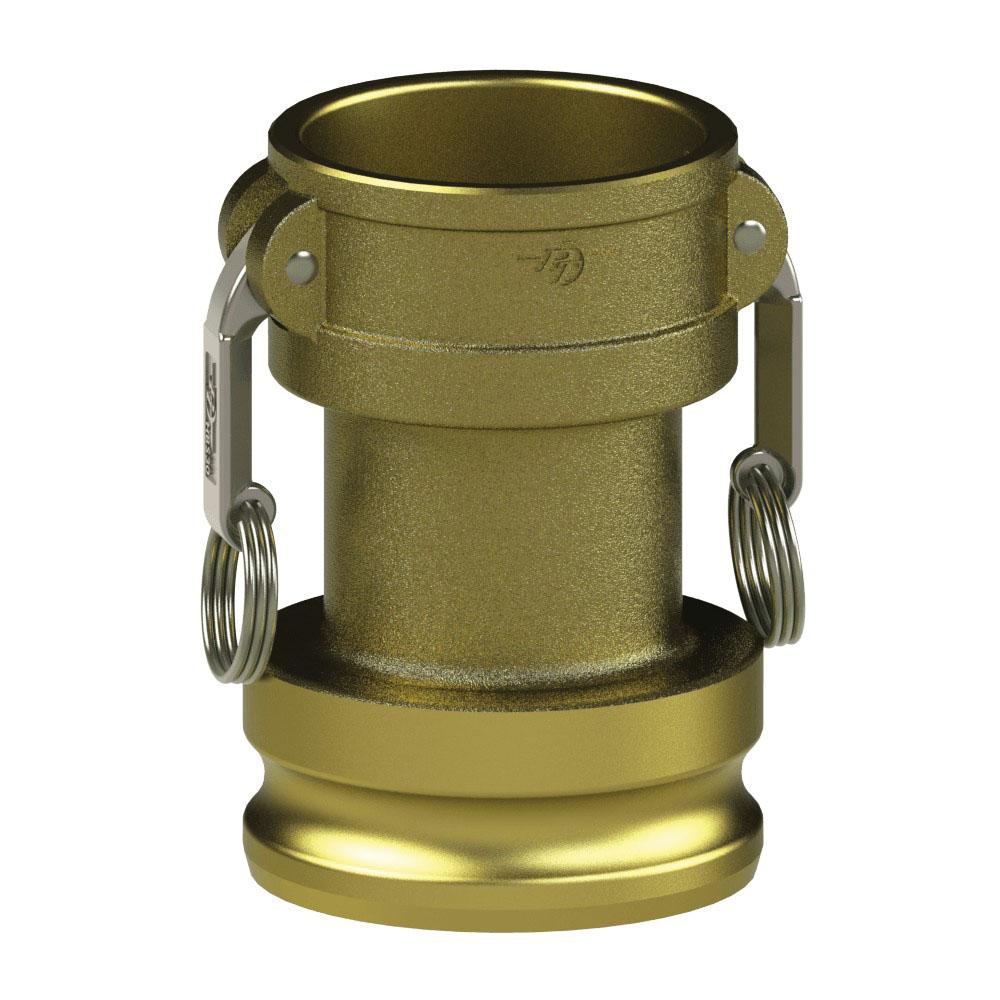

62263040L2 (30CX40A SLII) by PT-Coupling | STA-LOK® II Reducing Cam & Groove Adapter | Type CXA | Long | 3" Coupler x 4" Adapter | Brass/SLB | Buna-N Seal

62263040L2 (30CX40A SLII) by PT-Coupling | STA-LOK® II Reducing Cam & Groove Adapter | Type CXA | Long | 3" Coupler x 4" Adapter | Brass/SLB | Buna-N Seal

Sale price$324.93

PT Coupling
STA-LOK® II Reducing Cam & Groove (Camlock) Adapter | Type CXA | Long | Coupler x Adapter | Brass/SLB | Buna-N Seal

Use with water, hydraulic oil, coolants, gasoline, and petroleum products.

Made in the USA
Buy More, Save More!
Quantity Price Each
5–14 $305.43
15–29 $276.19
30+ $243.70
Discounts applied in cart/checkout.

Product Data:

Series:
  • STA-LOK II
Shape:

Straight

Cam & Groove Type:

Other
Overview:
  • STA-LOK® II is a passive locking feature that automatically locks the handle into place, if it is fully closed. To open the handles there are manual quick release levers. Proper use of this mechanism can help prevent spills by keeping the cam arms from opening under adverse conditions, such as high vibrations, pulsing, wear, and hazardous materials. STA-LOK® II couplers meet the Coast Guard ASTM 1122-87 specifications for Quick Disconnect Couplers.
Features & Applications:
  • SLB cam arms are made of Brass.
  • Pins, rings & the lock plate in STA-LOK® II couplings are 300 series Stainless Steel.
  • Good corrosion resistance, less expensive than stainless steel. Softer and easier to thread than stainless steel and forms tight seals.
  • Ideal for use with water. Can also be used with hydraulic oil, coolants, gasoline, and petroleum products.
  • Made in the USA
Part
Name		 Item # Coupler
Size		 Adapter
Size		 Max. Allowable
Working Press.
(PSI)*
15CX20A SLII 62261520L2 1-1/2" 2" 250 PSI
20CX15A SLII 62262015L2 2" 1-1/2" 250 PSI
20CX30A SLII 62262030L2 2" 3" 200 PSI
20CX40A SLII 62262040L2 2" 4" 150 PSI
25CX20A SLII 62262520L2 2-1/2" 2" 200 PSI
30CX40A SLII 62263040L2 3" 4" 150 PSI
40CX30A SLII 62264040L2 4" 3" 150 PSI
40CX60A SLII 62264060L2 4" 6" 75 PSI

*Above maximum allowable working pressures are based on operating temperatures less than 100°F.

PT-Coupling

PT Coupling is a renowned manufacturer of Cam & Groove fittings, Punch-Lok banding, and clamps for industrial hoses. Established in 1951, the company offers a range of products made from different materials and is known for their innovative proprietary Punch-Lok design. PT Coupling's products are trusted by customers worldwide in various industries, such as agriculture, construction, and mining. With a commitment to quality and customer service, PT Coupling continues to be a leading producer of industrial hose fittings.
