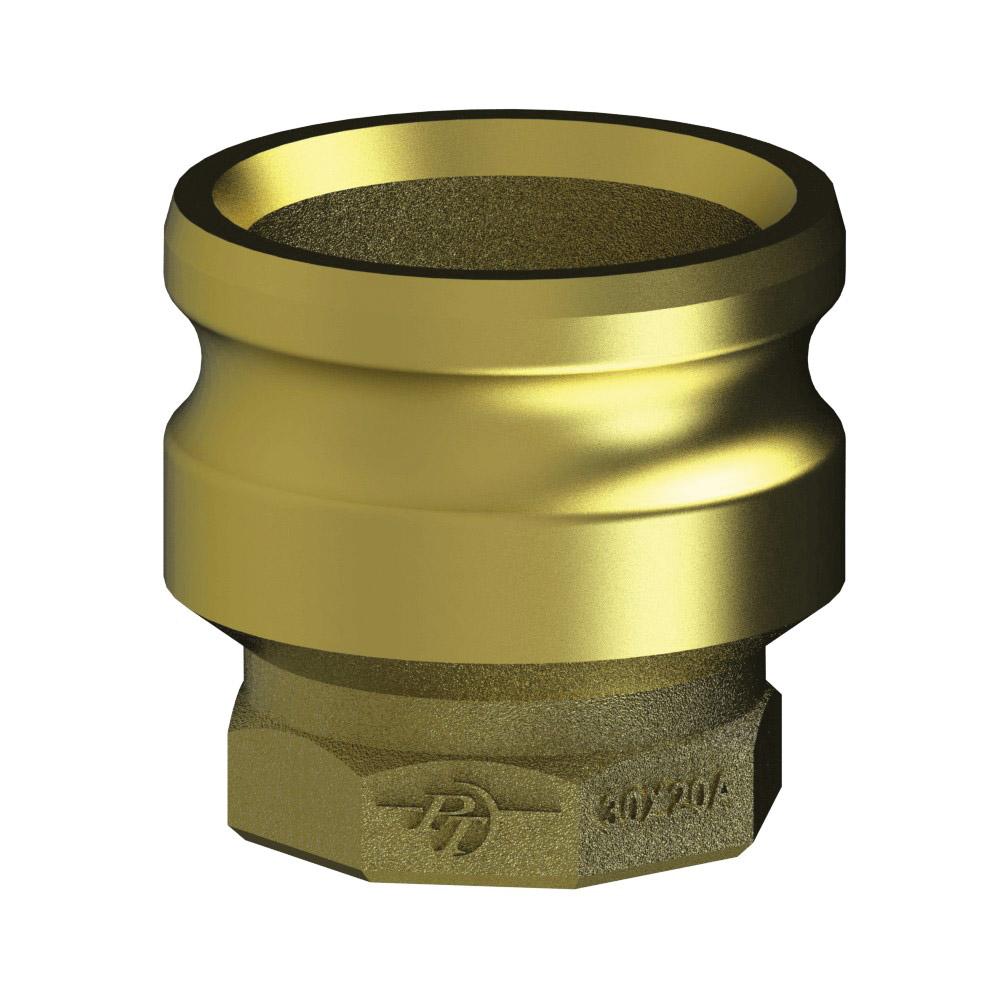

62144030 (40X30A) by PT-Coupling | Reducing Cam & Groove Adapter | Type A | 4" Adapter x 3" Female NPT | Brass
PT Coupling
Reducing Cam & Groove (Camlock) Adapter | Type A | Adapter x Female NPT | Brass
Use with water, hydraulic oil, coolants, gasoline, and petroleum products.
Made in the USA
| Buy More, Save More! | |
| Quantity | Price Each |
| 5–19 | $202.15 |
| 20–59 | $182.79 |
| 60+ | $161.29 |
Discounts applied in cart/checkout.
Product Data:
Shape:
Straight
Cam & Groove Type:
Type A
Ends Configuration:
Material(s):
| Features & Applications: | |||
|---|---|---|---|
|
| Part Name |
Item # | Adapter Size |
Female NPT Threads |
Max. Allowable Working Press. (PSI)* |
|---|---|---|---|---|
| 15X20A | 62141520 | 1-1/2" | 2" | 250 PSI |
| 20X15A | 62142015 | 2" | 1-1/2" | 250 PSI |
| 20X30A | 62142030 | 2" | 3" | 200 PSI |
| 30X20A | 62143020 | 3" | 2" | 200 PSI |
| 30X40A | 62143040 | 3" | 4" | 150 PSI |
| 40X30A | 62144030 | 4" | 3" | 150 PSI |
*Above maximum allowable working pressures are based on operating temperatures less than 100°F.
