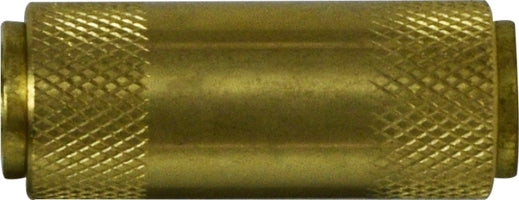

621000 by Midland | DOT Push-In Fitting | Union | 5/8" Tube OD | Brass

621000 by Midland | DOT Push-In Fitting | Union | 5/8" Tube OD | Brass

Sale price$21.67
Buy more, save moreDiscounts applied in cart/checkout.

SPECIFICATIONS

Working Pressure: Vacuum to 150 PSI Temperature Range: -40°F to 200° F ( -40°C to +93°C )
Features:
  • Fast Assembly: No tools required. Simply push tubing in. Saves up to 75% of assembly time compared to standard air compression fittings. No loose parts to handle.
  • Fast Disconnect: Hold the collet collar with two fingers and pull out tube. No tools required.
  • Reusable: Can be connected and disconnected several times.
  • Reliable Sealing: Using recommended tubing, full sealing is guaranteed.
  • Versatility: Buna N O'ring standard. Viton and others available per request. Secure tube retention. Pulling on tubing only serves to tighten the connection.
  • Pre-Applied Teflon® based pipe sealant on all male pipe threads, saving customer additional labor.
  • Full Flow Design
Materials:
  • Brass
  • "O" Ring: Buna - Nitrile (90 Durometer) EP (Ethylene Propylene)
Crossover Series:
AQ62DOT DQ62 62PMT 1862 DQ62DOT
Part Number Tube OD Approx. Weight
(Lbs.)
620532 5/32" 0.06
620400 1/4" 0.06
620600 3/8" 0.13
620604 3/8" x 1/4" 0.15
620800 1/2" 0.19
621000 5/8" 0.30
621200 3/4" 0.44

Additional Product Data:

Shape:

Straight

Ends Configuration:
  • 5/8in Push-to-Connect
  • 5/8in Push-to-Connect
  • Some Ends Match
Material(s):
  • Brass

Midland Industries

Midland Industries is a family of brands recognizable industry wide. Midland is a supplier of brass fittings, valves, and accessories for hose, pipe and tube in brass, bronze, stainless steel, steel, malleable iron, and plastics.
