62080-3/4-1/2 by AIGNEP | 60/62 Series | Reducer | 3/4 Male BSPT x 1/2" Female BSPP | Stainless Steel
| Buy More, Save More! | |
| Quantity | Price Each |
| 10–39 | $21.36 |
| 40–79 | $19.31 |
| 80+ | $17.04 |
Discounts applied in cart/checkout.
Product Data:
Series:
Shape:
Straight
Ends Configuration:
Material(s):
Reducer - BSPP
Pressure Rating: Vacuum-250 PSI
Temperature Range: -166 ° F - 572 ° F
Media: Compressed Air Fluid for food and Chemical Industry compatible with component specifications
Body: Stainless Steel
Temperature Range: -166 ° F - 572 ° F
Media: Compressed Air Fluid for food and Chemical Industry compatible with component specifications
Body: Stainless Steel

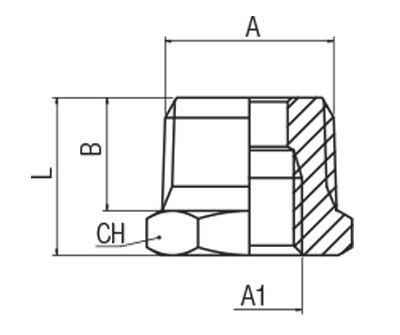

| Product Number | A BSPP | A1 BSPP | B | L | CH |
|---|---|---|---|---|---|
| 62080-1/4-1/8 | 1/4" | 1/8" | 11 mm | 16 mm | 14 mm |
| 62080-3/8-1/8 | 3/8" | 1/8" | 11.5 mm | 16.5 mm | 17 mm |
| 62080-3/8-1/4 | 3/8" | 1/4" | 11.5 mm | 16.5 mm | 17 mm |
| 62080-1/2-1/4 | 1/2" | 1/4" | 14 mm | 19.5 mm | 22 mm |
| 62080-1/2-3/8 | 1/2" | 3/8" | 14 mm | 19.5 mm | 22 mm |
| 62080-3/4-1/2 | 3/4" | 1/2" | 16.5 mm | 23.5 mm | 27 mm |
