62040-1/8"-1/4 by AIGNEP | 60/62 Series | Reducer | 1/8" BSPT Male x 1/4" BSPP Female
| Buy More, Save More! | |
| Quantity | Price Each |
| 10–39 | $15.06 |
| 40–79 | $13.62 |
| 80+ | $12.02 |
Discounts applied in cart/checkout.
Product Data:
Series:
Shape:
Straight
Ends Configuration:
Material(s):
Reducer - Male BSPT x Female BSPP
Pressure Rating: Vacuum-250 PSI
Temperature Range: -166 ? F - 572 ? F
Media: Compressed Air Fluid for food and Chemical Industry compatible with component specifications
Body: Stainless Steel
Temperature Range: -166 ? F - 572 ? F
Media: Compressed Air Fluid for food and Chemical Industry compatible with component specifications
Body: Stainless Steel

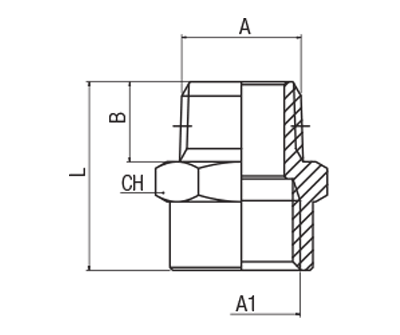

| Product Number | A1 BSPP | A BSPT | B | L | CH |
|---|---|---|---|---|---|
| 62040-1/8-1/4 | 1/4" | 1/8" | 7.5 mm | 22 mm | 17 mm |
| 62040-1/4-3/8 | 3/8" | 1/4" | 11 mm | 27 mm | 22 mm |
| 62040-1/4-1/2 | 1/2" | 1/4" | 11 mm | 30 mm | 24 mm |
| 62040-3/8-1/2 | 1/2" | 3/8" | 11.5 mm | 30.5 mm | 24 mm |
| 62040-1/2-3/4 | 3/4" | 1/2" | 14 mm | 30.5 mm | 32 mm |
